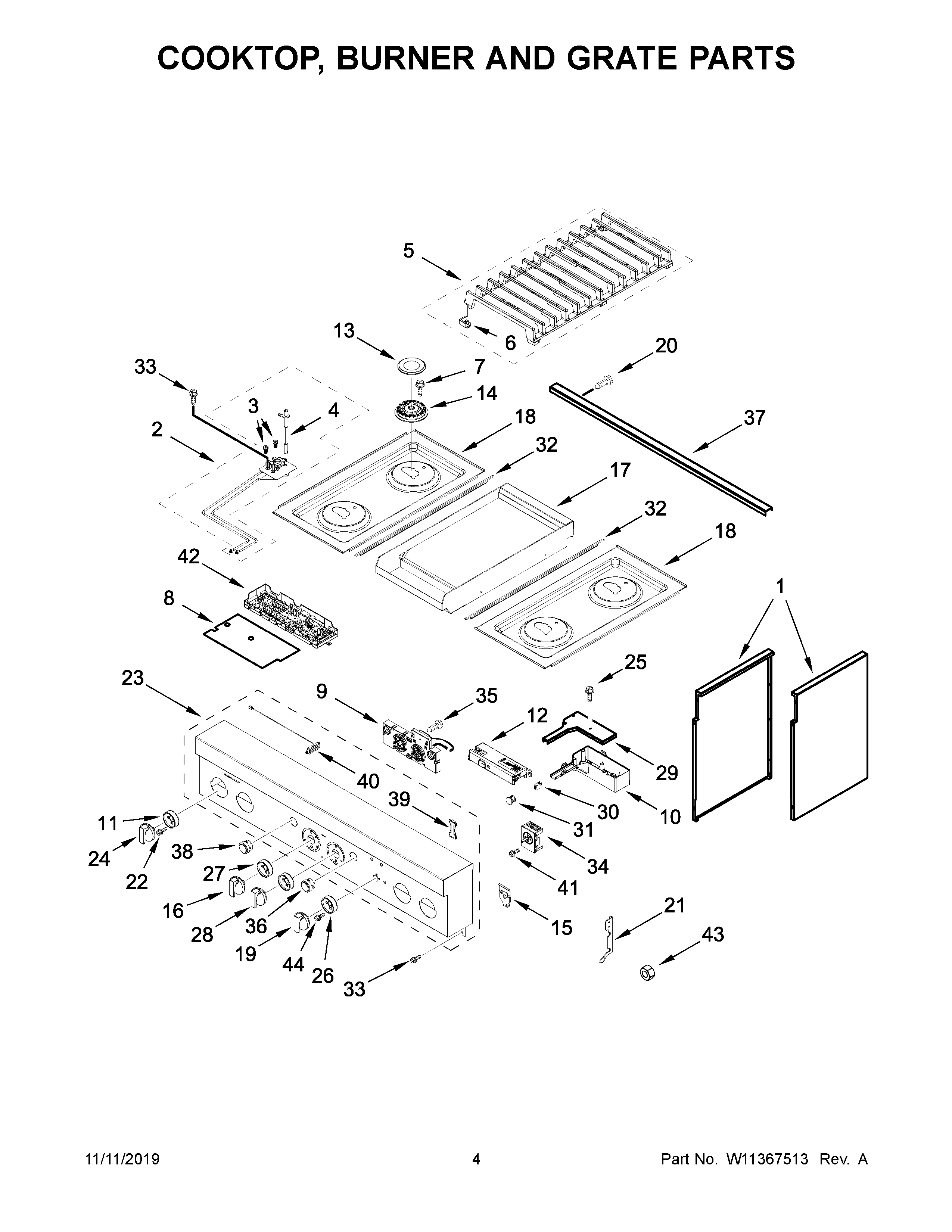

JDSP536HM00 03 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	MAY W11106881
1A	MAY W11106880
2	MAY W10892793
2A	MAY W10892494
2C	MAY W10892730
2B	MAY W10892475
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3D	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3C	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3B	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3A	ORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5A	ASSEMBLY, GRATE (BLACK) (RIGHT)
5	ASSEMBLY, GRATE (BLACK) (LEFT)
6	BUMPER, GRATE
7	MAY W11323260
8	BARRIER, APPLIANCE MANAGER
9	MAY W11095710
10	COVER, WIFI OUTER
11	BEZEL, COOKTOP
12	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
13	CAP, BURNER (BLACK (SET OF 4))
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15	SPRING CLIP, RANGE
16	MAY W11343043
17	ASSEMBLY, GRIDDLE MODULE
18	PANEL, COOKTOP (BLACK) (LEFT)
18A	PANEL, COOKTOP (BLACK) (RIGHT)
19	KNOB, GRIDDLE (STAINLESS)
20	SCREW (8BX3/8-NI)
21	BRACKET,CONSOLE (LEFT)
21A	BRACKET,CONSOLE (RIGHT)
22	MAY W10919387
23	MAY W11253774
24	KNOB, BURNER (STAINLESS)
25	SCREW
26	BEZEL, GRIDDLE
27	BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
28	KNOB, OVEN TEMPERATURE (STAINLESS)
29	COVER, WIFI INNER
30	LIGHT, INDICATOR HOUSING
31	MAY W10294500
32	L-STRIP
33	MAY 7101P426- 60
34	CONTROL, GRIDDLE
35	SCREW
36	BUTTON ASSEMBLY, OVEN START
37	MAY W11156416
38	BUTTON ASSEMBLY, OVEN LIGHT
39	ASSEMBLY, LIGHT PIPE
40	ANTENNA, WIFI
41	Screw
42	MAY W11100269
43	SCREW
44	SCREW
