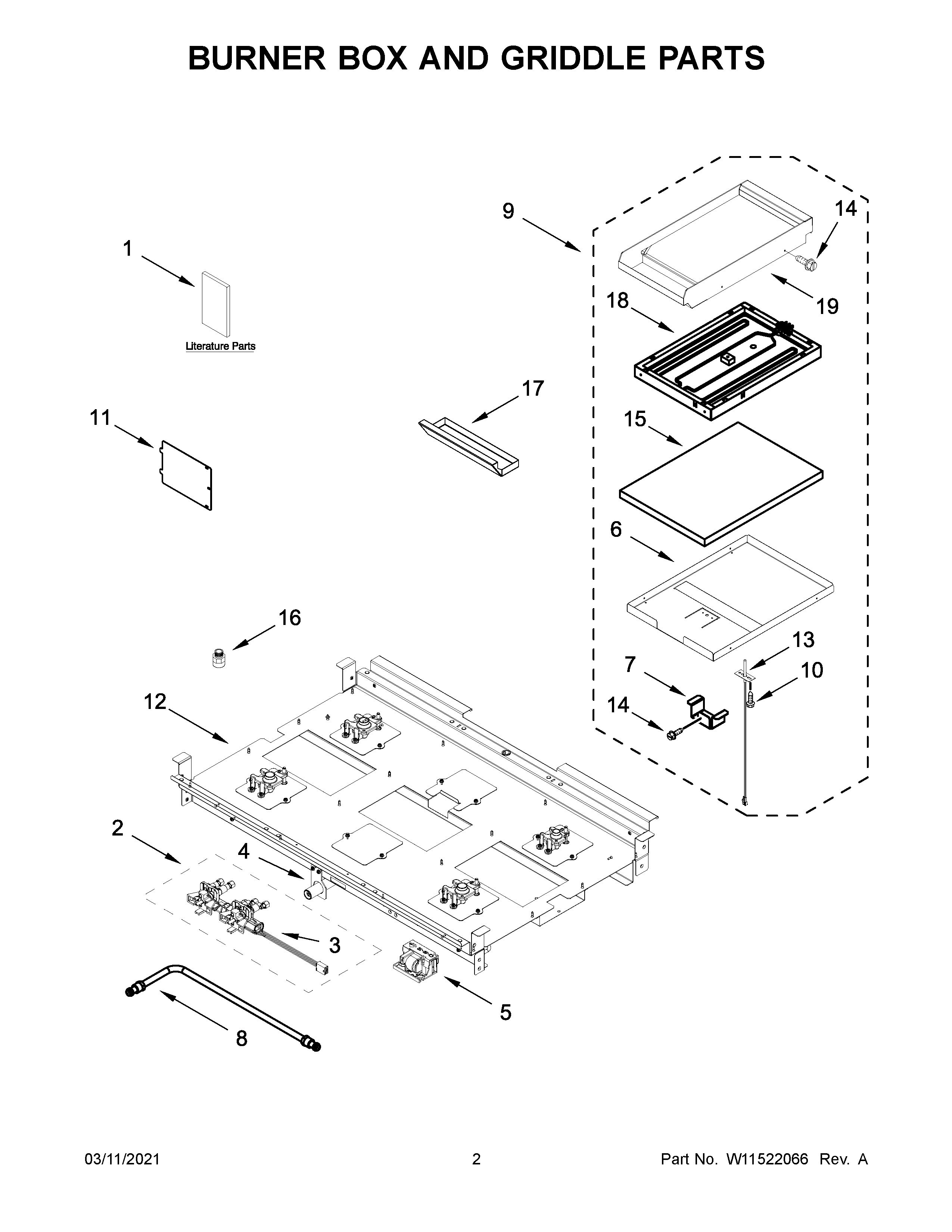

JDSP536HM01 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	W11317791 Whirlpool Wire Harness
NI	CORD, POWER
NI	BOARD, TRANSIENT SUPPRESSOR
NI	WP9759877 Whirlpool Retainer
NI	W10780278 Whirlpool Wire Harness
NI	W11200325 Whirlpool Wire Harness
NI	W11317787 Whirlpool Wire Harness
NI	HARNESS, COOKTOP
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	W11428599 Whirlpool Conversion Kit
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	SCREW, ANTI-TIP KIT
NI	HARNESS, MAIN (36")
1	GUIDE, USE AND CARE
1A	INSTRUCTIONS, INSTALLATION
1E	SHEET, TECH
1B	GUIDE, QUICK START
1D	DIAGRAM, WIRING
1C	GUIDE, INTERNET CONNECTIVITY
2	W11333175 Whirlpool Manifold Assembly
2A	W11333176 Whirlpool Manifold
3	W11320016 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	TRAY, GRIDDLE INSULATION
7	BRACKET, GRIDDLE-RTD
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
9	W11602621 Whirlpool Module
10	W10491985 Whirlpool Screw
11	W10115843 Whirlpool Access Cover
13	W11319618 Whirlpool Sensor
14	W10162096 Whirlpool Screw
15	INSULATION, GRIDDLE
16	4453116 Whirlpool Oven Adapter
17	W10276497 Whirlpool Drip Tray
18	W11319602 Whirlpool Grille Element
19	W11602622 Whirlpool Griddle Assembly
