JDSP536HM01 06 – VENTING PARTS

JDSP536HM01 06 – VENTING PARTS

Written by

in

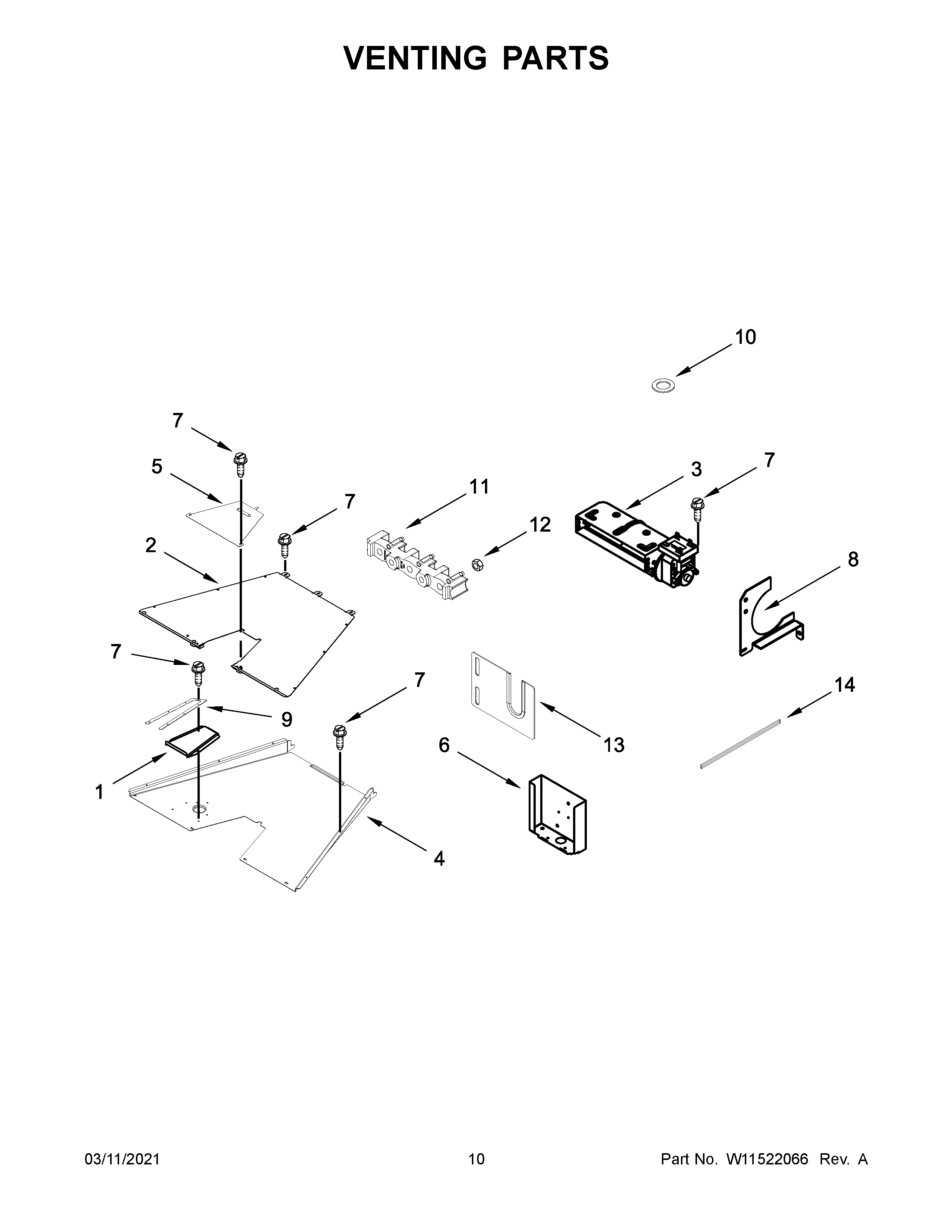

JDSP536HM01 06 – VENTING PARTS

Products

PositionProduct
1SLOPE, EXHAUST VENT (30")
2VENT, COOLING TOP (30 IN)
3W11248652 Whirlpool Blower
4VENT, COOLING BOTTOM (30 IN)
5PLATE, COOLING LATCH
6BOX, TERMINAL
7SCREW
8BRACKET, BLOWER MOUNT
9W10270397 Whirlpool Vent Seal
10SEAL, CHIMNEY
11BLOCK, TERMINAL
12WP3400029 Whirlpool Dishwasher Nut
13COVER, CHANNEL
14W11175143 Whirlpool Gasket
