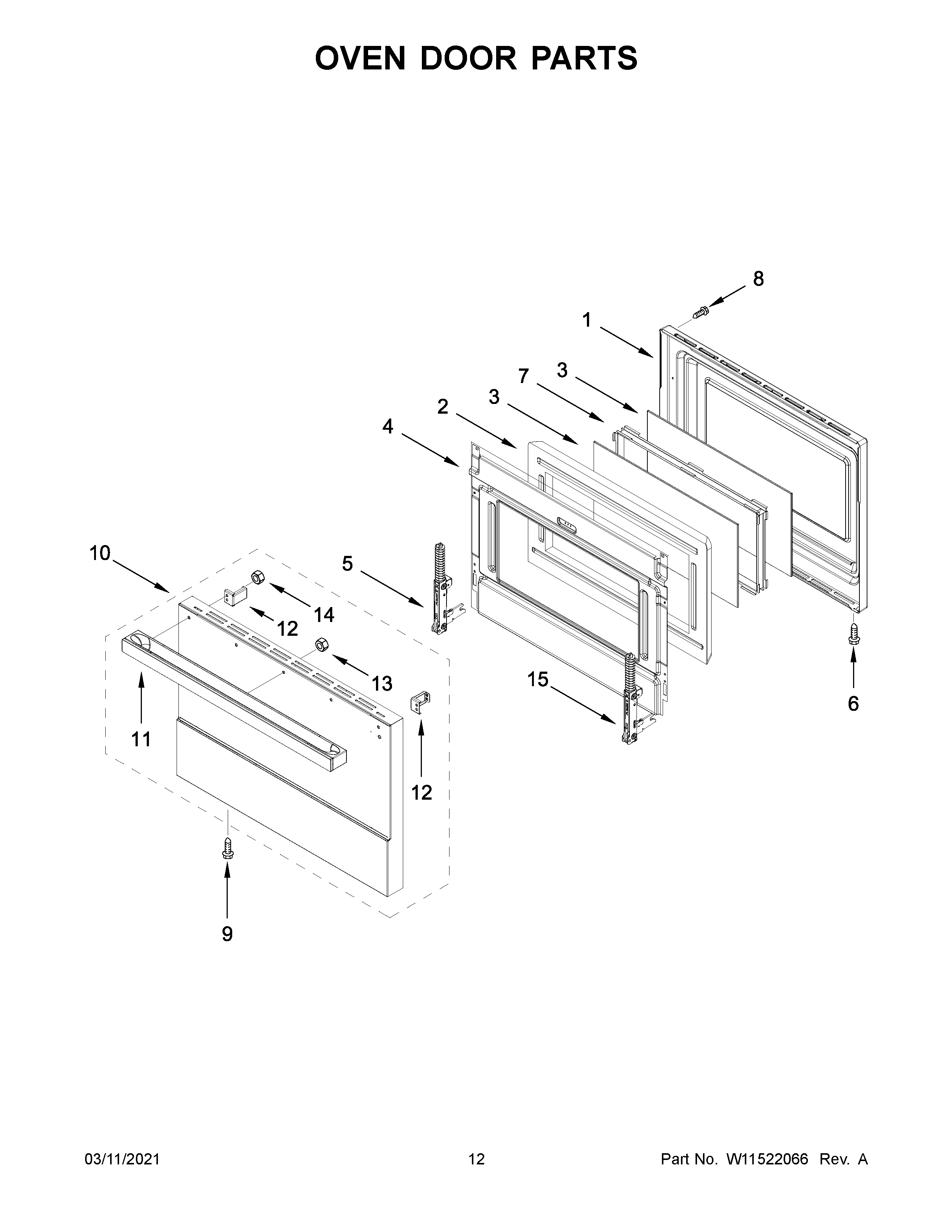

JDSP536HM01 07 – OVEN DOOR PARTS

Products

Position	Product
1	W11334152 Whirlpool Glass Frame
2	W11688331 Whirlpool Insulation
3	W11334153 Whirlpool Door Glass
4	W11194820 Whirlpool Retainer
5	W11096984 Whirlpool Door Hinge
6	W11193480 Whirlpool Screw
7	W11194814 Whirlpool Window Frame
8	W11712404 Whirlpool Screw
9	W10162096 Whirlpool Screw
10	W11315587 Whirlpool Door Glass
11	HANDLE, DOOR
12	W11317894 Whirlpool Mounting Bracket
13	NUT
14	NUT
15	W11096983 Whirlpool Door Hinge
