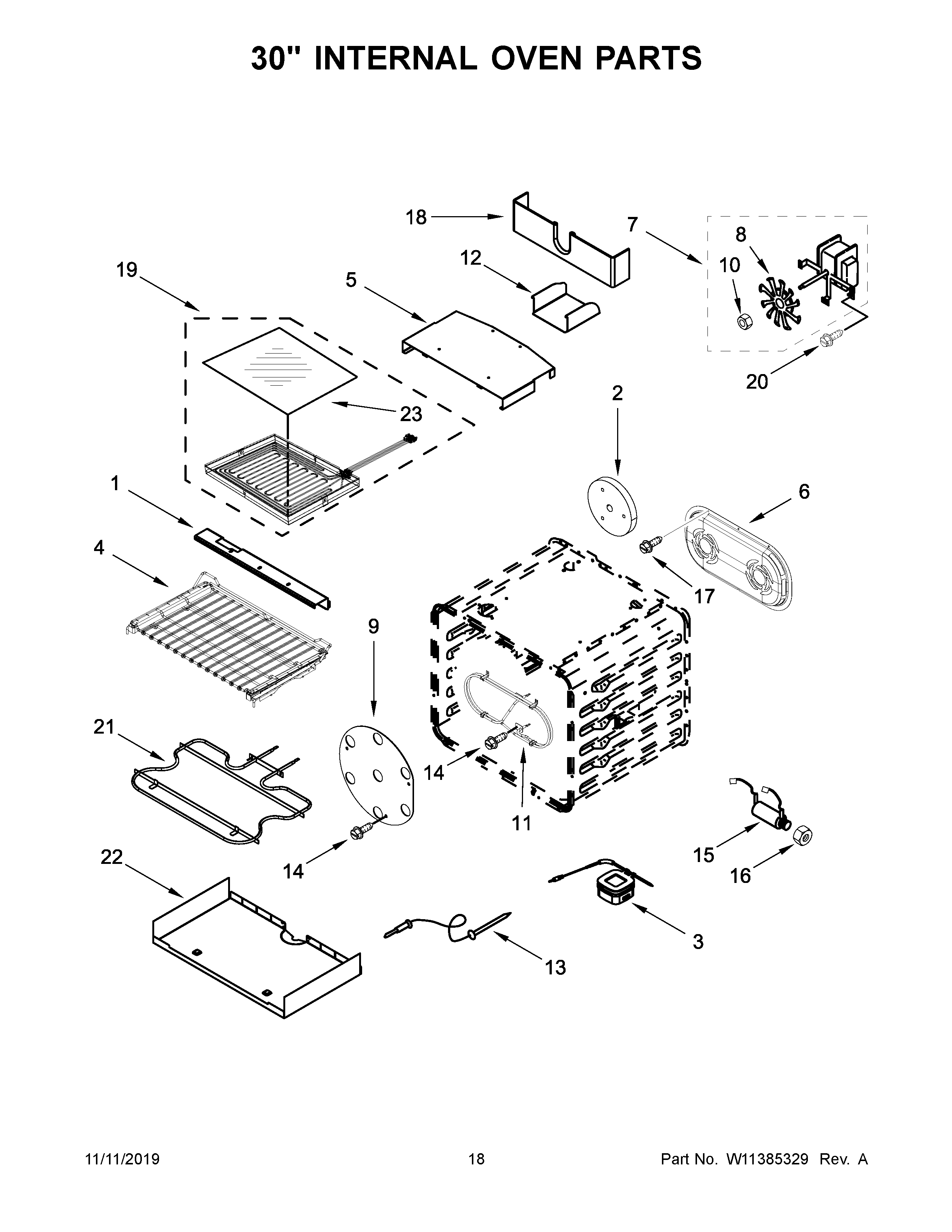

JDSP548HL00 10 – 30″ INTERNAL OVEN PARTS

Products

Position	Product
1	BRACKET, BROIL FRONT
2	MAY W10282821
3	PROBE, WIRELESS MEAT
4	RACK, OVEN (SLIDING)
5	BRACKET, BROIL TOP
6	BAFFLE, CONVECTION
7	FAN, CONVECTION
8	BLADE, FAN
9	COVER, FAN
10	MAY W10631504
11	MAY W10116434
12	COVER, BROIL TERMINAL
13	PROBE-MEAT
14	MAY 4449154
15	MAY 9755543
16	NUT, LOCKING
17	SCREW
18	COVER PLATE, TERMINAL HOLE
19	ELEMENT, BROIL
20	SCREW
21	MAY W10115995
22	TRAY, HIDDEN BAKE
23	GLASS, BROIL ELEMENT
