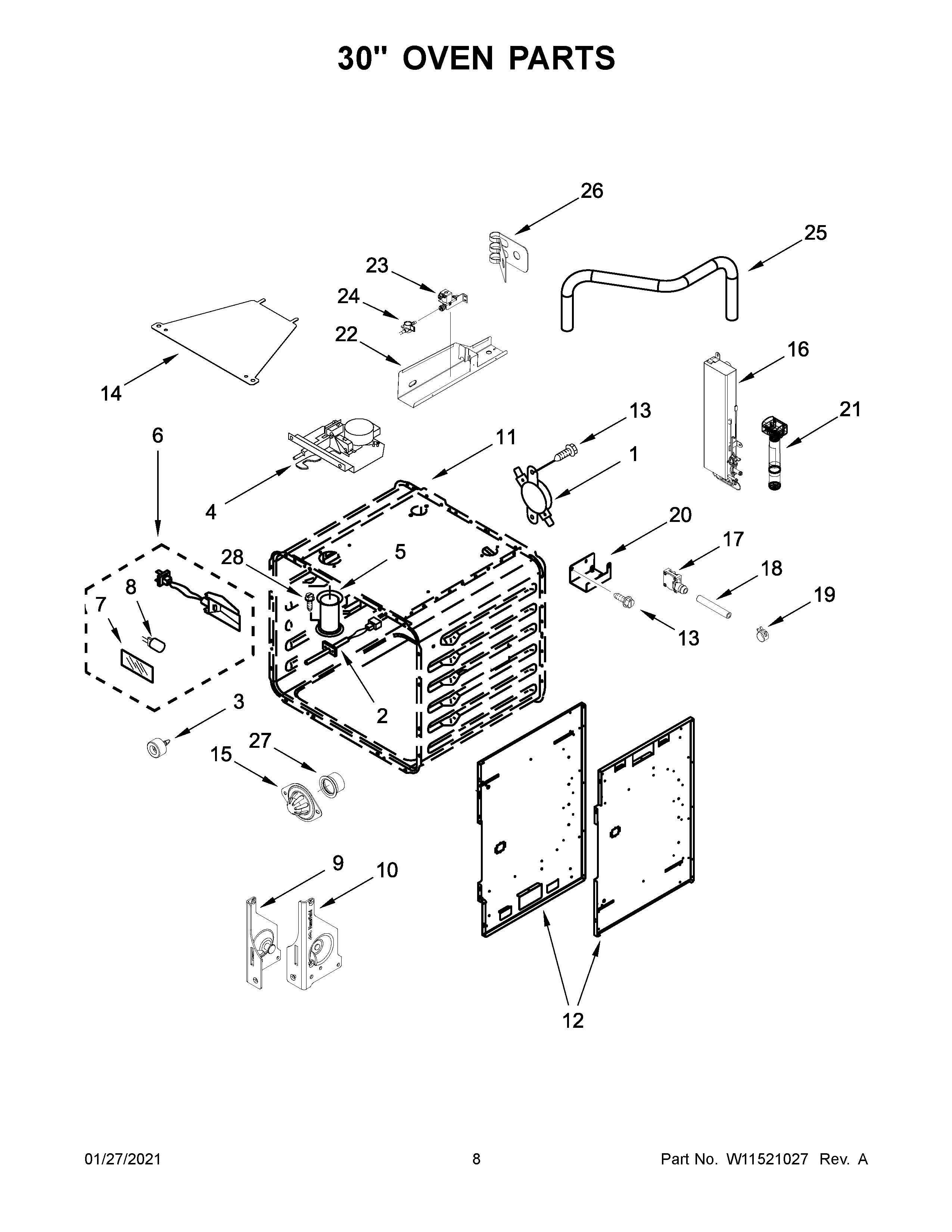

JDSP548HL01 05 – 30″ OVEN PARTS

Products

Position	Product
NI	WP3400968 Whirlpool Nut
NI	INSULATION, BACK (30 IN)
NI	INSULATION, WRAP (30 IN)
NI	CABINET (NOT A SERVICEABLE PART)
1	WP4449751 Whirlpool Range Oven Thermostat Fix
2	W10859573 Whirlpool Range Oven Temperature Sensor
3	WPW10351278 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	W11233684 Whirlpool Oven Light Assembly
7	W10169756 Whirlpool Light Lens
8	BULB-LIGHT
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12	W11320145 Whirlpool Cabinet Panel
12A	CHASSIS, SIDE (RIGHT)
13	SCREW
14	W10160858 Whirlpool Lid Cover
15	COVER, BOILER ORIFICE
16	8186352 Whirlpool Boiler
17	W10194453 Whirlpool Switch
18A	W10116067 Whirlpool Hose
18	Hose (includes clamp)
19A	WP489503 Whirlpool Refrigerator Clamp
20	BRACKET, STEAM VALVE
21	WPW10049700 Whirlpool Filter
22	ENCLOSEURE, STEAM VALVE
23	Valve, Solenoid
24	WPW10076760 Whirlpool Sensor
25	TUBE, COPPER STEAM
26	WP488366 Whirlpool Refrigerator Clamp
27	ORIFICE, BOILER SLIP FIT
28	SCREW
