JDSP548HL01 07 – VENTING PARTS

JDSP548HL01 07 – VENTING PARTS

Written by

in

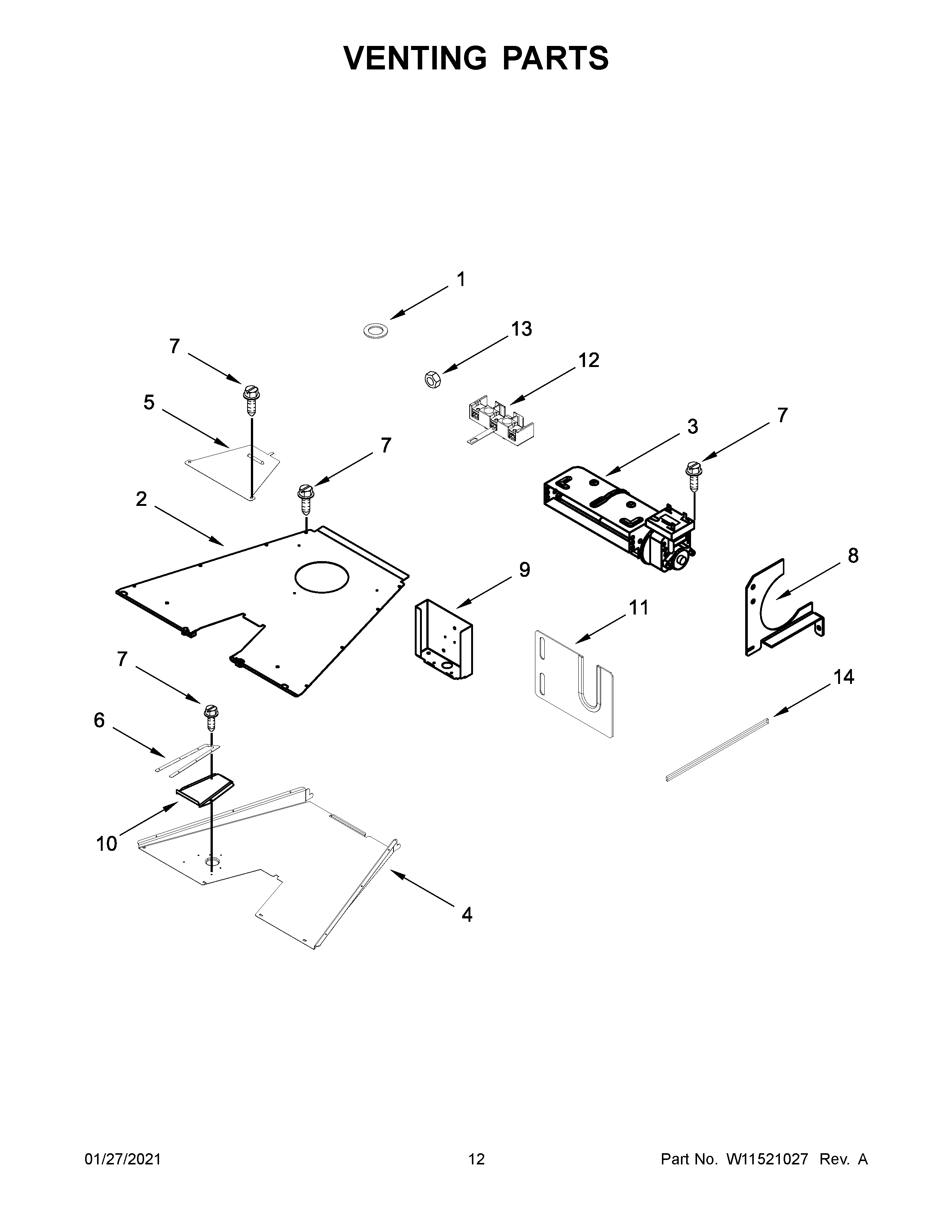

JDSP548HL01 07 – VENTING PARTS

Products

PositionProduct
1SEAL, CHIMNEY
2VENT, COOLING TOP (30 IN)
2AVENT, COOLING TOP (18 IN)
3W11248652 Whirlpool Blower
4AVENT, COOLING BOTTOM (18 IN)
4VENT, COOLING BOTTOM (30 IN)
5PLATE, COOLING LATCH
6W10270397 Whirlpool Vent Seal
6AW10270402 Whirlpool Seal Assembly
7SCREW
8BRACKET, BLOWER MOUNT
9BOX, TERMINAL
10ASLOPE, EXHAUST VENT (18")
10SLOPE, EXHAUST VENT (30")
11COVER, CHANNEL
12BLOCK, TERMINAL
13WP3400029 Whirlpool Dishwasher Nut
14W11175143 Whirlpool Gasket
