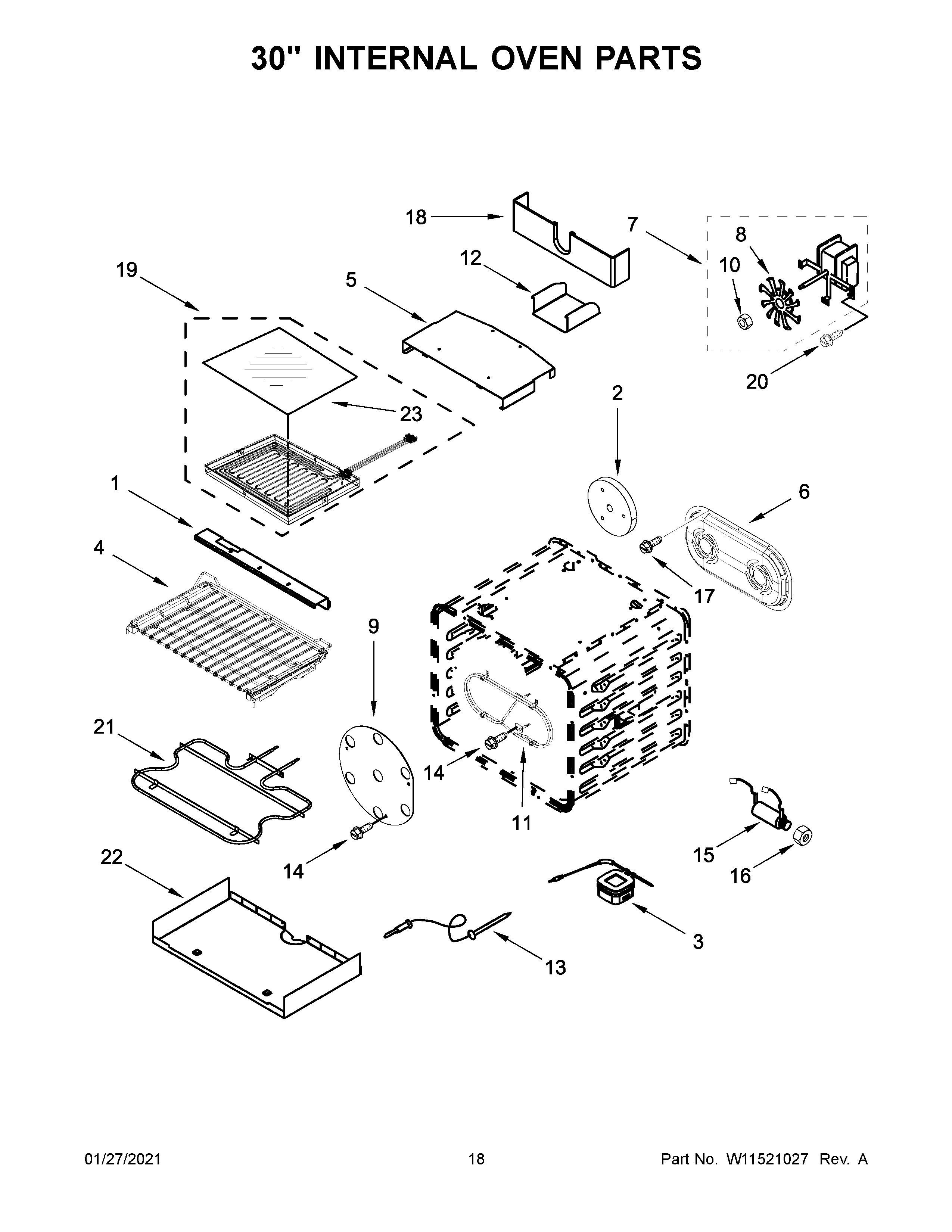

JDSP548HL01 10 – 30″ INTERNAL OVEN PARTS

Products

Position	Product
1	BRACKET, BROIL FRONT
2	W11688507 Whirlpool Insulation
3	W11318341 Whirlpool Meat Probe
4	W11563568 Whirlpool Oven Rack
5	BRACKET, BROIL TOP
6	W11232487 Whirlpool Convection Baffle
7	W11685616 Whirlpool Fan Motor
8	W11320150 Whirlpool Convection Fan
9	W10261523 Whirlpool Plate
10	W10794042 Whirlpool Nut
11	W10116434 Whirlpool Element
12	COVER, BROIL TERMINAL
13	WP9755542 Whirlpool Oven Meat Probe
14	WP4449154 Whirlpool Screw
15	8186589 Whirlpool Jack Probe
16	W11231343 Whirlpool Lock Nut
17	SCREW
18	COVER PLATE, TERMINAL HOLE
19	W11210530 Whirlpool Broil Element
20	W10850807 Whirlpool Screw
21	ELEMENT, HIDDEN BAKE
22	TRAY, HIDDEN BAKE
23	GLASS, BROIL ELEMENT
