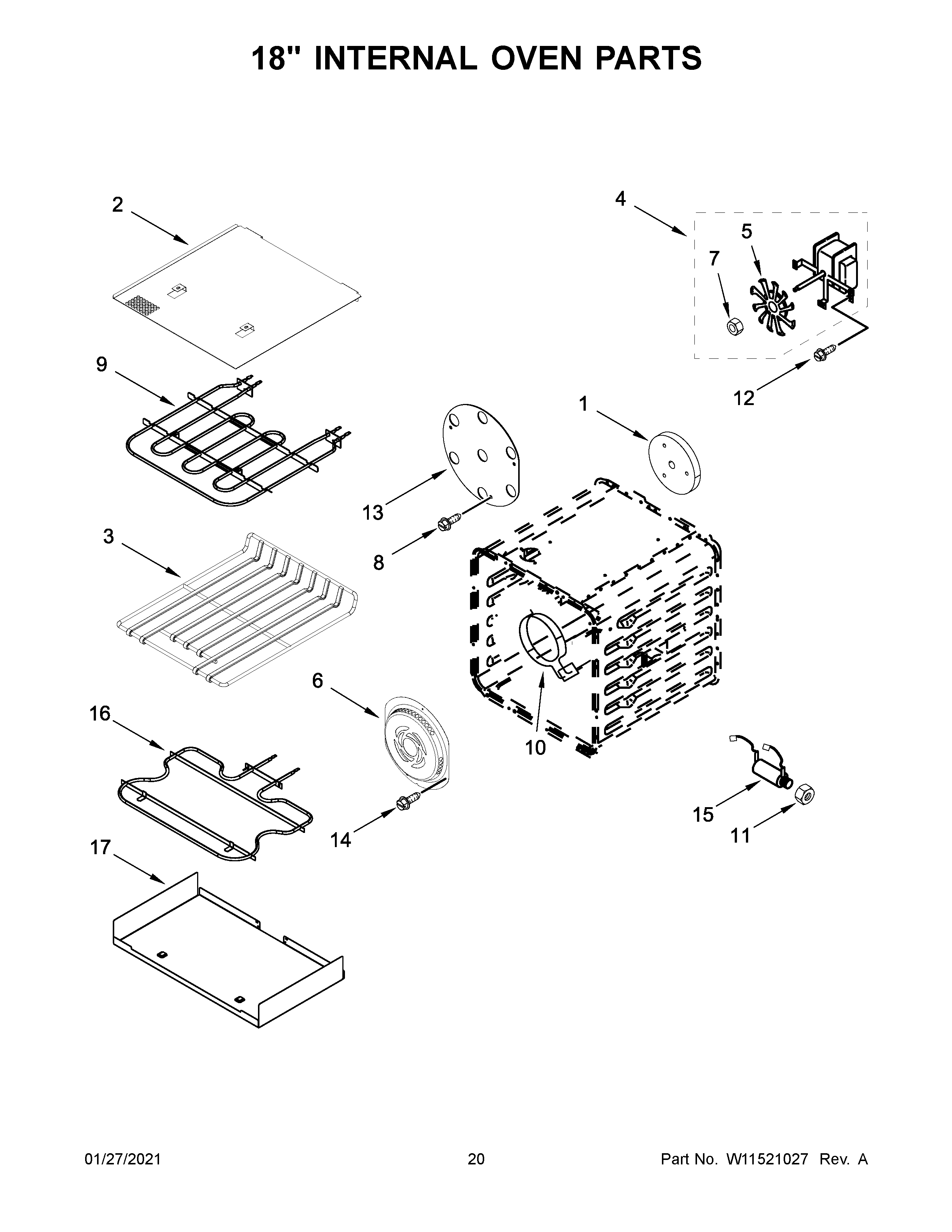

JDSP548HL01 11 – 18″ INTERNAL OVEN PARTS

Products

Position	Product
1	W11688507 Whirlpool Insulation
2	W10160855 Whirlpool Heat Shield
3	W11111351 Whirlpool Oven Rack
4	W11685616 Whirlpool Fan Motor
5	W11320150 Whirlpool Convection Fan
6	COVER, FAN
7	W10794042 Whirlpool Nut
8	WP4449154 Whirlpool Screw
9	W10116010 Whirlpool Broil Element
10	W11643125 Whirlpool Element
11	W11231343 Whirlpool Lock Nut
12	W10850807 Whirlpool Screw
13	W10261523 Whirlpool Plate
14	SCREW
15	8186589 Whirlpool Jack Probe
16	ELEMENT, HIDDEN BAKE
17	TRAY, HIDDEN BAKE
