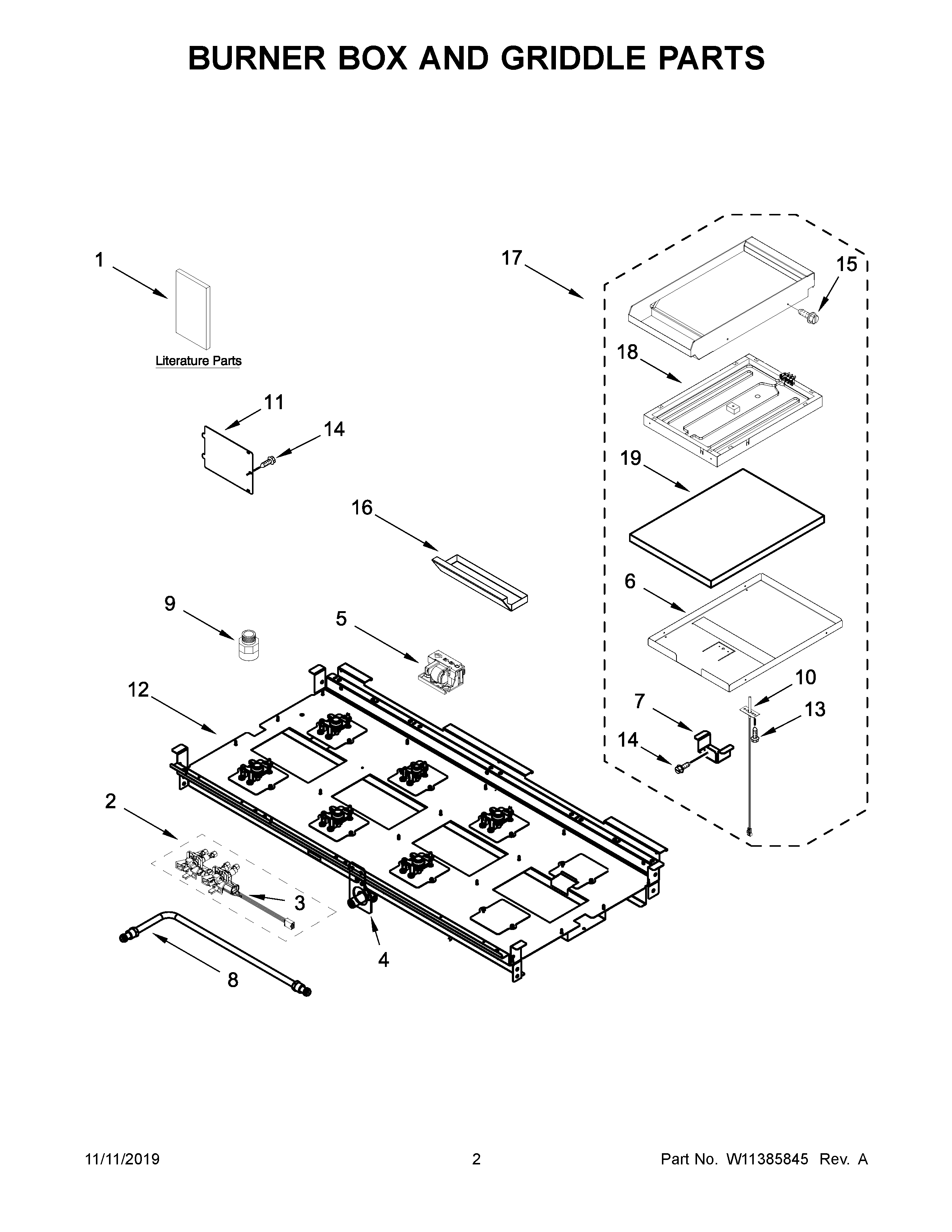

JDSP548HM00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	SCREW, ANTI-TIP KIT
NI	HARNESS, DOOR LOCK
NI	HARNESS, COOKTOP
NI	HARNESS, WIFI
NI	HARNESS, COMMUNICATION
NI	CORD, POWER
NI	HARNESS, GRIDDLE
NI	LINER (NOT A SERVICEABLE PART)
NI	SCREW
NI	BOARD, TRANSIENT SUPPRESSOR
NI	BRACKET, ANTI-TIP
NI	MAY W11200316
NI	MAY W11200313
NI	KIT, LP CONVERSION
NI	MAY 4450800
1D	SHEET, TECH
1C	MAY W11202366
1B	GUIDE, INTERNET CONNECTIVITY
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE AND CARE
2	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2B	ASSEMBLY, VALVE MANIFOLD (LEFT FRONT AND LEFT REAR)
2A	ASSEMBLY, VALVE MANIFOLD (RIGHT FRONT AND RIGHT REAR)
3	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	BRACKET, MANIFOLD
5	MODULE, SPARK
6	MAY W11330430
7	BRACKET, GRIDDLE-RTD
8B	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
9	ADAPTER, MALE
10	SENSOR, GRIDDLE
11	MAY W10115843
13	MAY 3196160
14	MAY 7101P426- 60
15	Screw
16	DRIP, TRAY GRIDDLE
17	ASSEMBLY, GRIDDLE MODULE
18	ELEMENT, GRIDDLE
19	INSULATION, GRIDDLE
