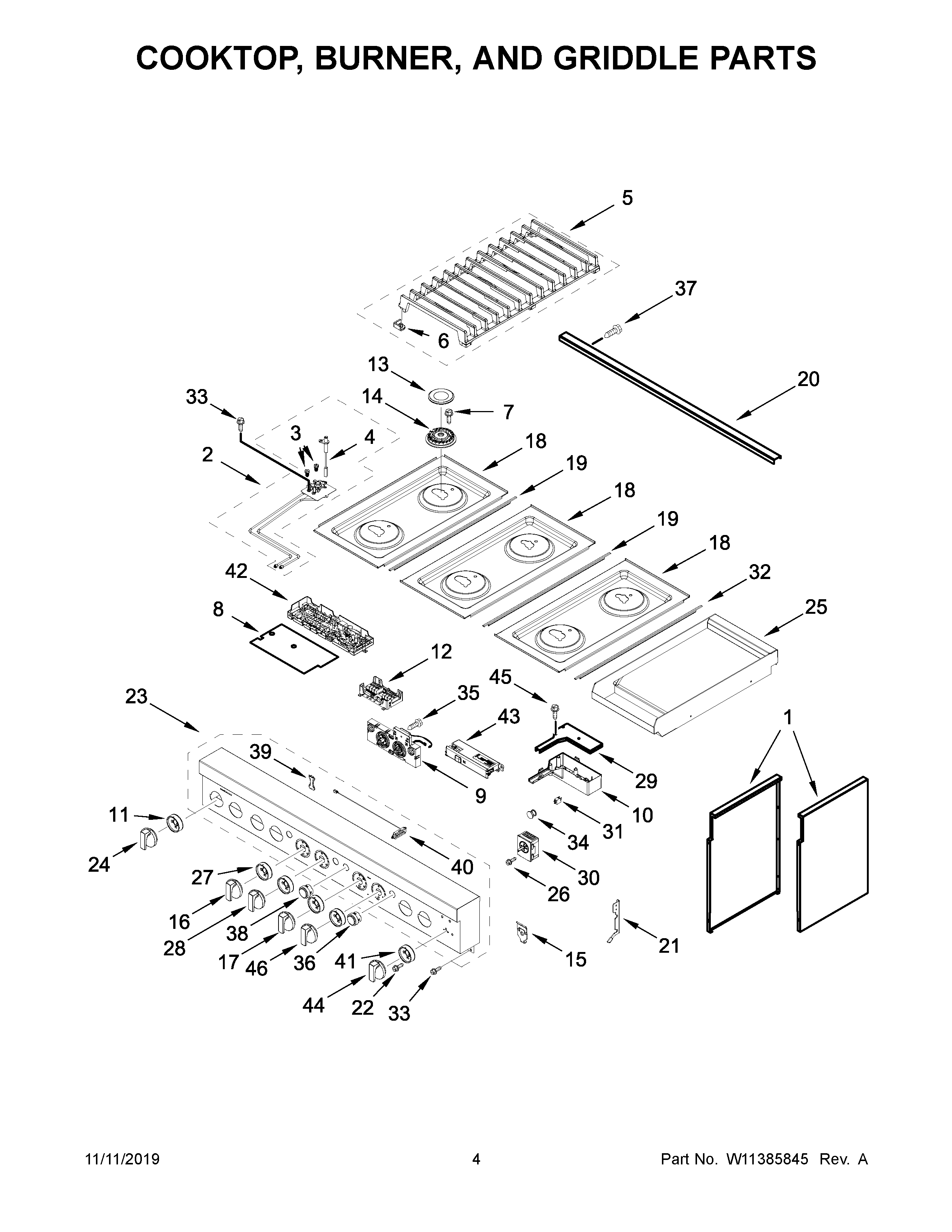

JDSP548HM00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

JDSP548HM00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Written by

in

JDSP548HM00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1PANEL, CABINET SIDE (LEFT)
1APANEL, CABINET SIDE (RIGHT)
2CASSEMBLY, ORIFICE HOLDER (CENTER REAR)
2EASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR)
2AASSEMBLY, ORIFICE HOLDER (LEFT REAR)
2DASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT)
2ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
2BASSEMBLY, ORIFICE HOLDER (LEFT CENTER FRONT)
3DORIFICE, SIMMER (2.0K) (RIGHT REAR)
3CORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3AORIFICE, MAIN (15.4K) (LEFT REAR AND RIGHT FRONT)
4AIGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4BIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5AASSEMBLY, GRATE (BLACK) (LEFT CENTER)
5BASSEMBLY, GRATE (BLACK) (RIGHT)
5ASSEMBLY, GRATE (BLACK) (LEFT)
6BUMPER, GRATE
7MAY W11323260
8BARRIER, APPLIANCE MANAGER
9MAY W11095709
10COVER, WIFI OUTER
11BEZEL, COOKTOP
12MAY W10890116
13CAP, BURNER (BLACK (SET OF 6))
14ASPREADER, FLAME (LOW) (RIGHT REAR)
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15SPRING CLIP, RANGE
16KNOB, OVEN MODE (STAINLESS)
17MAY W11343043
18APANEL, COOKTOP (BLACK) (LEFT CENTER)
18PANEL, COOKTOP (BLACK) (LEFT)
18BPANEL, COOKTOP (BLACK) (RIGHT CENTER)
19TRIM, T-STRIP
20MAY W11156418
21BRACKET,CONSOLE (LEFT)
21ABRACKET,CONSOLE (RIGHT)
22SCREW
23MAY W11253772
24KNOB, BURNER (STAINLESS)
25LINER (NOT A SERVICEABLE PART)
26Screw
27BEZEL, OVEN (FOR 2 OVEN KNOBS) (STAINLESS)
29COVER, WIFI INNER
30CONTROL, GRIDDLE
31LIGHT, INDICATOR HOUSING
32L-STRIP
33MAY 7101P426- 60
34MAY W10294500
35SCREW
36BUTTON ASSEMBLY, OVEN START
37SCREW (8BX3/8-NI)
38BUTTON ASSEMBLY, OVEN LIGHT
39ASSEMBLY, LIGHT PIPE
40ANTENNA, WIFI
41BEZEL, GRIDDLE
42MAY W11100271
43ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
44KNOB, GRIDDLE (STAINLESS)
45SCREW
46KNOB, OVEN TEMPERATURE (STAINLESS)
