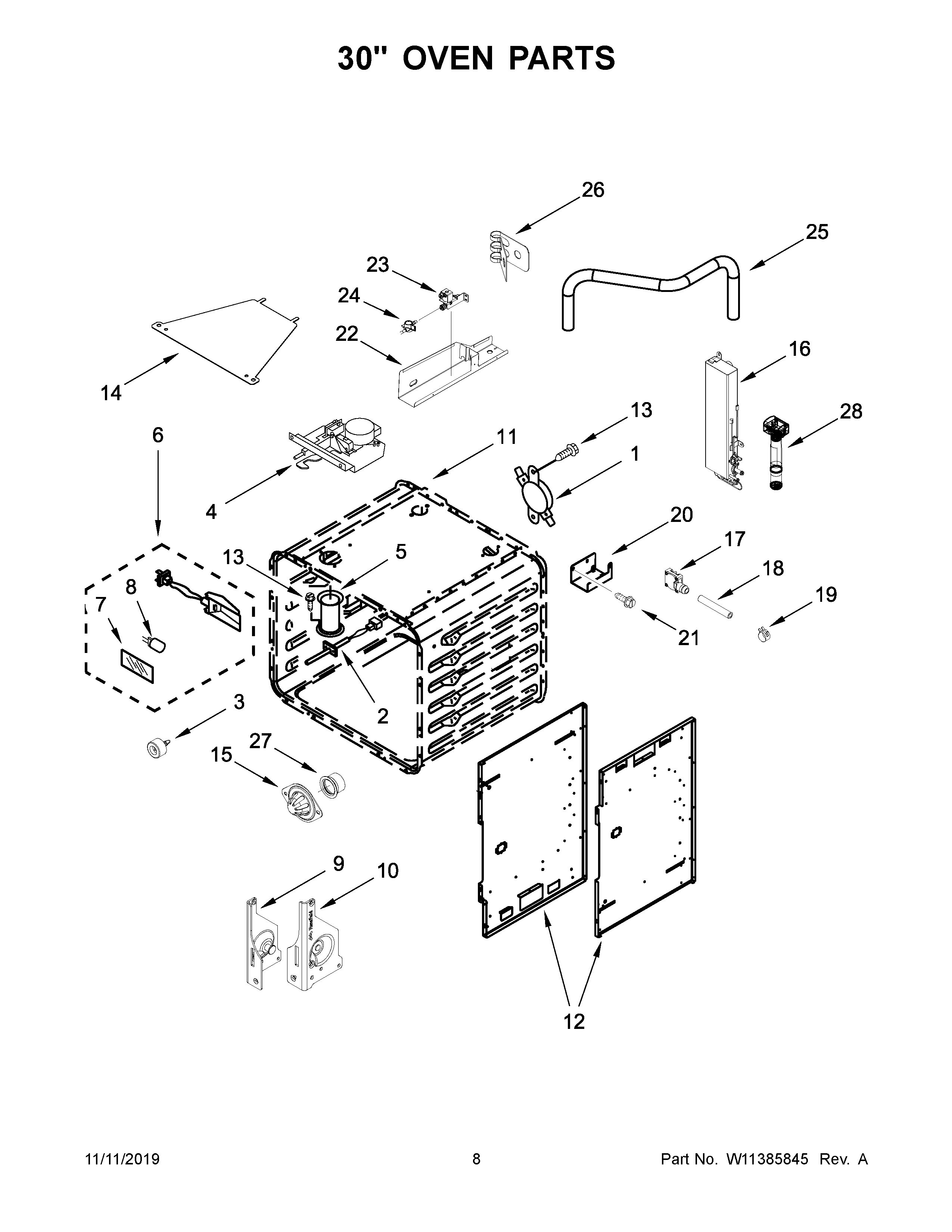

JDSP548HM00 05 – 30″ OVEN PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BACK, 30“
NI	INSULATION, WRAP, 30“
NI	MAY 3400968
1	THERMOSTAT
2	MAY W10622170
3	BUMPER & SCREW
4	LATCH, MOTORIZED
5	TUBE, VENT
6	ASSEMBLY, OVEN LIGHT
7	LENS
8	BULB, OVEN
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12	CHASSIS, SIDE (LEFT)
12A	CHASSIS, SIDE (RIGHT)
13	MAY 7101P426- 60
14	MAY W10160858
15	MAY W11177696
16	MAY W10864671
17	SWITCH, PRESSURE
18	HOSE, SILICONE (TRANSLUCENT)
18A	HOSE, SILICONE (RED)
19A	CLAMP, CRIMP (RED)
19	CLAMP, CRIMP (BLACK)
20	BRACKET, STEAM MOUNT
21	SCREW (ALL BUT CENTER REAR)
22	ENCLOSURE, STEAM VALVE
23	VALVE, SOLENOID
24	SENSOR, CONDUCTIVITY SLIP FIT
25	MAY W11334757
26	Clip, Tube
27	MAY W11092978
28	FILTER
