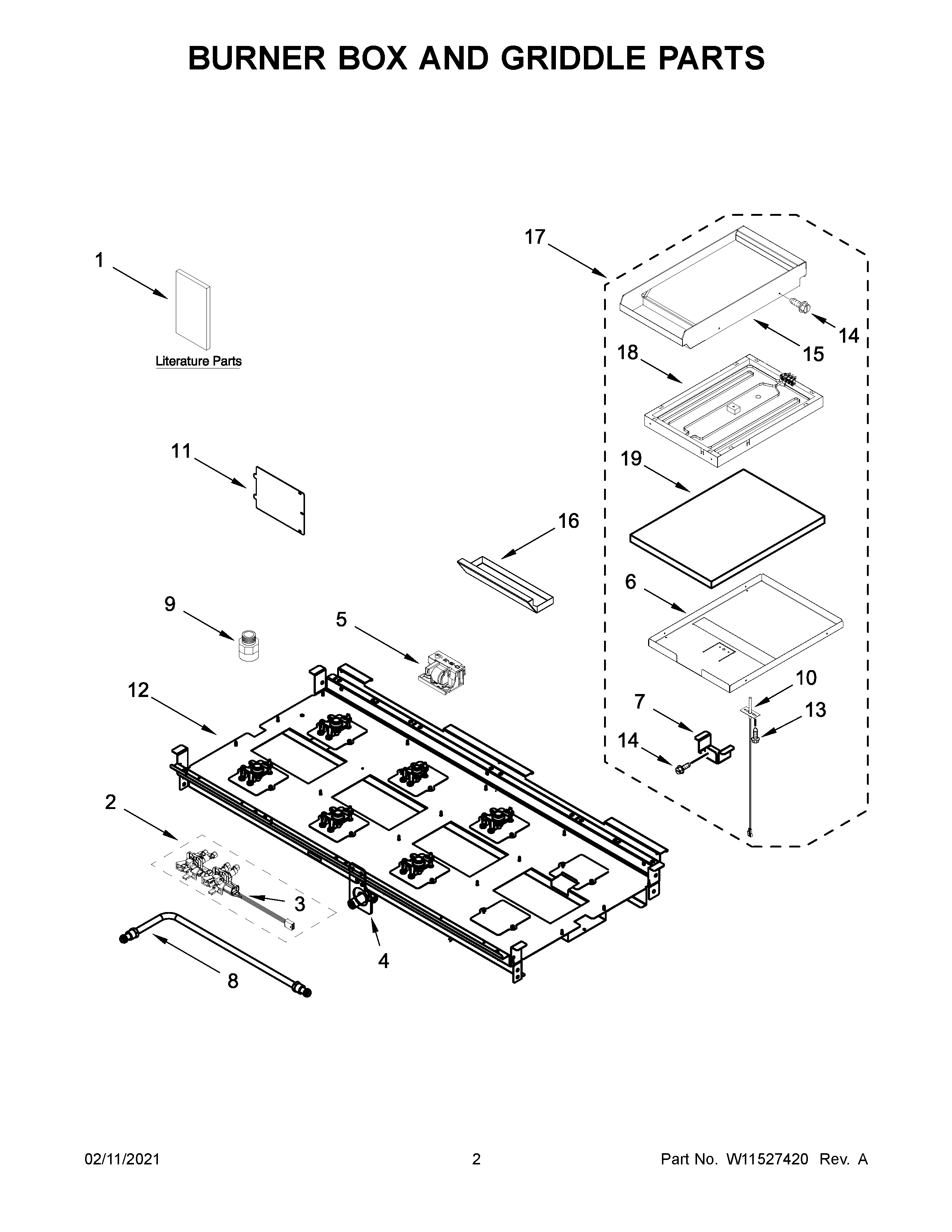

JDSP548HM01 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	W11317787 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	W11317786 Whirlpool Wire Harness
NI	W11317788 Whirlpool Wire Harness
NI	BOARD, TRANSIENT SUPPRESSOR
NI	CORD, POWER
NI	W11317791 Whirlpool Wire Harness
NI	W11200313 Whirlpool Wire Harness
NI	W11200316 Whirlpool Wire Harness
NI	WP112432 Whirlpool Nut Assembly
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	W11428599 Whirlpool Conversion Kit
NI	SCREW, ANTI-TIP KIT
1D	DIAGRAM, WIRING
1A	INSTRUCTIONS, INSTALLATION
1E	SHEET, TECH
1B	GUIDE, QUICK START
1C	GUIDE, INTERNET CONNECTIVITY
1	GUIDE, USE AND CARE
2A	W11320019 Whirlpool Manifold
2B	W11320025 Whirlpool Manifold
2	W11320017 Whirlpool Manifold
3	W11320016 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	TRAY, GRIDDLE INSULATION
7	BRACKET, GRIDDLE-RTD
8	W11320029 Whirlpool Gas Tubing
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
8B	TUBE, MANIFOLD SUPPLY (RIGHT CENTER)
9	4453116 Whirlpool Oven Adapter
10	W11319618 Whirlpool Sensor
11	W10115843 Whirlpool Access Cover
13	W10491985 Whirlpool Screw
14	W10162096 Whirlpool Screw
15	W11602622 Whirlpool Griddle Assembly
16	W10276497 Whirlpool Drip Tray
17	W11602621 Whirlpool Module
18	W11319602 Whirlpool Grille Element
19	INSULATION, GRIDDLE
