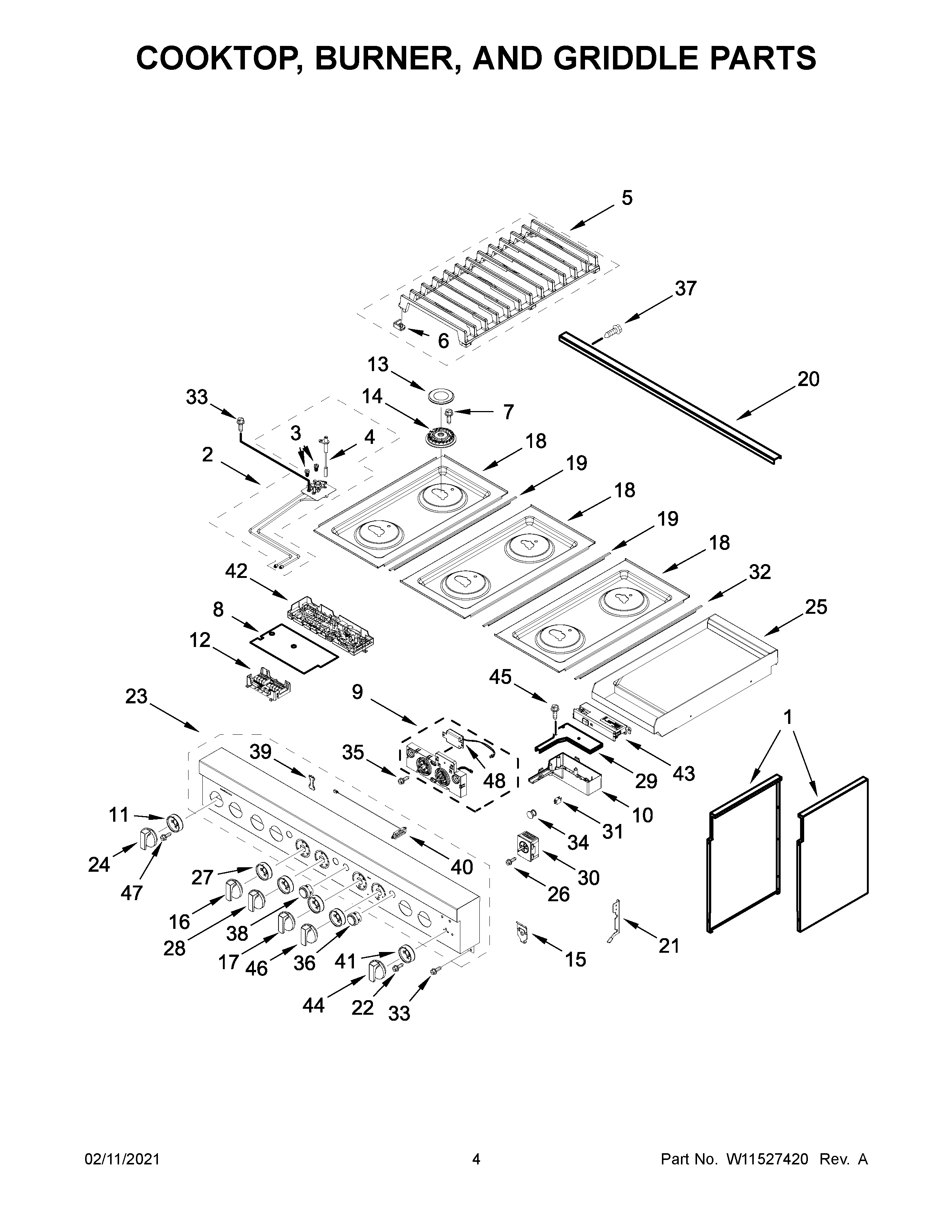

JDSP548HM01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

JDSP548HM01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Written by

in

JDSP548HM01 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1W11321067 Whirlpool Complete Side Assembly
1AW11320596 Whirlpool Side Assembly
2CW11319740 Whirlpool Holder Orifice
2DW11319743 Whirlpool Dishwasher Orifice Holder
2EW11319747 Whirlpool Orifice Holder
2BW11319745 Whirlpool Orifice Holder
2AW11319746 Whirlpool Orifice Holder
2W11319741 Whirlpool Orifice Holder
3DW10892429 Whirlpool Orifice Spud
3W11643164 Whirlpool Orifice Spud
3BW10892440 Whirlpool Spud Orifice
3CW11661909 Whirlpool Range Orifice Spud
3AW10892418 Whirlpool Range Orifice Spud
4W11573760 Whirlpool Surface Igniter
4AW11580024 Whirlpool Surface Igniter
4BW11238756 Whirlpool Surface Igniter
5BW11516462 Whirlpool Burner Grate
5W11516449 Whirlpool Grate Burner
5AW11516481 Whirlpool Grate Burner
6W11550692 Whirlpool Bumper
7SCREW
8W11320149 Whirlpool Insulator
9W11492294-includeCORE Whirlpool W11492294 Refrigerator Electronic Control Board + Core
10COVER, WIFI OUTER
11W11317889 Whirlpool Knob Bezel
12W11317945 Whirlpool Electronic Control Board + Core
13W11319224 Whirlpool Burner Cap
14AW11319673 Whirlpool Burner Head
14W11319683 Whirlpool Burner Head
15W11318207 Whirlpool Clip Assembly
16W11317886 Whirlpool Knob
17WPL W11343043
18AW11316701 Whirlpool Cooktop
18BWPL W11038249
18W11316700 Whirlpool Cooktop
19W10271524 Whirlpool Trim Top
20WPL W11156418
21W10130760 Whirlpool Bracket Mounting
21AW10130759 Whirlpool Mounting Bracket
22W10674068 Whirlpool Screw
23W11289593 Whirlpool Control Panel
24W11317537 Whirlpool Knob
25CABINET (NOT A SERVICEABLE PART)
26WP3196557 Whirlpool Screw
27W11317892 Whirlpool Bezel Knob
29WPL W11205794
30W11318834 Whirlpool Infinite Heat Switch
31W10116114 Whirlpool Indicator Light
32W10291193 Whirlpool Trim Top
33SCREW
34W10294500 Whirlpool Light Lens
35WP3400814 Whirlpool Screw
36W11319196 Whirlpool Push Button
37SCREW
38W11318857 Whirlpool Push Button
39WPL W10896369
40W11318855 Whirlpool Antenna
41W11317890 Whirlpool Knob Bezel
42W11388048 Whirlpool Electronic Control Board + Core
43W11234290 Whirlpool Electronic Control Board
44W11317536 Whirlpool Knob Assembly
45WPL 7101P62460
46W11317539 Whirlpool Knob
47W11509770 Whirlpool Screw
48W11123146 Whirlpool Speaker
