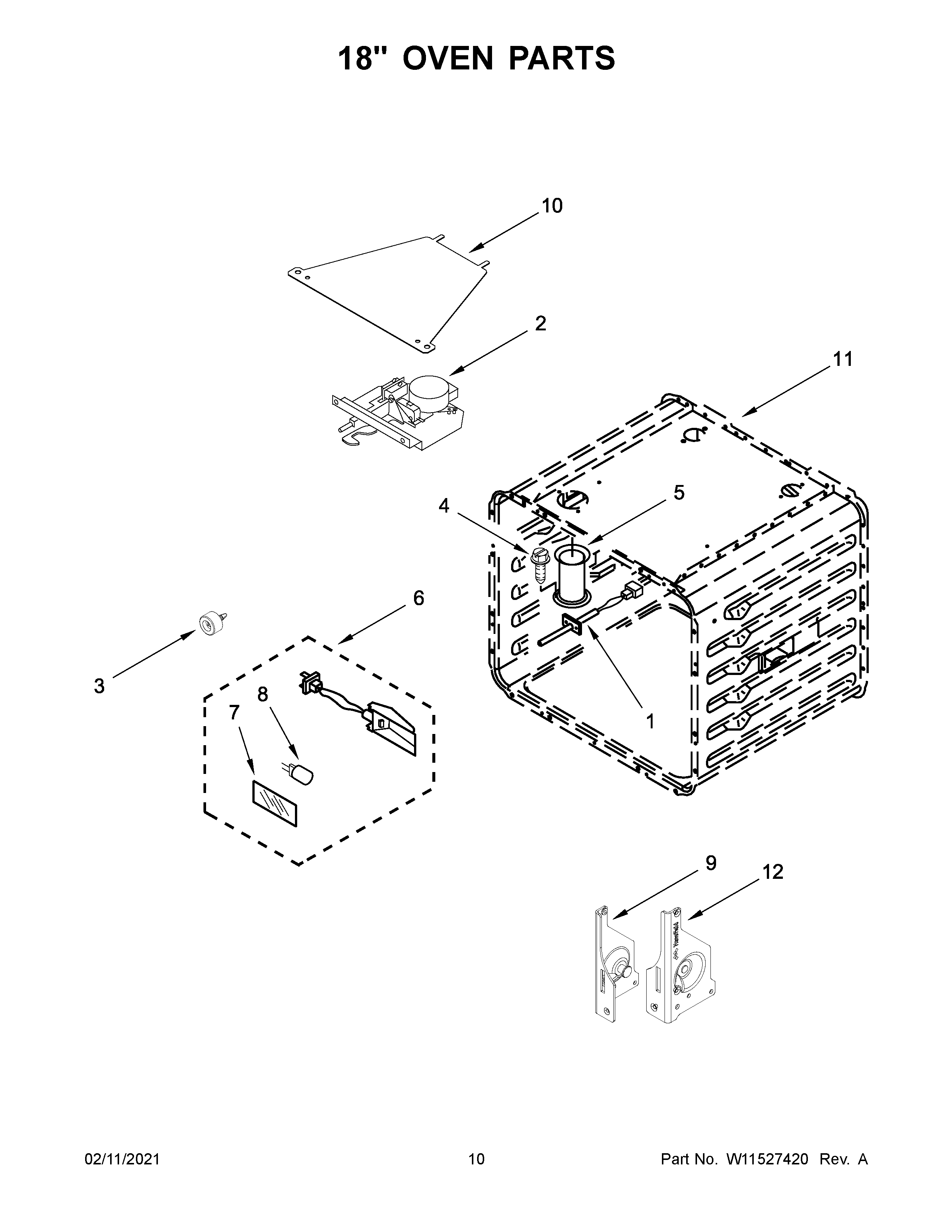

JDSP548HM01 06 – 18″ OVEN PARTS

Products

Position	Product
NI	W10282812 Whirlpool Insulation Assembly
NI	CABINET (NOT A SERVICEABLE PART)
NI	INSULATION, WRAP, 18 IN
NI	WP3400968 Whirlpool Nut
1	W10859573 Whirlpool Range Oven Temperature Sensor
2	W11029221 Whirlpool Door Latch
3	WPW10351278 Whirlpool Bumper
4	SCREW
5	TUBE, VENT
6	W11233684 Whirlpool Oven Light Assembly
7	W10169756 Whirlpool Light Lens
8	BULB-LIGHT
9	RECEIVER, HINGE (LEFT)
10	W10160858 Whirlpool Lid Cover
12	RECEIVER, HINGE (RIGHT)
