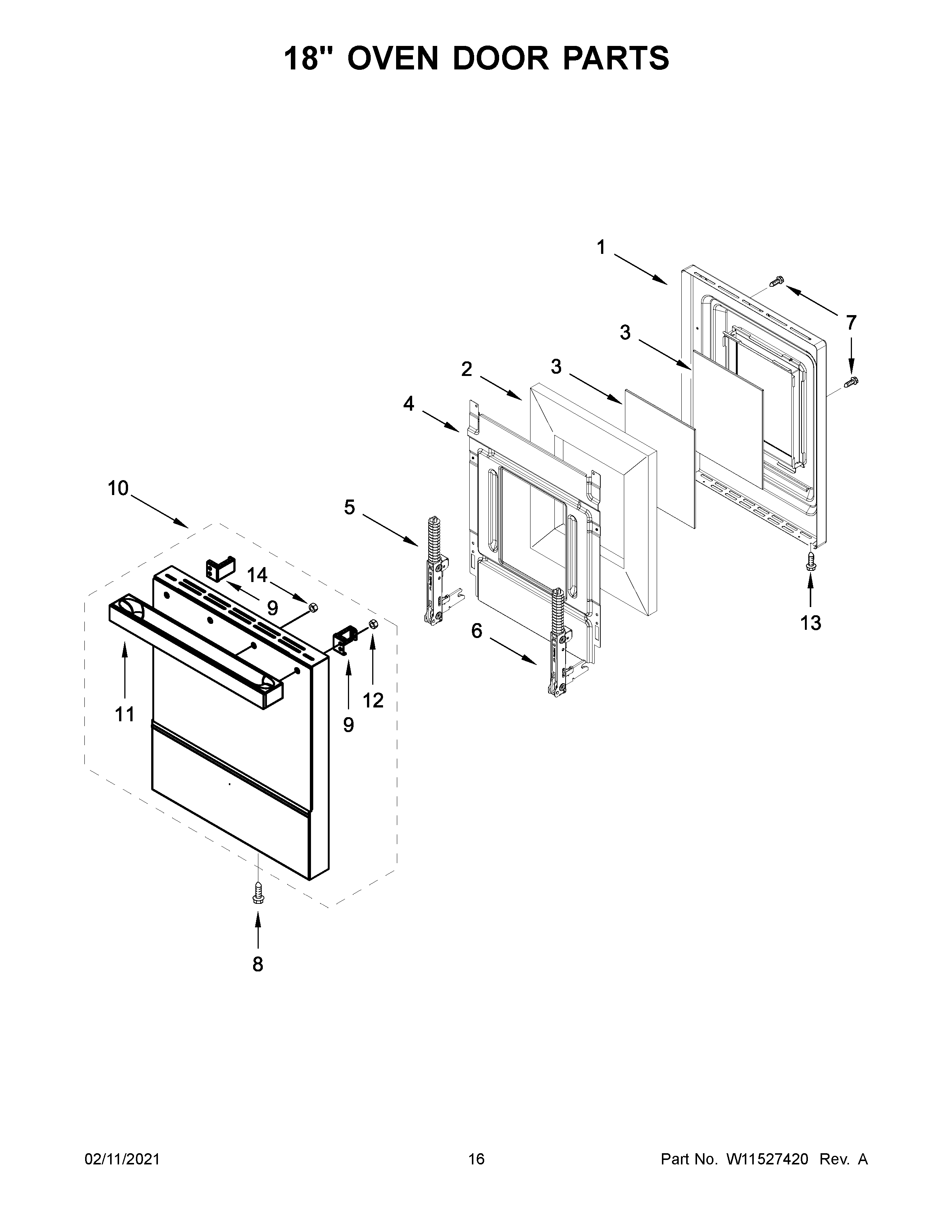

JDSP548HM01 09 – 18″ OVEN DOOR PARTS

Products

PositionProduct
1W11318335 Whirlpool Glass Frame
2INSULATION, DOOR
3W11317951 Whirlpool Glass Door
4RETAINER, GLASS
5HINGE, DOOR (LEFT)
6HINGE, DOOR (RIGHT)
7W11712404 Whirlpool Screw
8W10162096 Whirlpool Screw
9W11317894 Whirlpool Mounting Bracket
10GLASS-DOOR
11HANDLE, DOOR
12NUT
13W11193480 Whirlpool Screw
14NUT
