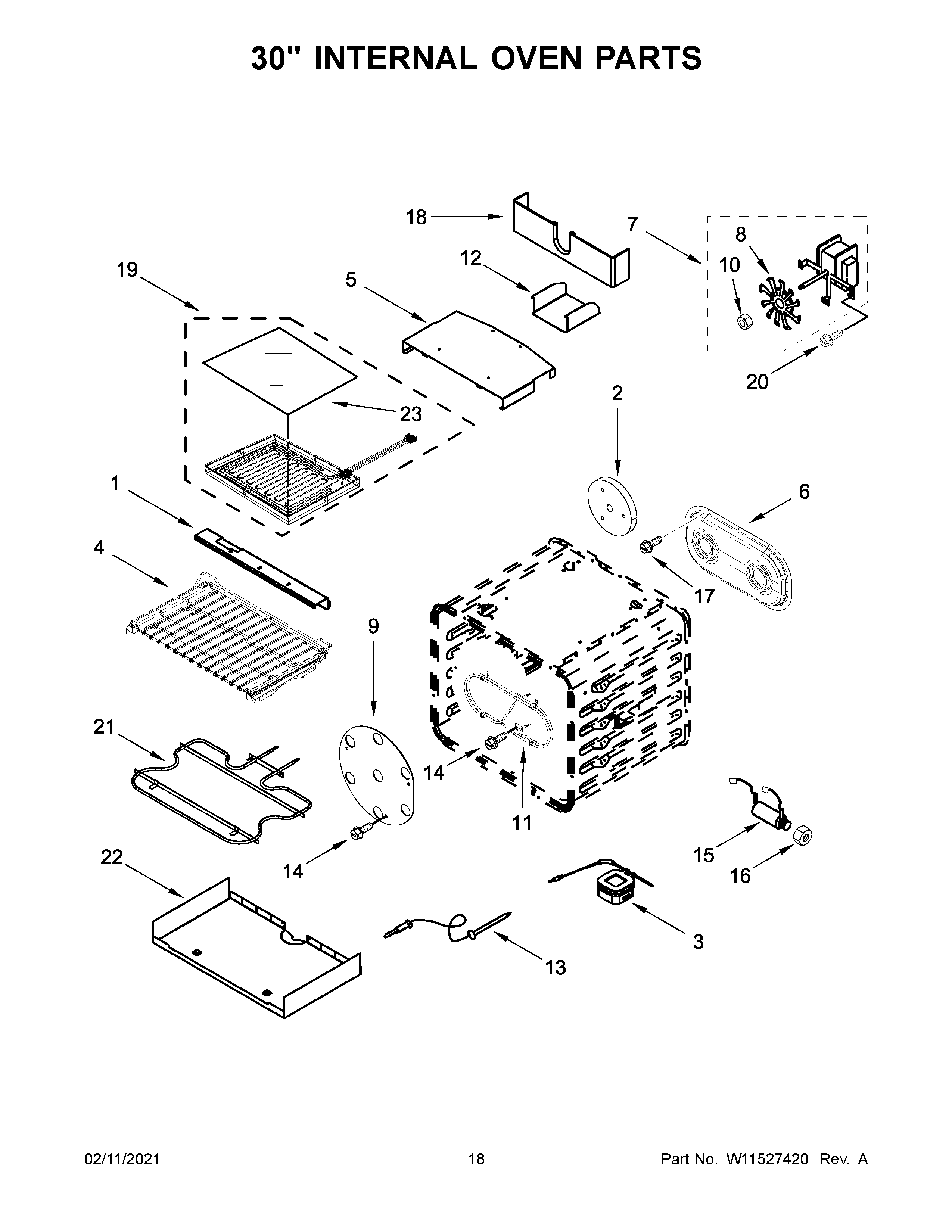

JDSP548HM01 10 – 30″ INTERNAL OVEN PARTS

Products

PositionProduct
1BRACKET, BROIL FRONT
2W11688507 Whirlpool Insulation
3W11318341 Whirlpool Meat Probe
4W11563568 Whirlpool Oven Rack
5BRACKET, BROIL TOP
6W11232487 Whirlpool Convection Baffle
7W11685616 Whirlpool Fan Motor
8W11320150 Whirlpool Convection Fan
9W10261523 Whirlpool Plate
10W10794042 Whirlpool Nut
11W10116434 Whirlpool Element
12COVER, BROIL TERMINAL
13WP9755542 Whirlpool Oven Meat Probe
14WP4449154 Whirlpool Screw
158186589 Whirlpool Jack Probe
16W11231343 Whirlpool Lock Nut
17SCREW
18COVER PLATE, TERMINAL HOLE
19W11210530 Whirlpool Broil Element
20W10850807 Whirlpool Screw
21ELEMENT, HIDDEN BAKE
22TRAY, HIDDEN BAKE
23GLASS, BROIL ELEMENT
