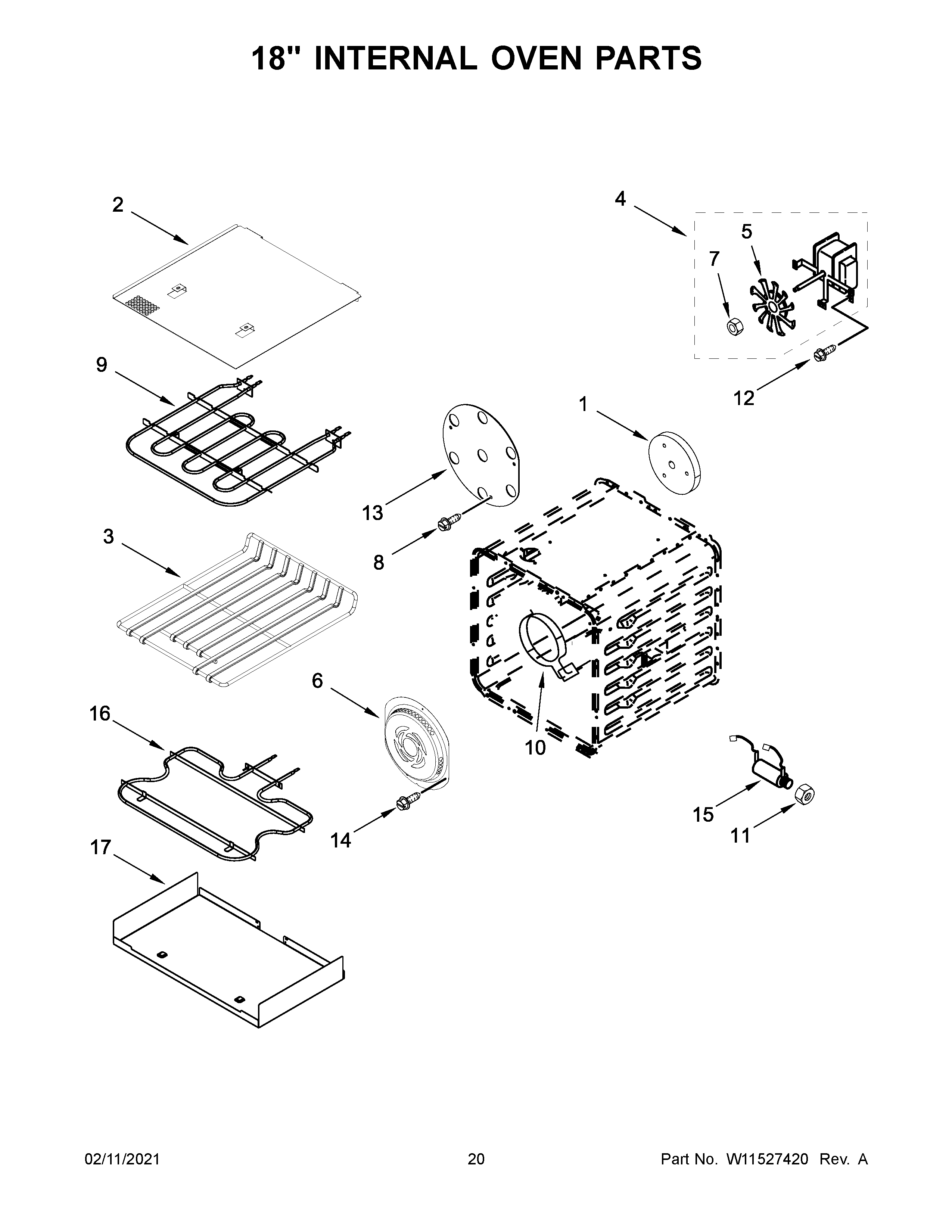

JDSP548HM01 11 – 18″ INTERNAL OVEN PARTS

Products

PositionProduct
1W11688507 Whirlpool Insulation
2W10160855 Whirlpool Heat Shield
3W11111351 Whirlpool Oven Rack
4W11685616 Whirlpool Fan Motor
5W11320150 Whirlpool Convection Fan
6COVER, FAN
7W10794042 Whirlpool Nut
8WP4449154 Whirlpool Screw
9W10116010 Whirlpool Broil Element
10W11643125 Whirlpool Element
11W11231343 Whirlpool Lock Nut
12W10850807 Whirlpool Screw
13W10261523 Whirlpool Plate
14SCREW
158186589 Whirlpool Jack Probe
16ELEMENT, HIDDEN BAKE
17TRAY, HIDDEN BAKE
