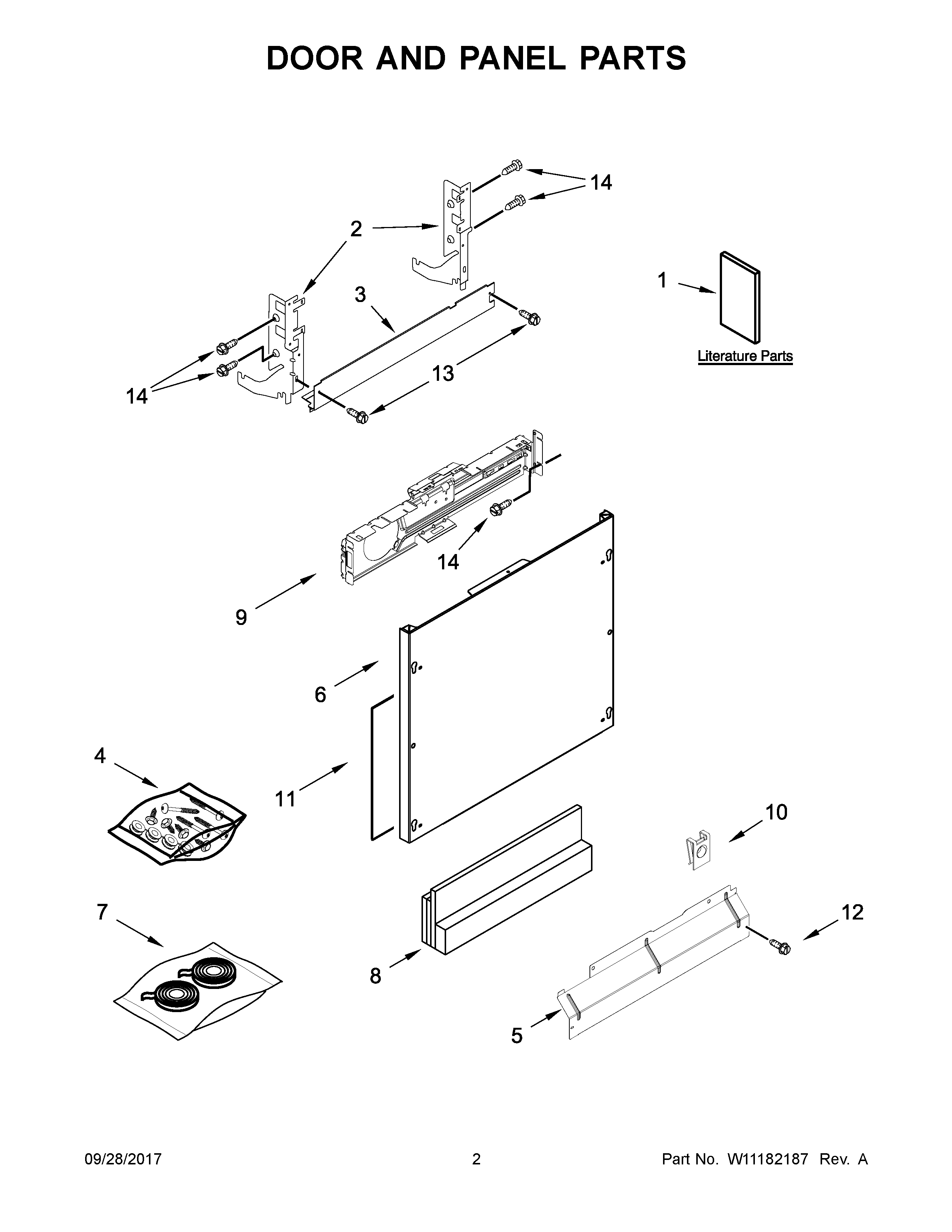

JDTSS243GX0 02 – DOOR AND PANEL PARTS

JDTSS243GX0 02 – DOOR AND PANEL PARTS

Written by

in

JDTSS243GX0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1DTECH SHEET, FRENCH
1ETEMPLATE, 6" CUSTOM PANEL
1BUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1AENERGY GUIDE
1CTECH SHEET, ENGLISH
2AMAY 8534853
2MAY 8534854
3BARRIER, VAPOR
4HARDWARE, CUSTOM PANEL
5ACCESS PANEL (BLACK)
6PANEL READY (FRONT)
7SEAL, PANEL READY
8INSULATION, FOUR LAYER
9BRACKET, CONTROL
10U-NUT
11INSULATION, FRONT PANEL
12SCREW (BLACK)
13Screw
14SCREW
