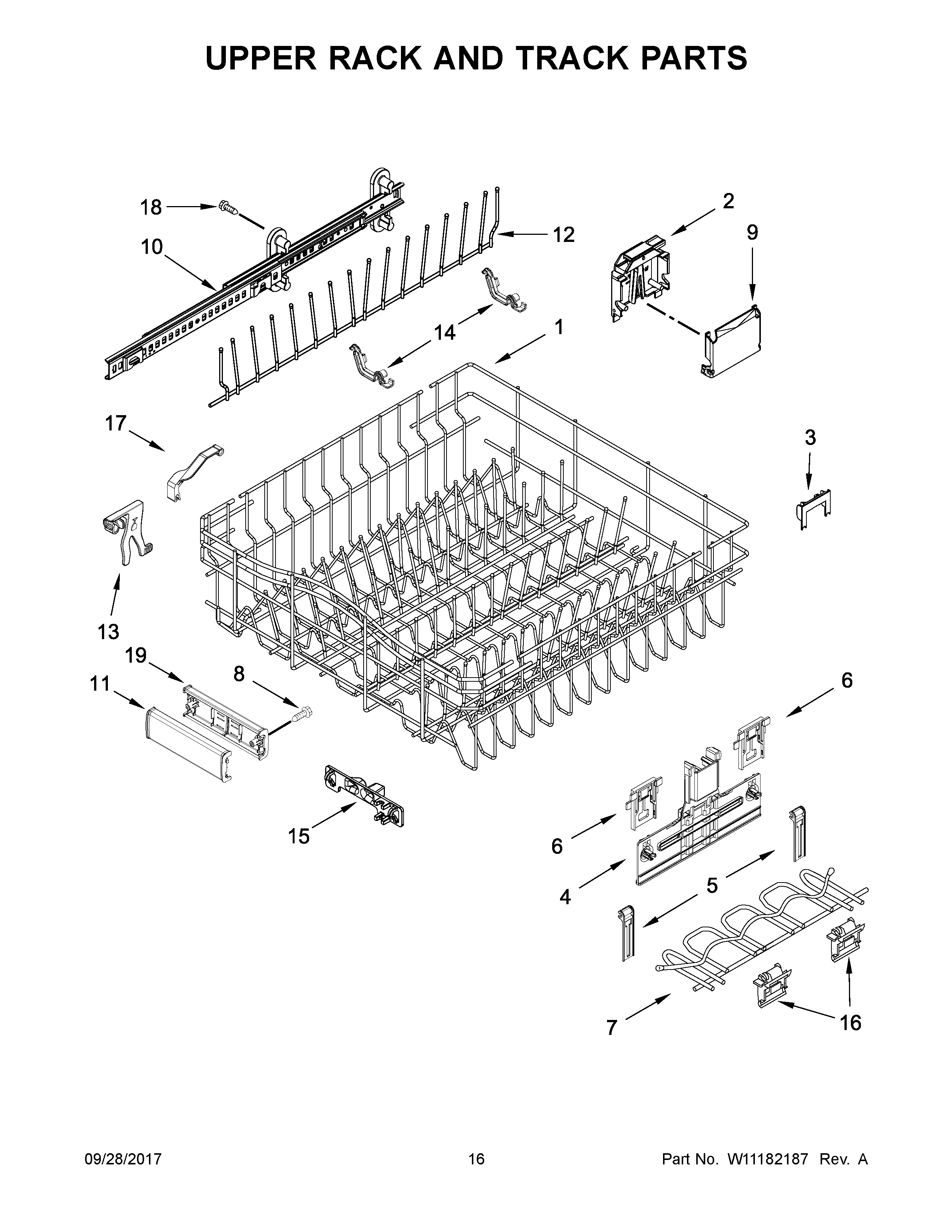

JDTSS243GX0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1DISHRACK, UPPER
2AHOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND)
2HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND)
3CLIP-LOCK ADJUSTER ARM
4ADJUSTER ASSEMBLY
5MAY W10195839
6POSITIONER, ADJUSTER
7CUPSHELF
8MAY 9741232
9MAY W10250162
10TRACK, ASSEMBLY (LEFT HAND)
10ATRACK, ASSEMBLY (RIGHT HAND)
11HANDLE, DISHRACK FRONT
12TINE, FOLD DOWN
13CLIP, STEMWARE
14MAY W10082853
15MAY 8539102
16CLIP, CUPSHELF
17CLIP, DISPENSER GUARD
18MAY W10309090
19HANDLE, DISHRACK REAR
