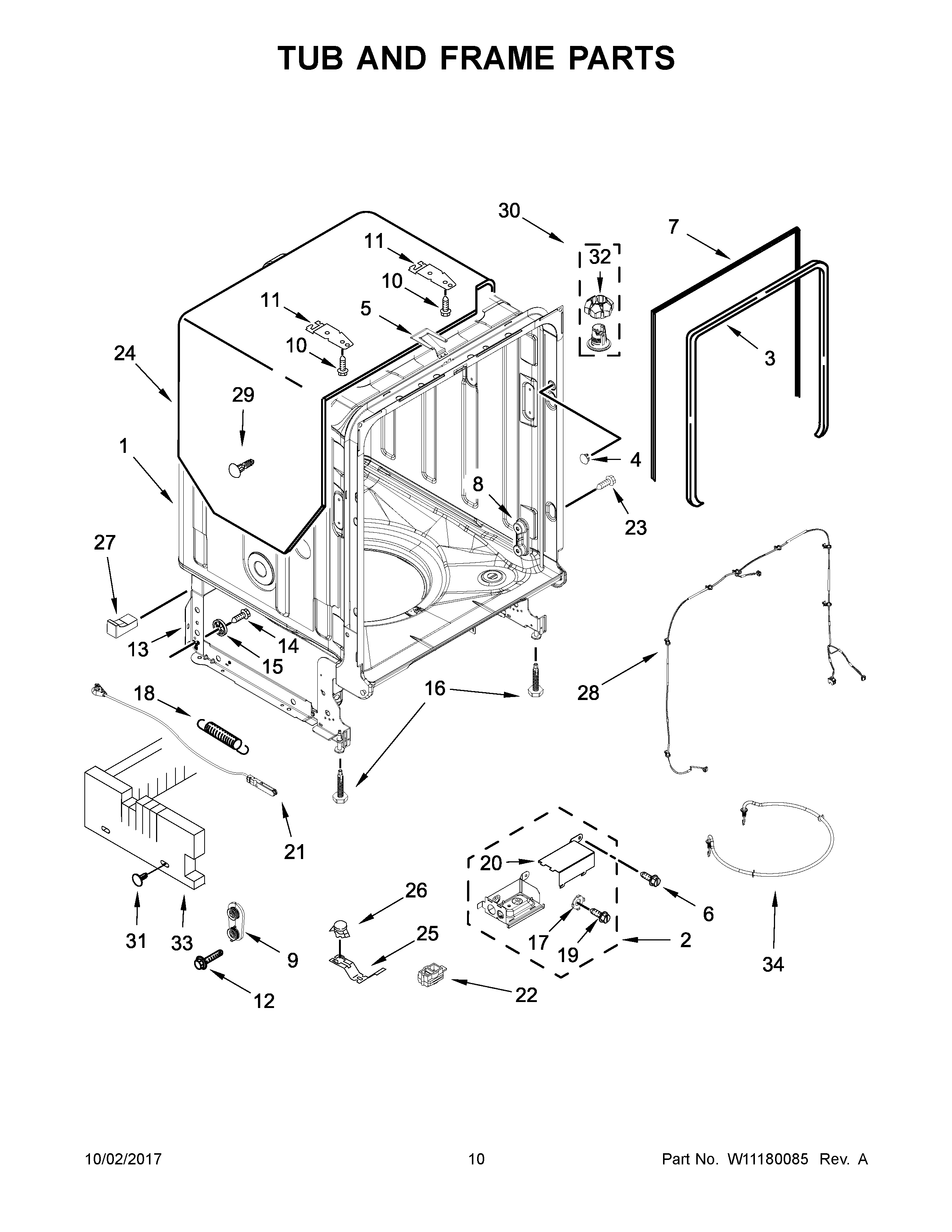

JDTSS245GX0 06 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (ALSO INCLUDES HEATER ASSEMBLY)
2ASSEMBLY, TERMINAL BOX
3GASKET, TUB
4MAY W10082838
5STRIKE, LATCH
6Screw
7SEAL, CABINET
8MOUNT, LOWER TRACK ASSEMBLY
9DOOR BALANCE ASSEMBLY
10MAY 3367670
11MAY 8269145
12SCREW
13SUPPORT ASSEMBLY, REAR
14MAY W10348411
15WHEEL LEG
16LEVELER, LEG
17WASHER, PRONGED CUP
18SPRING, DOOR BALANCE
19MAY 3400014
20COVER, TERMINAL BOX
21CABLE, DOOR ASSEMBLY
22MAY W10292870
23MAY W10309090
24SHIELD, TUB SOUND
25MAY W10300703
26MAY W10195091
27SPACER, TUB/BRACE (LEFT)
27ASPACER, TUB/BRACE (RIGHT)
28HARNESS, TUB LIGHTS
29RETAINER, PUSH
30LENS, LIGHT ASSEMBLY
31RETAINER
32NUT, RETAINER
33INSULATION, U-WRAP
34HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
