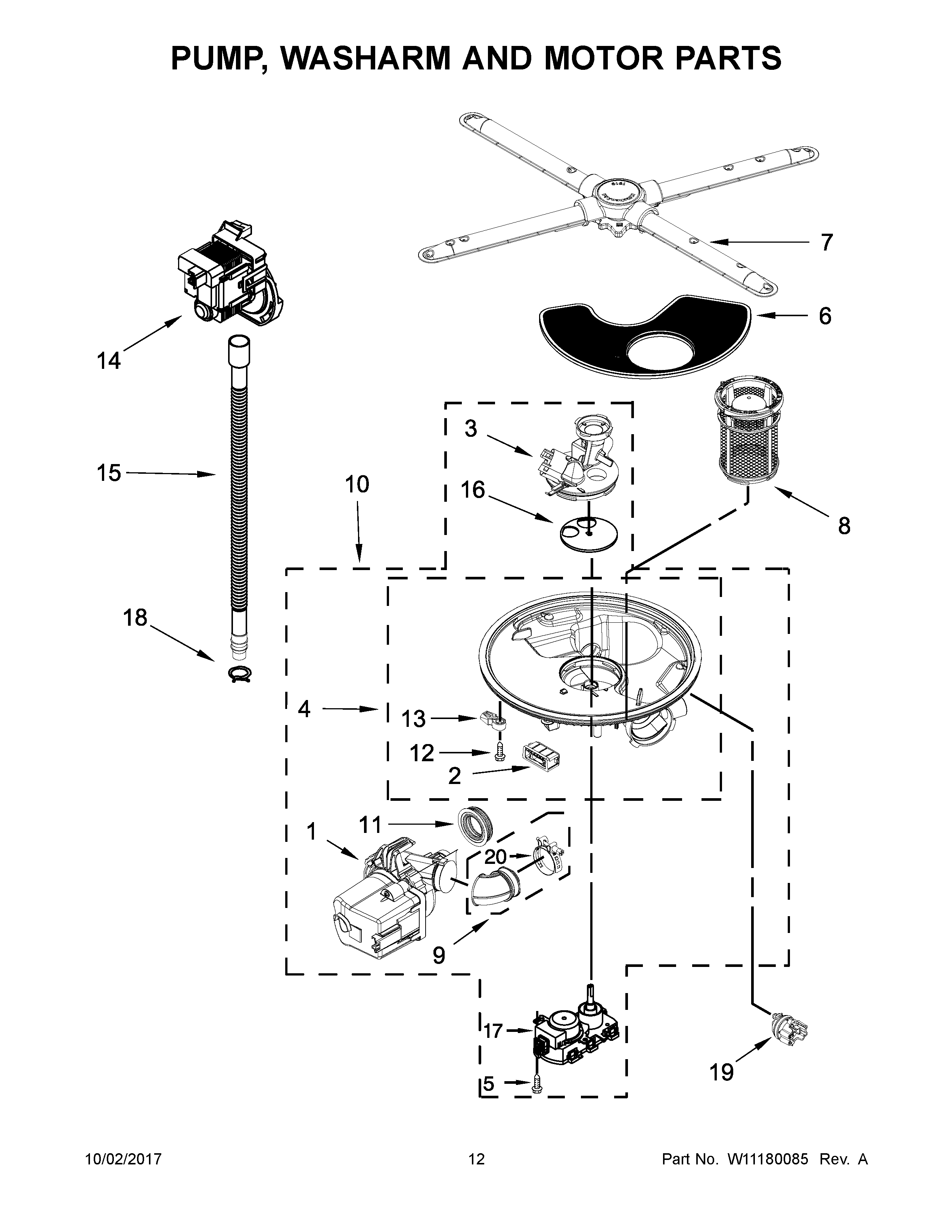

JDTSS245GX0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1MOTOR (ALSO ORDER ITEMS 9 & 11)
2MOTOR, ISOLATOR
3COVER, OUTLET
4SUMP WITH SEAL (ALSO ORDER ITEMS 9 & 11)
5MAY 9741232
6SCREEN
7WASH ARM ASSEMBLY
8FILTER CUP ASSEMBLY
9HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
10MOTOR & SUMP ASSEMBLY
11GROMMET
12MAY W10348407
13TAB, SUMP
14MOTOR, DRAIN
15MAY 8269144
16DISC, DIVERTER
17MOTOR, DIVERTER
18HOSE CLAMP
19INDICATOR, OPTICAL WASH
20CLAMP, HOSE
