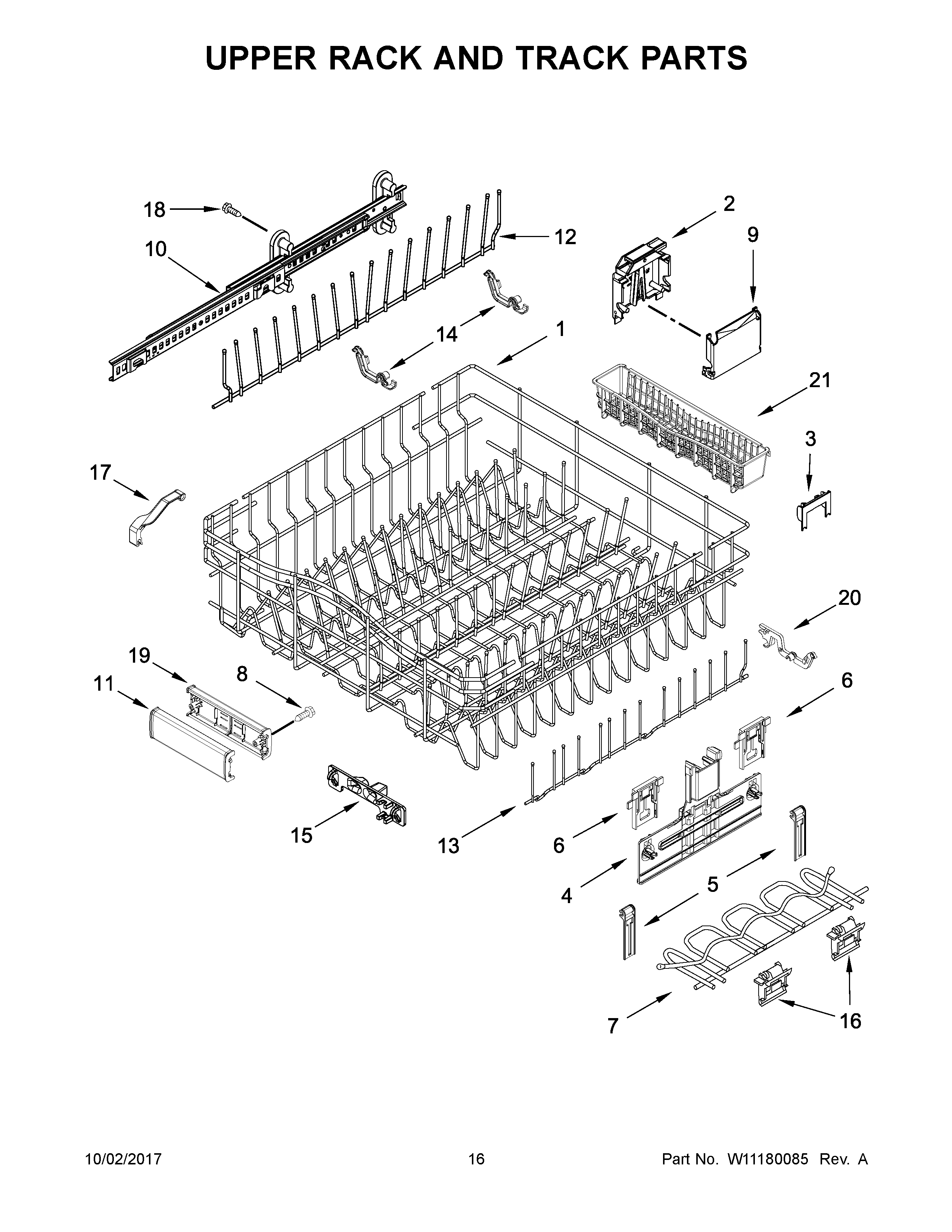

JDTSS245GX0 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	DISHRACK, UPPER
2	HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND)
2A	HOUSING, ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND)
3	CLIP-LOCK ADJUSTER ARM
4	ADJUSTER ASSEMBLY
5	MAY W10195839
6	POSITIONER, ADJUSTER
7	CUPSHELF
8	MAY 9741232
9	MAY W10250162
10	TRACK, ASSEMBLY (LEFT HAND)
10A	TRACK, ASSEMBLY (RIGHT HAND)
11	HANDLE, DISHRACK FRONT
12	TINE, FOLD DOWN
13	TINE ROW, FOLD DOWN
14	MAY W10082853
15	MAY 8539102
16	CLIP, CUPSHELF
17	CLIP, DISPENSER GUARD
18	MAY W10309090
19	HANDLE, DISHRACK REAR
20	RETAINER, FEEDTUBE
21	BASKET, UTENSIL ROW
