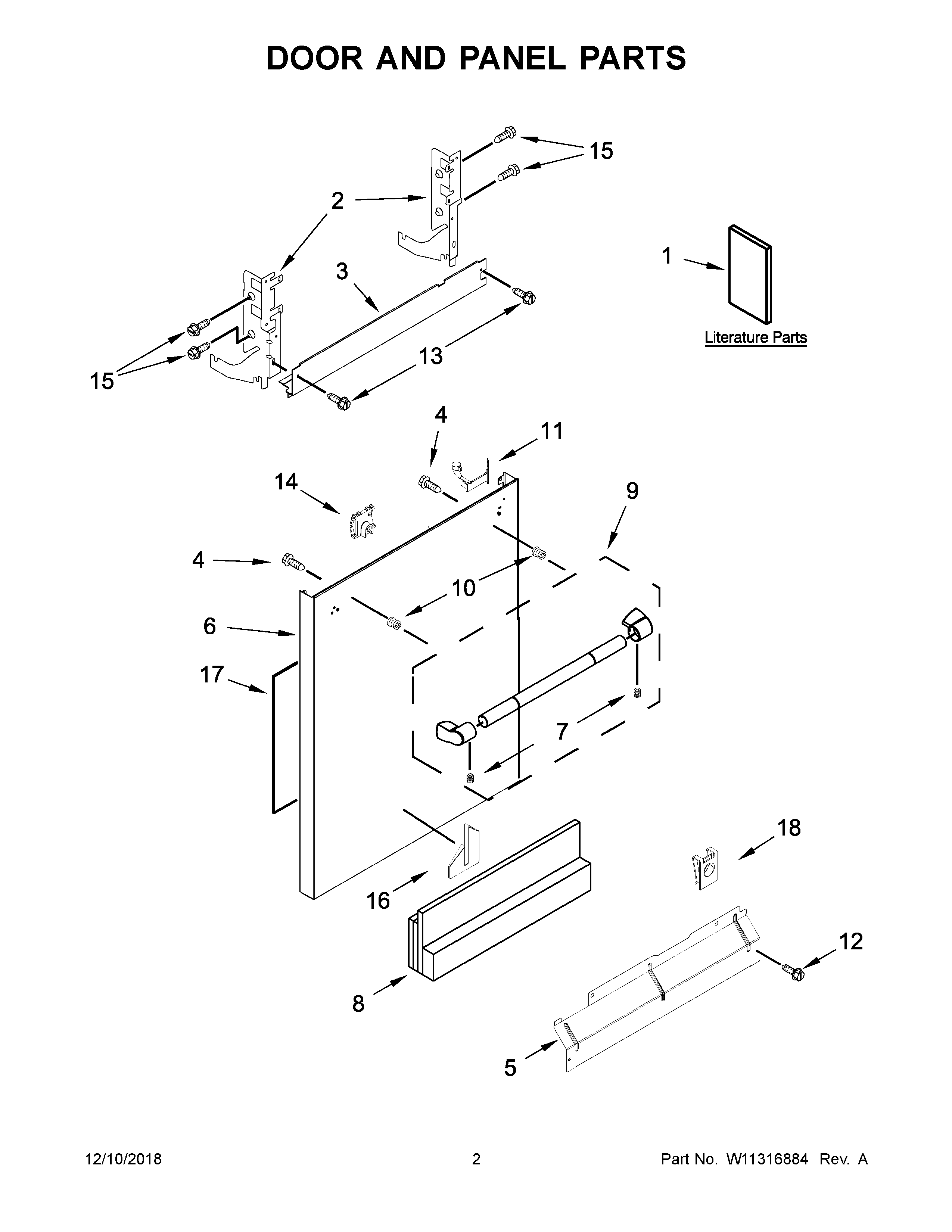

JDTSS246GL0 02 – DOOR AND PANEL PARTS

JDTSS246GL0 02 – DOOR AND PANEL PARTS

Written by

in

JDTSS246GL0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BMAY W11255226
1AMAY W11263946
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1INSTALLATION INSTRUCTIONS
2AMAY 8534853
2MAY 8534854
3BARRIER, VAPOR
4MAY W10316572
5ACCESS PANEL (BLACK)
6MAY W11246883
7SET SCREW
8INSULATION, FOUR LAYER
9MAY W11213316
10STUD, MOUNTING
11LIGHT PIPE
12SCREW (BLACK)
13Screw
14BARREL NUT, FRONT PANEL
15SCREW
16NAMEPLATE (STAINLESS)
17INSULATION, FRONT PANEL
18U-NUT
