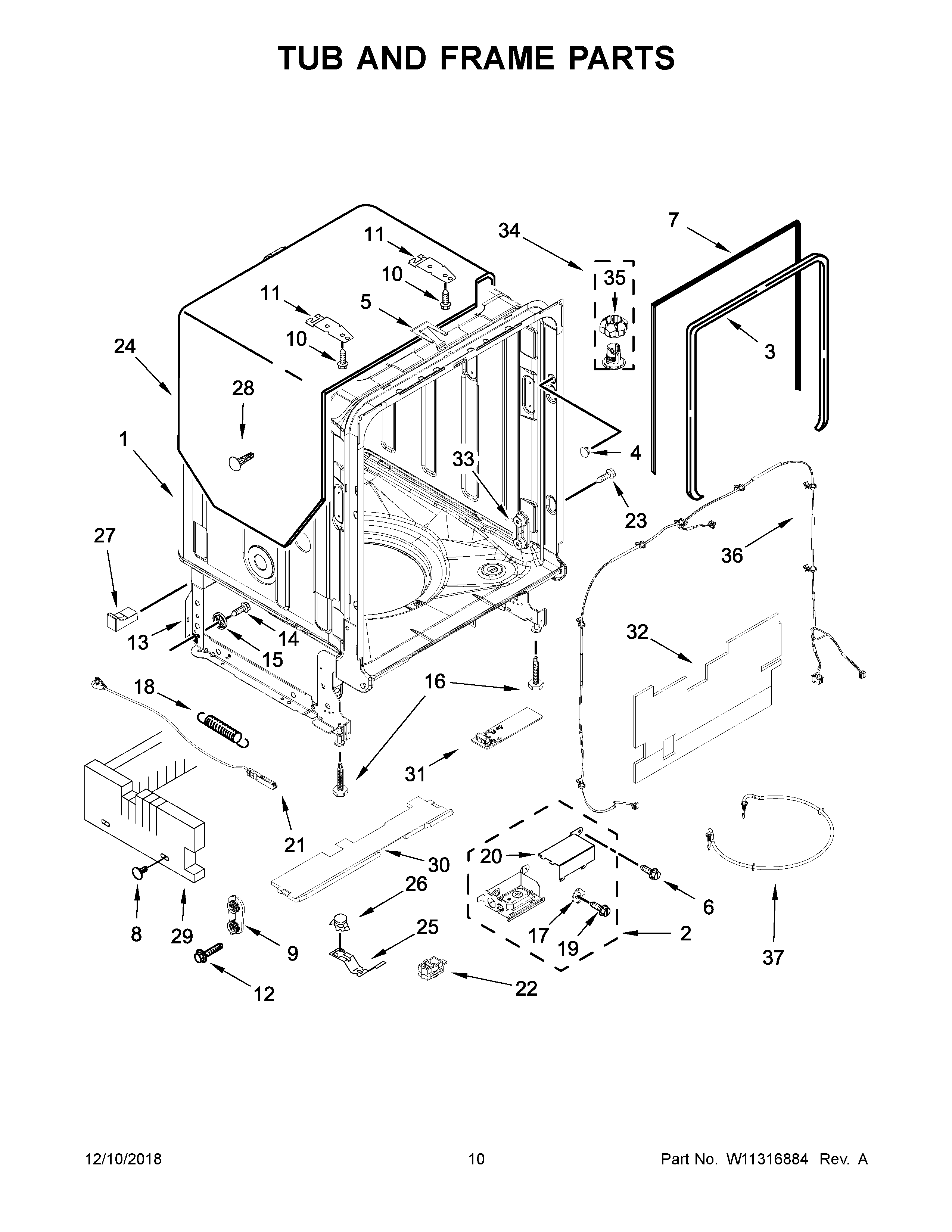

JDTSS246GL0 06 – TUB AND FRAME PARTS

Products

Position	Product
1	TUB ASSEMBLY (ALSO INCLUDES HEATER ASSEMBLY)
2	ASSEMBLY, TERMINAL BOX
3	GASKET, TUB
4	PLUG, TUB
5	STRIKE, LATCH
6	Screw
7	SEAL, CABINET
8	RETAINER
9	DOOR BALANCE ASSEMBLY
10	MAY 3367670
11	MAY 8269145
12	SCREW
13	SUPPORT ASSEMBLY, REAR
14	MAY W10348411
15	WHEEL LEG
16	LEVELER, LEG
17	WASHER, PRONGED CUP
18	MAY 8270020
19	MAY 3400014
20	COVER, TERMINAL BOX
21	CABLE, DOOR ASSEMBLY
22	MAY W10292870
23	MAY W10309090
24	SHIELD, TUB SOUND
25	MAY W10300703
26	MAY W10195091
27	SPACER, TUB/BRACE (LEFT)
27A	SPACER, TUB/BRACE (RIGHT)
28	RETAINER, PUSH
29	INSULATION, U-WRAP
30	SOUND INSULATION, BOTTOM
31	WIFI MODULE
32	SOUND INSULATOR, BOTTOM
33	MOUNT, LOWER TRACK ASSEMBLY
34	LENS, LIGHT ASSEMBLY
35	NUT, RETAINER
36	HARNESS, TUB LIGHTS
37	HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
