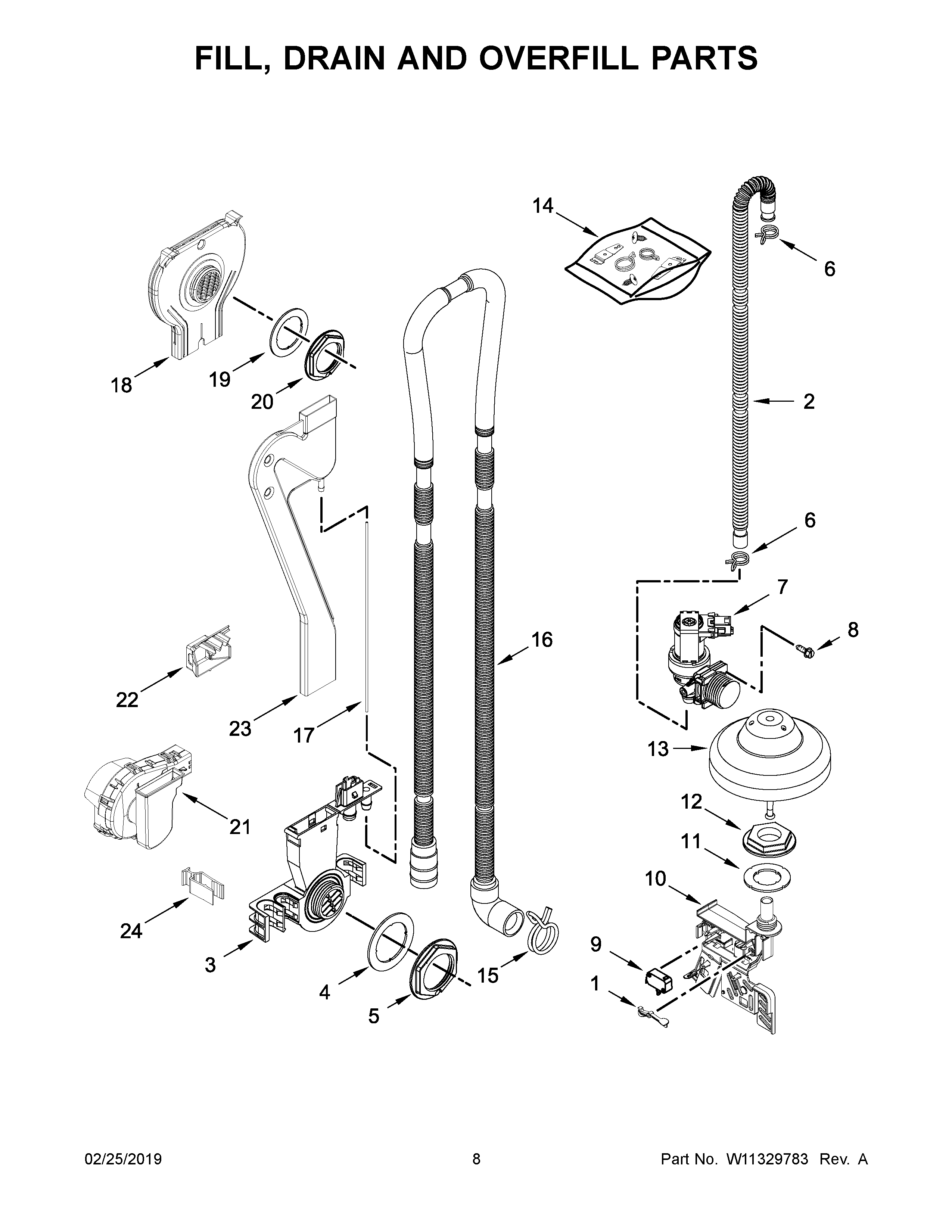

JDTSS246GM0 05 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1LEVER, OVERFILL SWITCH
2HOSE
3INLET, WATER (ALSO ORDER ITEM 4)
4MAY 8531323
5NUT, WATER INLET (ALSO ORDER ITEM 4)
6MAY 371505
7FILL VALVE ASSEMBLY
8SCREW
9SWITCH, OVERFILL CONTROL
10HOUSING, OVERFILL (ALSO ORDER ITEM 11)
11MAY 8531743
12MAY W10195038
13MAY W10195036
14MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS)
15MAY 370445
16DRAIN LOOP WITH CHECK VALVE ASSEMBLY
17VENT HOSE
18OUTLET, AIR ASSEMBLY (ALSO ORDER ITEM 19)
19SEAL, RUBBER
20NUT, AIR ASSEMBLY (ALSO ORDER ITEM 19)
21BLOWER ASSEMBLY
22NOZZLE, AIRDUCT
23MAY W11288079
24CLIP, RETAINER
