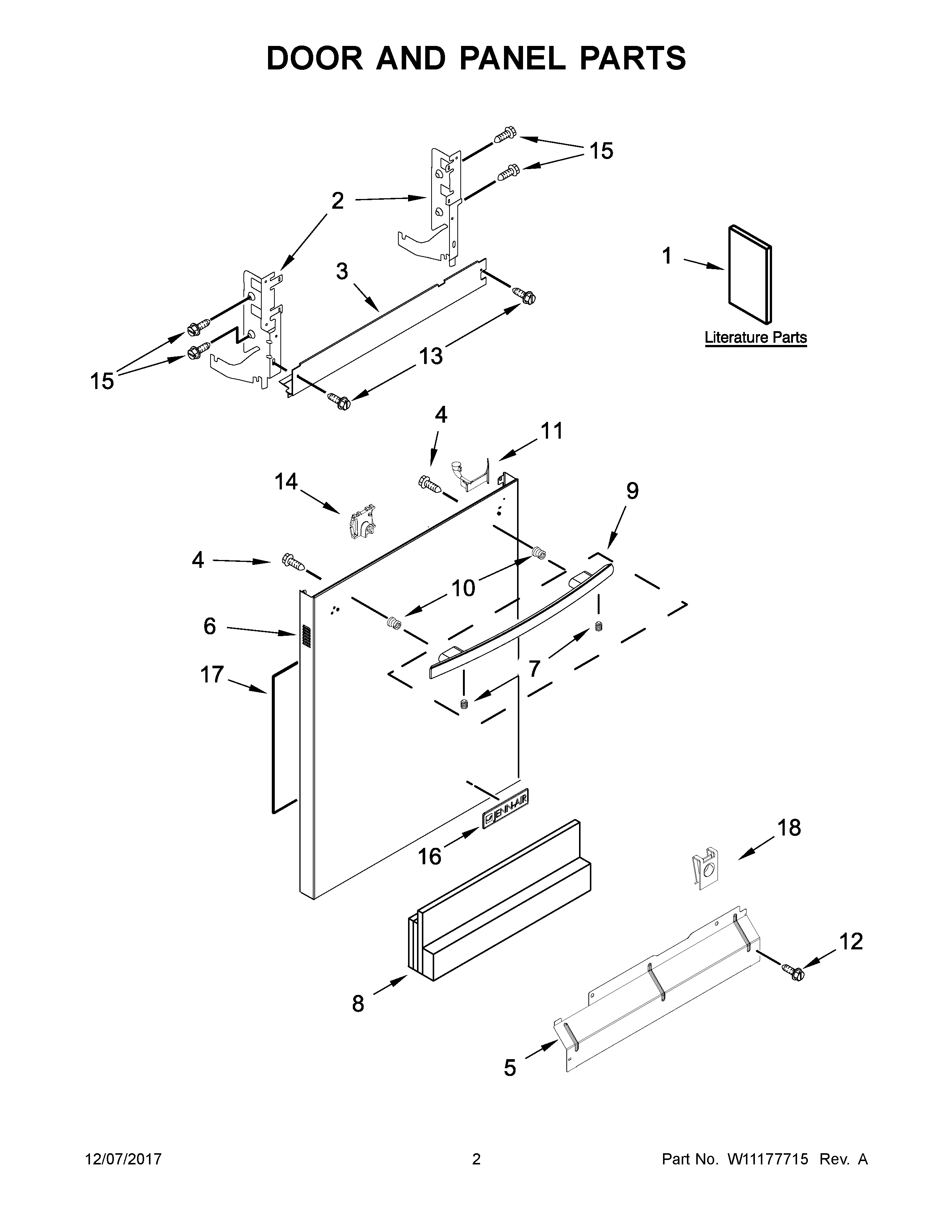

JDTSS246GS0 02 – DOOR AND PANEL PARTS

JDTSS246GS0 02 – DOOR AND PANEL PARTS

Written by

in

JDTSS246GS0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1CTECH SHEET, ENGLISH
1DTECH SHEET, FRENCH
1BMAY W10901595
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
2MAY 8534854
2AMAY 8534853
3BARRIER, VAPOR
4MAY W10316572
5ACCESS PANEL (BLACK)
6MAY W11026610
7SCREW, SET
8INSULATION, FOUR LAYER
9MAY W10716198
10STUD, MOUNTING
11LIGHT PIPE
12SCREW (BLACK)
13Screw
14BARREL NUT, FRONT PANEL
15SCREW
16ASSEMBLY, BADGE (STAINLESS)
17INSULATION, FRONT PANEL
18U-NUT
