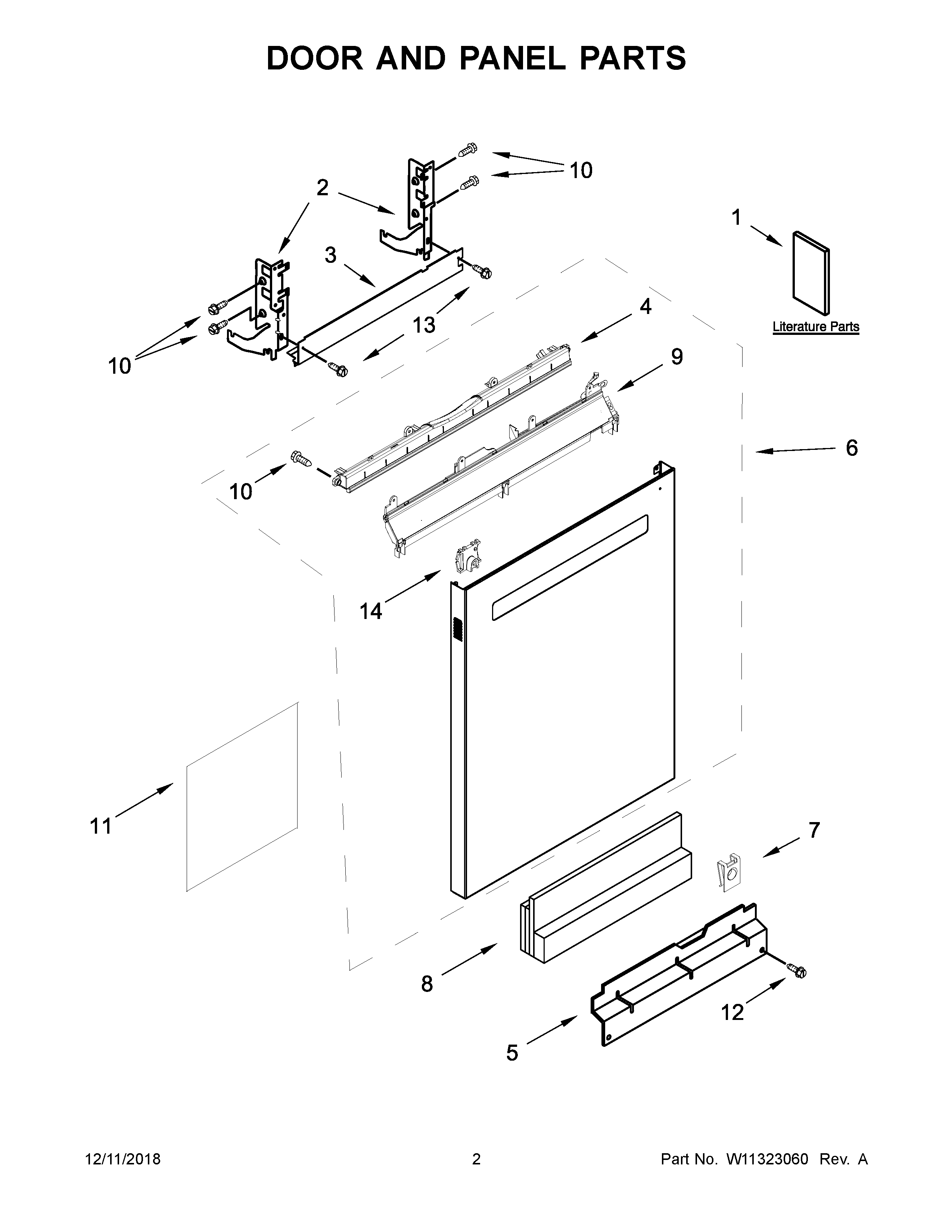

JDTSS247HS0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AMAY W11263946
1DTECH SHEET, FRENCH
1BMAY W11255226
1CTECH SHEET, ENGLISH
2AMAY 8534853
2MAY 8534854
3BARRIER, VAPOR
4MAY W10829406
5ACCESS PANEL (BLACK)
6MAY W11030494
7U-NUT
8INSULATION, FOUR LAYER
9MAY W11035186
10SCREW
11INSULATION, FRONT PANEL
12SCREW (BLACK)
13Screw
14BARREL NUT, FRONT PANEL
