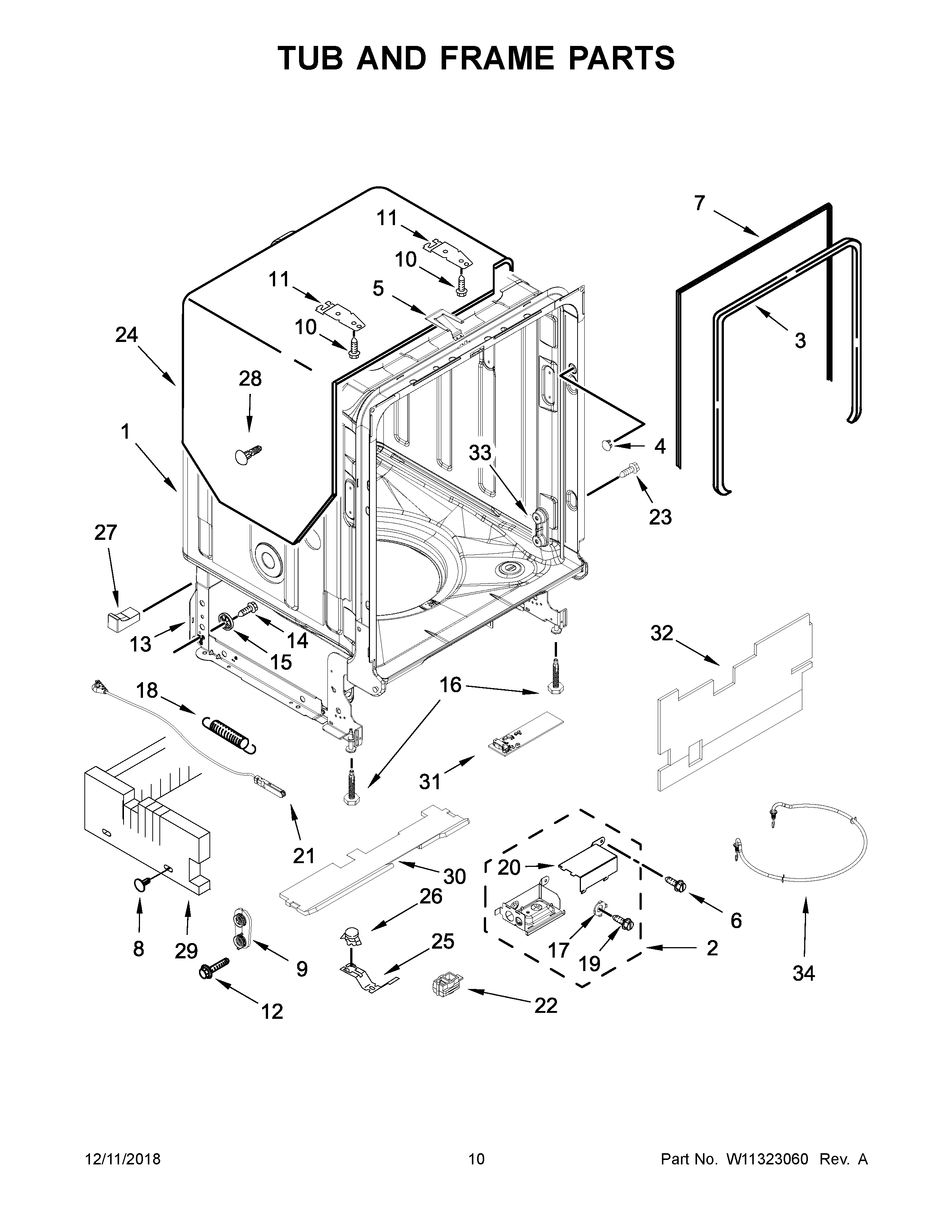

JDTSS247HS0 06 – TUB AND FRAME PARTS

JDTSS247HS0 06 – TUB AND FRAME PARTS

Written by

in

JDTSS247HS0 06 – TUB AND FRAME PARTS

Products

PositionProduct
1TUB ASSEMBLY (ALSO INCLUDES HEATER ASSEMBLY)
2ASSEMBLY, TERMINAL BOX
3GASKET, TUB
4PLUG, TUB
5STRIKE, LATCH
6Screw
7SEAL, CABINET
8RETAINER
9DOOR BALANCE ASSEMBLY
10MAY 3367670
11MAY 8269145
12SCREW
13SUPPORT ASSEMBLY, REAR
14MAY W10348411
15WHEEL LEG
16LEVELER, LEG
17WASHER, PRONGED CUP
18MAY 8270020
19MAY 3400014
20COVER, TERMINAL BOX
21CABLE, DOOR ASSEMBLY
22MAY W10292870
23MAY W10309090
24SHIELD, TUB SOUND
25MAY W10300703
26MAY W10195091
27SPACER, TUB/BRACE (LEFT)
27ASPACER, TUB/BRACE (RIGHT)
28RETAINER, PUSH
29INSULATION, U-WRAP
30SOUND INSULATION, BOTTOM
31WIFI MODULE
32SOUND INSULATOR, BOTTOM
33MOUNT, LOWER TRACK ASSEMBLY
34HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
