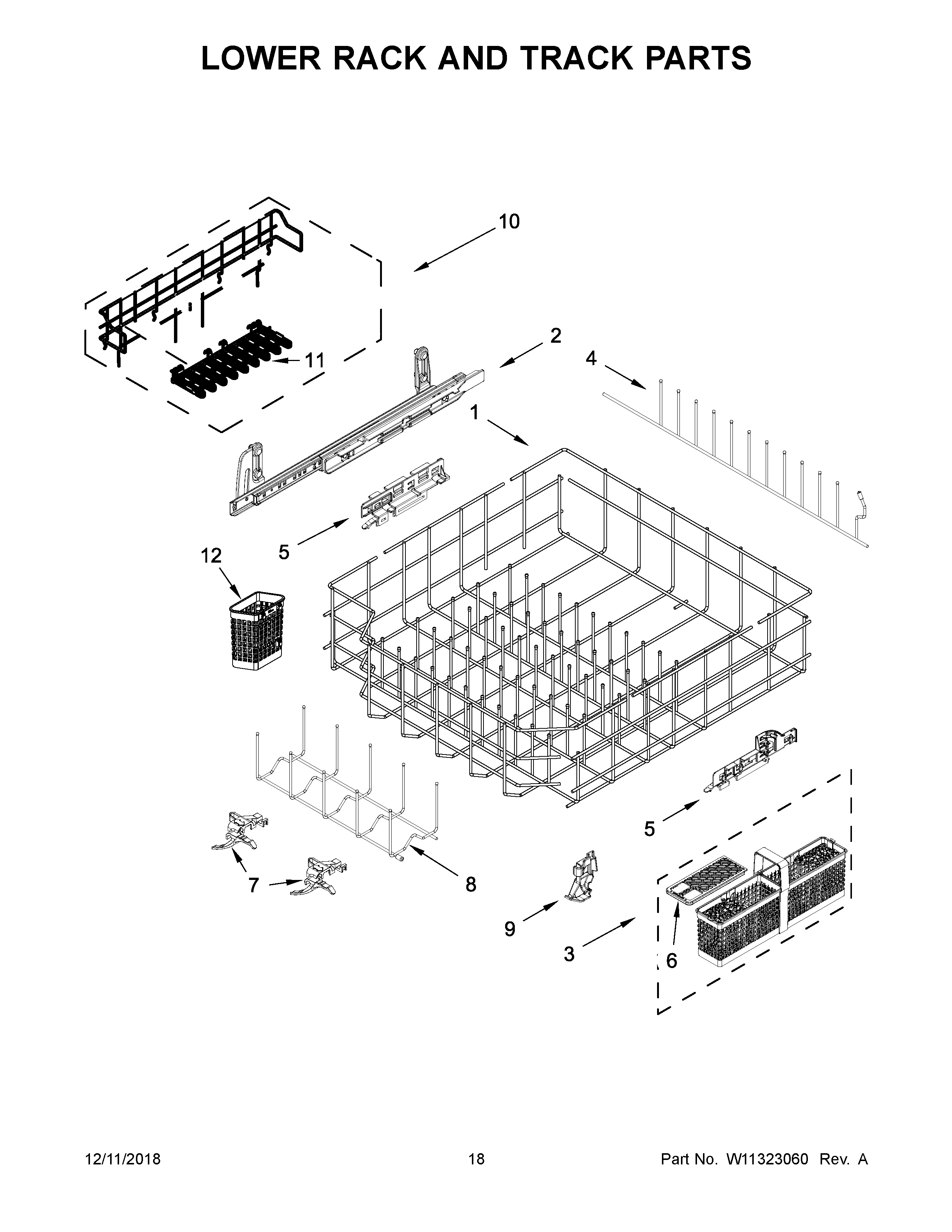

JDTSS247HS0 10 – LOWER RACK AND TRACK PARTS

Products

PositionProduct
1DISHRACK, LOWER
2TRACK ASSEMBLY (LEFT HAND)
2ATRACK ASSEMBLY (RIGHT HAND)
3BASKET ASSEMBLY, SILVERWARE
4TINEROW
5ASUPPORT, REAR CARRIAGE (RIGHT HAND)
5SUPPORT, REAR CARRIAGE (LEFT HAND)
6LID, SILVERWARE BASKET
7RETAINER, SLIDING TINE ROW
8TINE ROW, SLIDING
9ASUPPORT, FRONT SKI (RIGHT HAND)
9SUPPORT, FRONT SKI (LEFT HAND)
10CUPSHELF ASSEMBLY, SIDE
11CUPSHELF
12BASKET, UTENSIL
