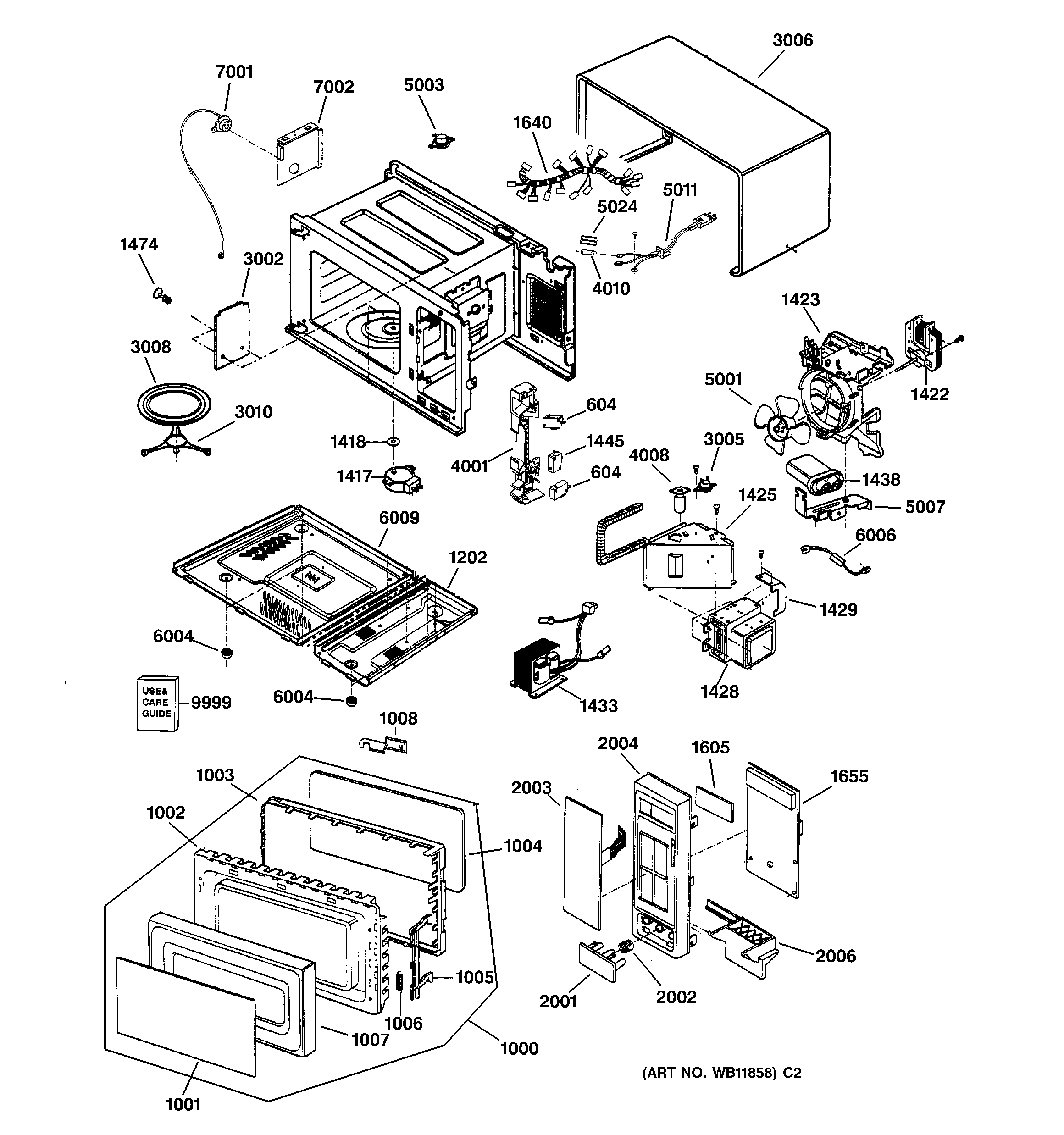

JE1360GB01 0
Products
| Position | Product |
|---|---|
| 604 | PRIMARY INTERLOCK SWITCH |
| 1000 | GEN WB55X10123 |
| 1001 | FRONT SCREEN |
| 1002 | DOOR FRAME ASSY |
| 1003 | GEN WB55X10114 |
| 1004 | GEN WB55X10115 |
| 1005 | WB06X10030 GE Oven Door Key |
| 1006 | GEN WB09X10003 |
| 1007 | GEN WB55X10124 |
| 1008 | GEN WB14X10003 |
| 1202 | GEN WB56X10128 |
| 1417 | GEN WB26X10056 |
| 1418 | GEN WB06X10204 |
| 1422 | MOTOR(CIRC),FAN |
| 1423 | GUIDE,SUCTION |
| 1425 | GEN WB06X10208 |
| 1428 | GEN WB27X10316 |
| 1429 | GEN WB06X10211 |
| 1433 | TRANSFORMER,HIGH VOL |
| 1438 | CAPACITOR,HIGH VOLTA |
| 1445 | WB24X25397 GE Oven Interlock Monitor Switch |
| 1474 | RIVET ASSY ALL |
| 1605 | DIGITRON COVER |
| 1640 | GEN WB18X10090 |
| 1655 | GEN WB27X10315 |
| 2001 | BUTTON |
| 2002 | SPRING |
| 2003 | KEY MEMBRANE |
| 2004 | CONTROL PANEL |
| 2006 | LEVER,RELEASE |
| 3002 | CANOPY,MICA |
| 3005 | GEN WB24X10045 |
| 3006 | GEN WB56X10079 |
| 3008 | WB49X10139 GE Oven Glass Tray |
| 3010 | TURN TABLE ASSY |
| 4001 | WB02X21787 GE Oven Board Latch |
| 4008 | LAMP[OVEN/BASELESS] |
| 4010 | WB27X10928 GE Oven Line Fuse |
| 5001 | FAN |
| 5003 | THERMOSTAT,BIMETAL |
| 5007 | BRACKET,HVC |
| 5011 | GEN WB18X10091 |
| 5024 | GEN WB06X10213 |
| 6004 | GEN WB06X10028 |
| 6006 | DIODE-CABLE |
| 6009 | BASE PLATE |
| 7001 | SENSOR ASS'Y |
| 7002 | GEN WB06X10212 |
| 9999 | GEN 49-40079 |
| 9999 | GEN 31-20914 |
