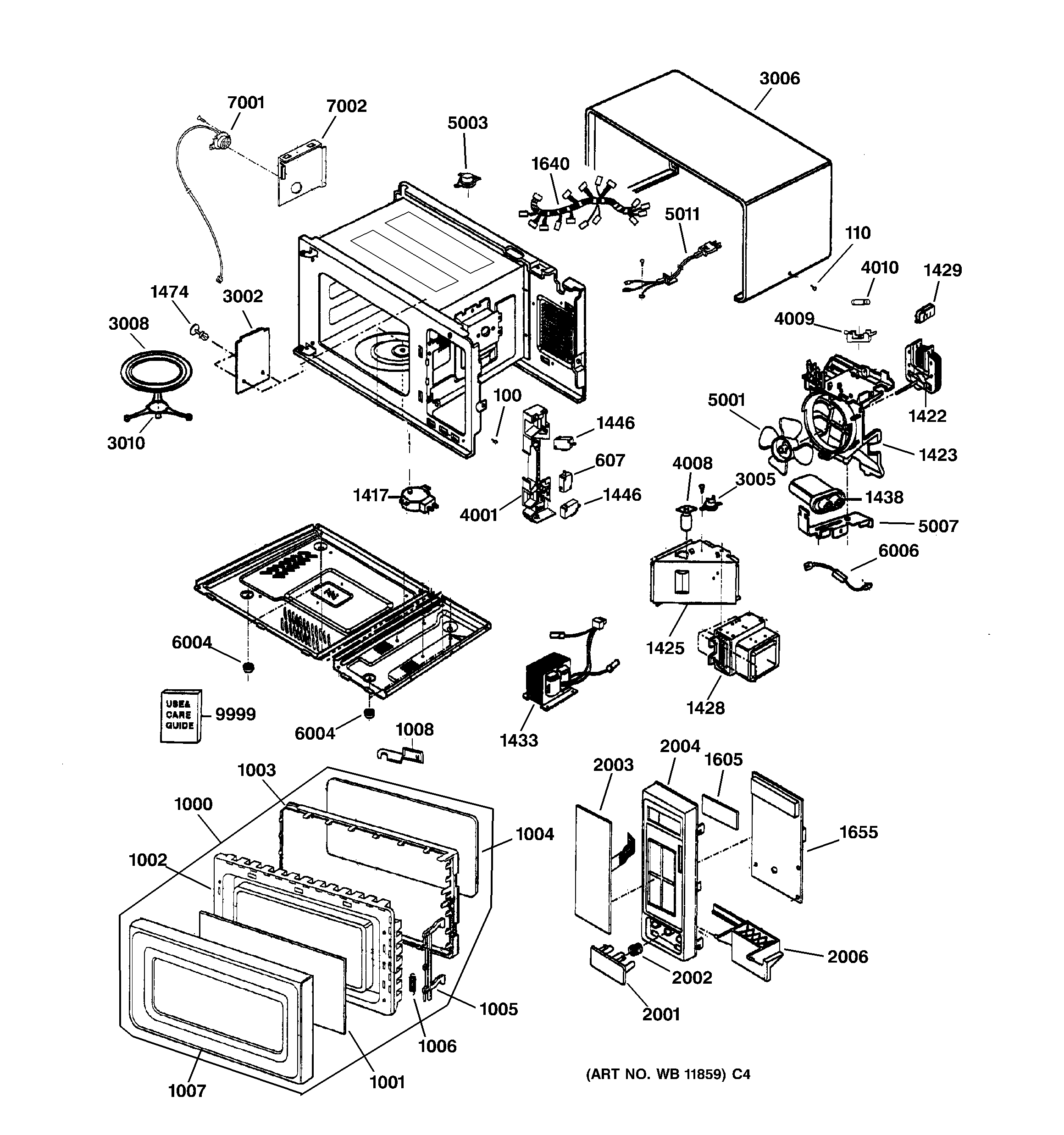

JE1360WC01 MICROWAVE PARTS
Products
| Position | Product |
|---|---|
| 100 | GEN WB01X1517 |
| 110 | WB1X1511 GE Screw |
| 607 | WB24X25397 GE Oven Interlock Monitor Switch |
| 1000 | DOOR ASS'Y. |
| 1001 | FRONT SCREEN,ALL |
| 1002 | GEN WB55X10279 |
| 1003 | GEN WB55X10114 |
| 1004 | GEN WB55X10115 |
| 1005 | WB06X10030 GE Oven Door Key |
| 1006 | GEN WB09X10003 |
| 1007 | GEN WB55X10360 |
| 1008 | GEN WB14X10003 |
| 1417 | GEN WB26X10076 |
| 1422 | MOTOR(CIRC),FAN |
| 1423 | GUIDE,SUCTION |
| 1425 | GEN WB06X10234 |
| 1428 | MAGNETRON |
| 1429 | INSULATOR |
| 1433 | GEN WB27X10398 |
| 1438 | GEN WB27X10405 |
| 1446 | PRIMARY INTERLOCK SWITCH |
| 1474 | RIVET ASSY ALL |
| 1605 | DIGITRON COVER |
| 1640 | GEN WB18X10115 |
| 1655 | GEN WB27X10400 |
| 2001 | GEN WB03X10100 |
| 2002 | SPRING |
| 2003 | GEN WB27X10399 |
| 2004 | GEN WB07X10392 |
| 2006 | LEVER,RELEASE |
| 3002 | CANOPY,MICA |
| 3005 | GEN WB24X10058 |
| 3006 | GEN WB56X10076 |
| 3008 | WB49X10139 GE Oven Glass Tray |
| 3010 | TURN TABLE ASSY |
| 4001 | WB02X21787 GE Oven Board Latch |
| 4008 | LAMP[OVEN/BASELESS] |
| 4009 | GEN WB06X10205 |
| 4010 | WB27X10928 GE Oven Line Fuse |
| 5001 | FAN |
| 5003 | THERMOSTAT,BIMETAL |
| 5007 | BRACKET,HVC |
| 5011 | GEN WB18X10114 |
| 6004 | GEN WB06X10028 |
| 6006 | DIODE-CABLE |
| 7001 | WB24X10057 GE Oven Humidity Sensor |
| 7002 | GEN WB06X10233 |
| 9999 | GEN 31-20950 |
| 9999 | GEN 49-40127 |
