JE1390GA01 0

Products

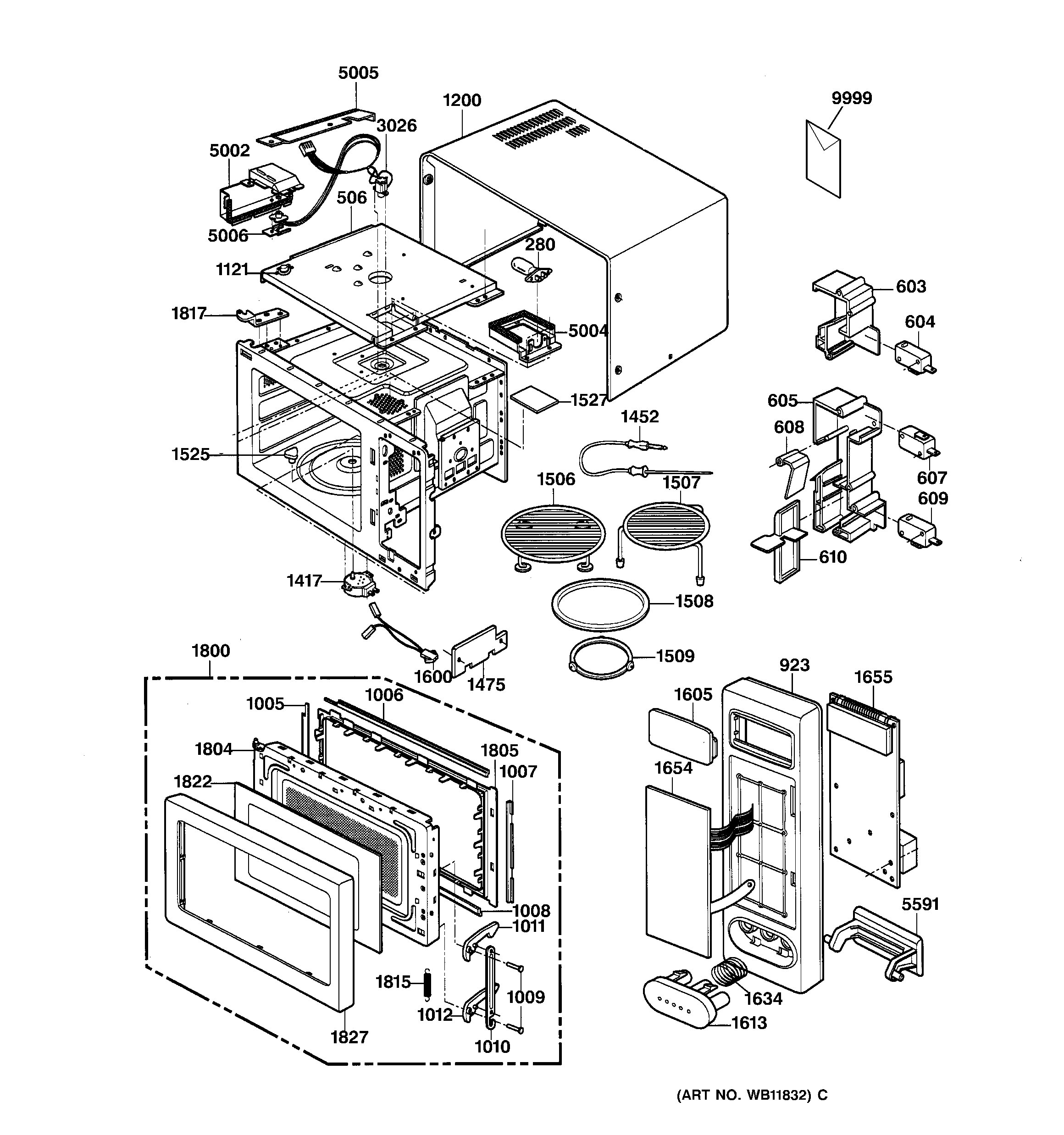

Position	Product
280	LAMP, BASELESS
506	GEN WB06X10108
603	LATCH BODY, UPPER
604	PRIMARY INTERLOCK SWITCH
605	LATCH BODY, LOWER
607	WB24X25397 GE Oven Interlock Monitor Switch
608	LEVER, SWITCH
609	SWITCH, DOOR SENSING
610	ROD, RELEASE
923	CONTROL PANEL, BLK
1005	GEN WB02X10543
1006	GEN WB02X10544
1007	GEN WB02X10545
1008	GEN WB02X10546
1009	GEN WB06X10161
1010	GEN WB02X10547
1011	GEN WB02X10548
1012	GEN WB02X10549
1121	WB21X10149 GE Oven Thermostat
1200	CASE, OUTER – GREYSTONE
1417	MOTOR, TURNTABLE
1452	PROBE, TEMPERATURE
1475	COVER, WAVEGUIDE
1506	RACK, SHELF-LOWER
1507	RACK, SHELF-UPPER
1508	TRAY, COOKING
1509	GEN WB02X10550
1525	SUPPORT,TURNTABLE SHAFT
1527	GLASS, LAMP
1600	WIRE ASM, TURNTABLE
1605	DISPLAY, WINDOW
1613	BUTTON, DOOR PUSH
1634	SPRING, RELEASE BUTTON
1654	GEN WB27X10153
1655	SMARTBOARD
1800	GEN WB55X10132
1804	GEN WB55X10130
1805	GEN WB55X10131
1815	GEN WB09X10007
1817	HINGE, UPPER
1822	GEN WB55X10134
1827	GEN WB55X10133
3026	SENSOR,TEMP JACK ASM
5002	GEN WB02X10552
5004	GEN WB02X10553
5005	GEN WB02X10554
5006	GEN WB02X10555
5591	LEVER, RELEASE
7000	SCR 8-18 AB PHR 1/2 S
9999	GEN 31-20209
9999	GEN 49-40057
