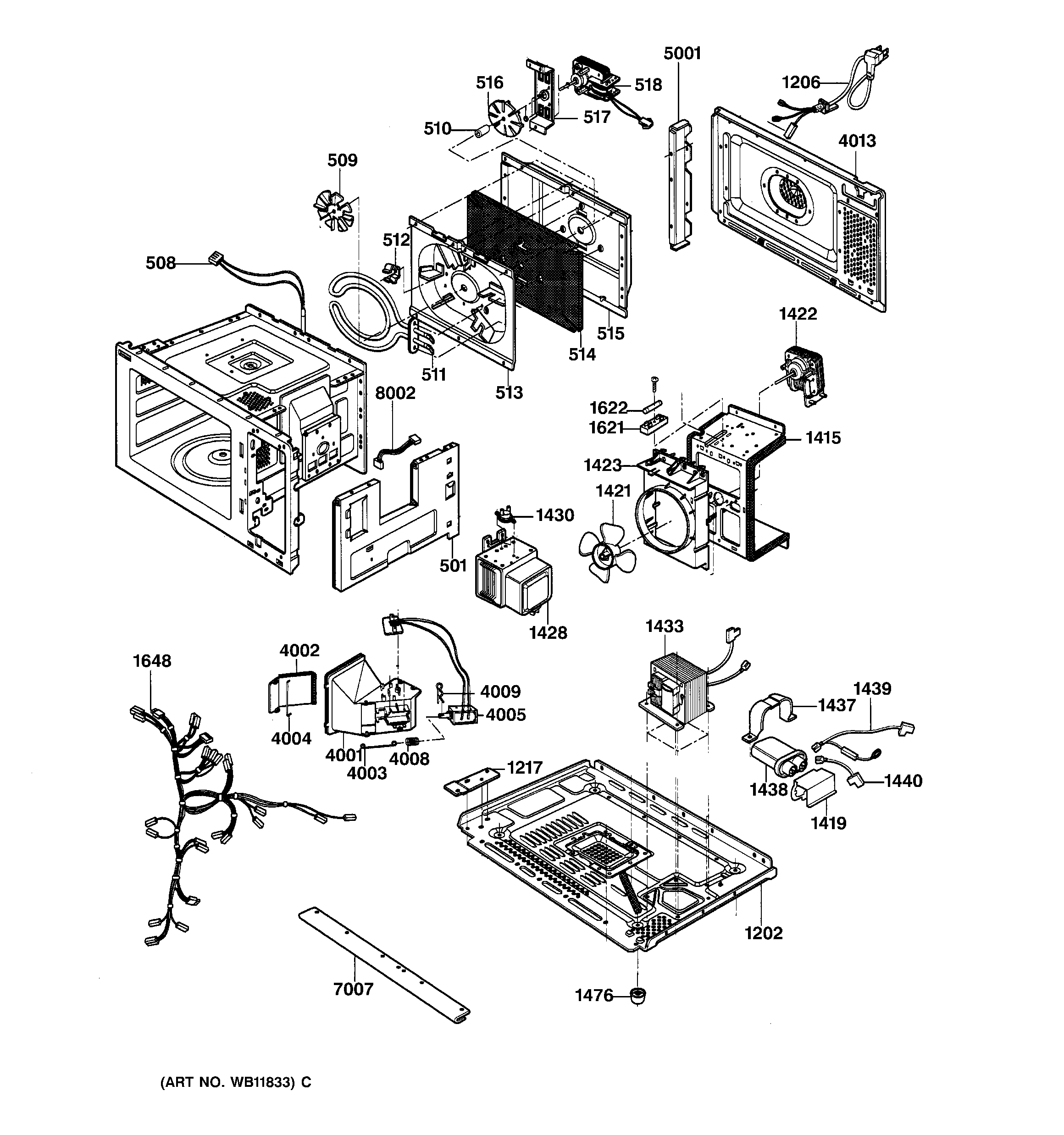

JE1390GA01 1
Products
| Position | Product |
|---|---|
| 501 | GEN WB06X10107 |
| 508 | GEN WB18X0556 |
| 509 | BLADE,CIRCULATION FAN |
| 510 | WB1X1518 GE Ringshaft |
| 511 | HEATER ASM |
| 512 | HOLDER, HEATER ASM |
| 513 | GEN WB06X10109 |
| 514 | WOOL, GLASS |
| 515 | GEN WB06X10110 |
| 516 | WB6X475 GE Oven Blade Motor CL |
| 517 | WB02X10542 GE Range Motor Bracket |
| 518 | MOTOR, HEATER |
| 1202 | GEN WB56X10080 |
| 1206 | GEN WB18X0555 |
| 1217 | HINGE, LOWER |
| 1415 | BRACKET, MOTOR MOUNT |
| 1419 | GEN WB02X10575 |
| 1421 | WB38X10005 GE Oven Fan Blade |
| 1422 | MOTOR, FAN |
| 1423 | ORIFICE, SUCTION GUIDE |
| 1430 | TCO, MAG |
| 1433 | GEN WB27X10150 |
| 1437 | GEN WB02X10556 |
| 1438 | CAPACITOR,HIGH VOLTAGE |
| 1439 | GEN WB27X10151 |
| 1440 | WIRE ASSY,HIGH VOLTAGE |
| 1476 | FOOT |
| 1621 | HOLDER, FUSE |
| 1622 | GEN WB27X1089 |
| 1648 | WIRE HARNESS, MAIN |
| 4001 | DUCT, AIR |
| 4002 | BRACKET, DAMPER |
| 4003 | CONNECTOR, DAMPER |
| 4004 | SHAFT, DAMPER |
| 4005 | GEN WB08X10008 |
| 4008 | SPRING, SOLENOID |
| 4009 | PIN, SNAP |
| 4013 | COVER, BACK |
| 5001 | GEN WB02X10551 |
| 7007 | FRONT, DECORATIVE |
| 8002 | GEN WB18X10067 |
