JE1390WV01 0

JE1390WV01 0

Written by

in

JE1390WV01 0

Products

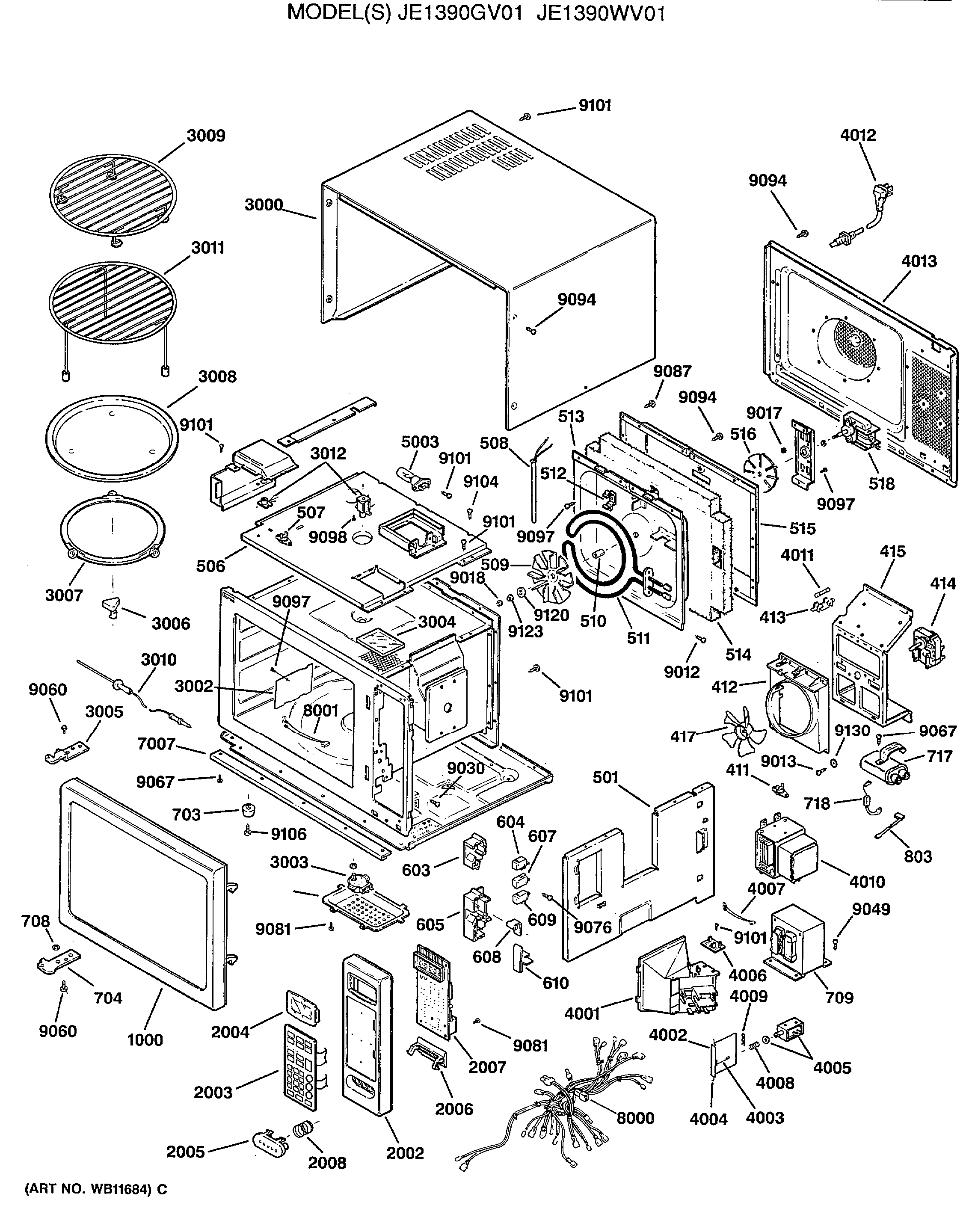

Position	Product
411	TCO, MAG
412	ORIFICE, SUCTION GUIDE
413	HOLDER, FUSE
414	MOTOR, FAN
415	BRACKET, MOTOR MOUNT
417	WB38X10005 GE Oven Fan Blade
507	TCO UPPER&LOWER HALOGEN
508	GEN WB18X0556
509	BLADE,CIRCULATION FAN
510	WB1X1518 GE Ringshaft
511	HEATER ASM
512	HOLDER, HEATER ASM
514	WOOL, GLASS
516	WB6X475 GE Oven Blade Motor CL
518	MOTOR, HEATER
603	LATCH BODY, UPPER
604	PRIMARY INTERLOCK SWITCH
605	LATCH BODY, LOWER
607	WB24X25397 GE Oven Interlock Monitor Switch
608	LEVER, SWITCH
609	SWITCH, DOOR SENSING
610	ROD, RELEASE
703	FOOT
704	HINGE, LOWER
708	GEN WB01X1503
709	GEN WB27X1087
717	CAPACITOR,HIGH VOLTAGE
718	GEN WB18X0560
803	GEN WB18X0559
1000	GEN WB55X0970
2002	GEN WB07X2075
2003	GEN WB27X1091
2004	DISPLAY, WINDOW
2005	GEN WB03X0879
2006	LEVER, RELEASE
2007	SMARTBOARD
2008	SPRING, RELEASE BUTTON
3000	GEN WB56X2176
3002	COVER, WAVEGUIDE
3003	MOTOR, TURNTABLE
3004	GLASS, LAMP
3005	HINGE, UPPER
3006	SUPPORT,TURNTABLE SHAFT
3007	GEN WB06X0456
3008	TRAY, COOKING
3009	RACK, SHELF-LOWER
3010	PROBE, TEMPERATURE
3011	RACK, SHELF-UPPER
3012	SENSOR,TEMP JACK ASM
4001	DUCT, AIR
4002	BRACKET, DAMPER
4003	CONNECTOR, DAMPER
4004	SHAFT, DAMPER
4005	GEN WB27X1084
4006	GEN WB27X1085
4007	GEN WB18X0554
4008	SPRING, SOLENOID
4009	PIN, SNAP
4011	GEN WB27X1089
4012	GEN WB18X0555
4013	COVER, BACK
5003	LAMP, BASELESS
7007	FRONT, DECORATIVE
8000	WIRE HARNESS, MAIN
8001	WIRE ASM, TURNTABLE
9012	WB1X1504 GE Truss Screw
9013	GEN WB01X1505
9017	GEN WB01X1519
9018	WB1X1520 GE Oven Hexagon Nut
9030	GEN WB01X1517
9049	GEN WB01X1506
9060	GEN WB01X1507
9067	GEN WB01X1508
9076	GEN WB01X1509
9081	GEN WB01X1510
9094	WB1X1511 GE Screw
9097	GEN WB01X1512
9098	GEN WB01X1513
9101	WB1X1514 GE Oven Screw
9106	WB1X1515 GE Oven Screw
9130	GEN WB01X1516
9999	GEN 49-8570
9999	GEN 31-20209
9999	GEN 49-8647
