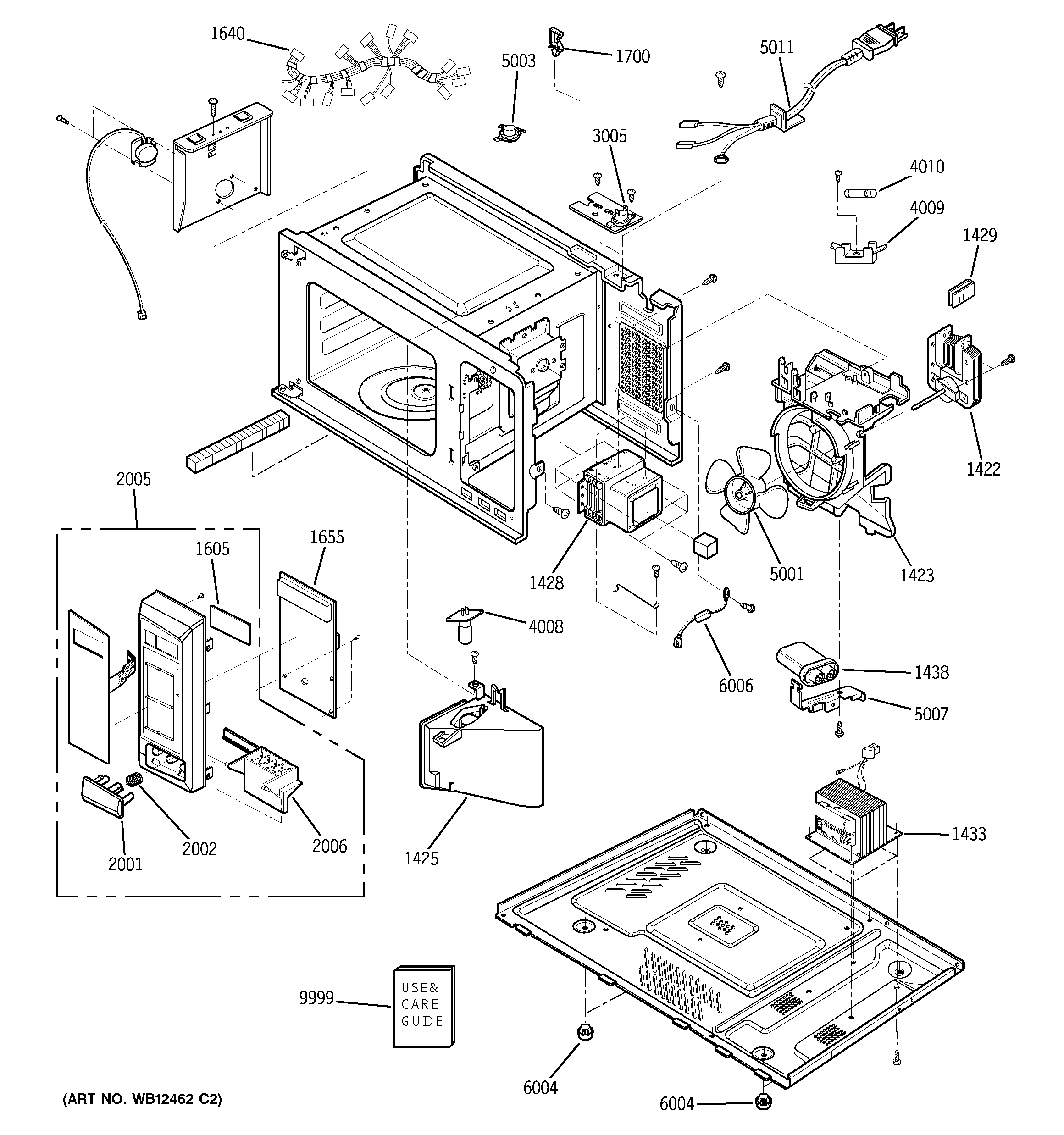

JE1440BF001 CONTROL PANEL, BODY, BASE PLATE & SENSOR PARTS

JE1440BF001 CONTROL PANEL, BODY, BASE PLATE & SENSOR PARTS

Written by

in

JE1440BF001 CONTROL PANEL, BODY, BASE PLATE & SENSOR PARTS

Products

PositionProduct
1422GEN WB26X10096
1423GUIDE,SUCTION
1425GEN WB06X10234
1428GEN WB27X10611
1429INSULATOR
1433GEN WB27X10610
1438CAPACITOR, H. V.
1605DIGITRON COVER
1640GEN WB18X10188
1655GEN WB27X10609
1700WB02X10532 GE Oven Wire Holder
2001GEN WB03X10101
2002SPRING
2005GEN WB27X10615
2006LEVER,RELEASE
3005GEN WB24X10058
4008LAMP[OVEN/BASELESS]
4009GEN WB06X10205
4010WB27X10928 GE Oven Line Fuse
5001GEN WB38X10068
5003THERMOSTAT,BIMETAL
5007BRACKET,HVC
5011GEN WB18X10187
6004CAP,MWO
6006DIODE-CABLE
9999GEN 31-40300
9999GEN 49-40230-1
