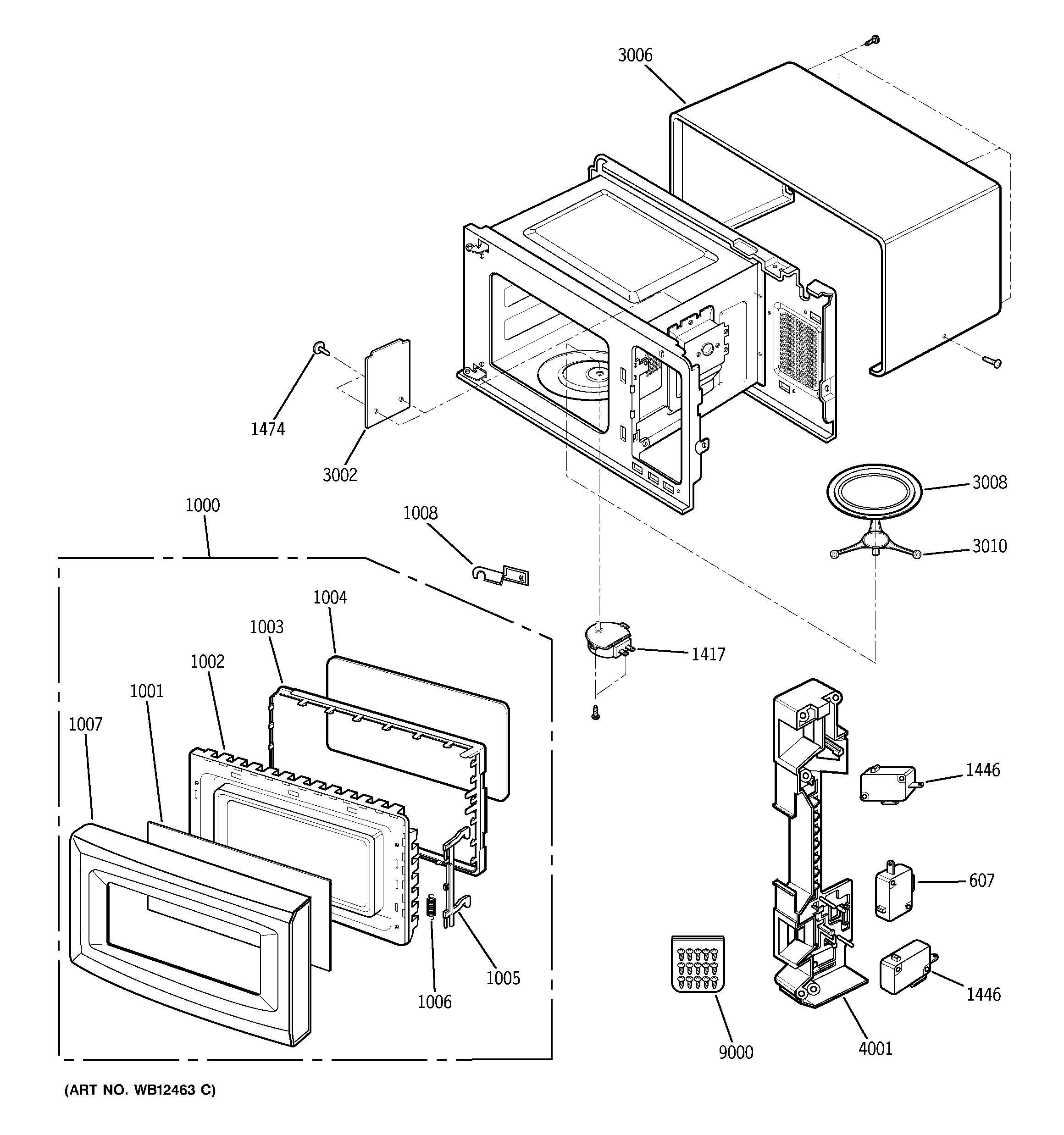

JE1440BF001 OVEN, DOOR & LATCH BOARD PARTS

JE1440BF001 OVEN, DOOR & LATCH BOARD PARTS

Written by

in

JE1440BF001 OVEN, DOOR & LATCH BOARD PARTS

Products

PositionProduct
607WB24X25397 GE Oven Interlock Monitor Switch
1000GEN WB55X10365
1001FRONT SCREEN,ALL
1002DOOR FRAME ASSY
1003GEN WB55X10114
1004GEN WB55X10115
1005WB06X10030 GE Oven Door Key
1006WB09X10015 GE Oven Spring
1007GEN WB55X10366
1008GEN WB14X10003
1417GEN WB26X10076
1446PRIMARY INTERLOCK SWITCH
1474RIVET ASSY ALL
3002CANOPY,MICA
3006GEN WB56X10257
3008WB49X10139 GE Oven Glass Tray
3010TURN TABLE ASSY
4001WB02X21787 GE Oven Board Latch
9000GEN WB01X10173
