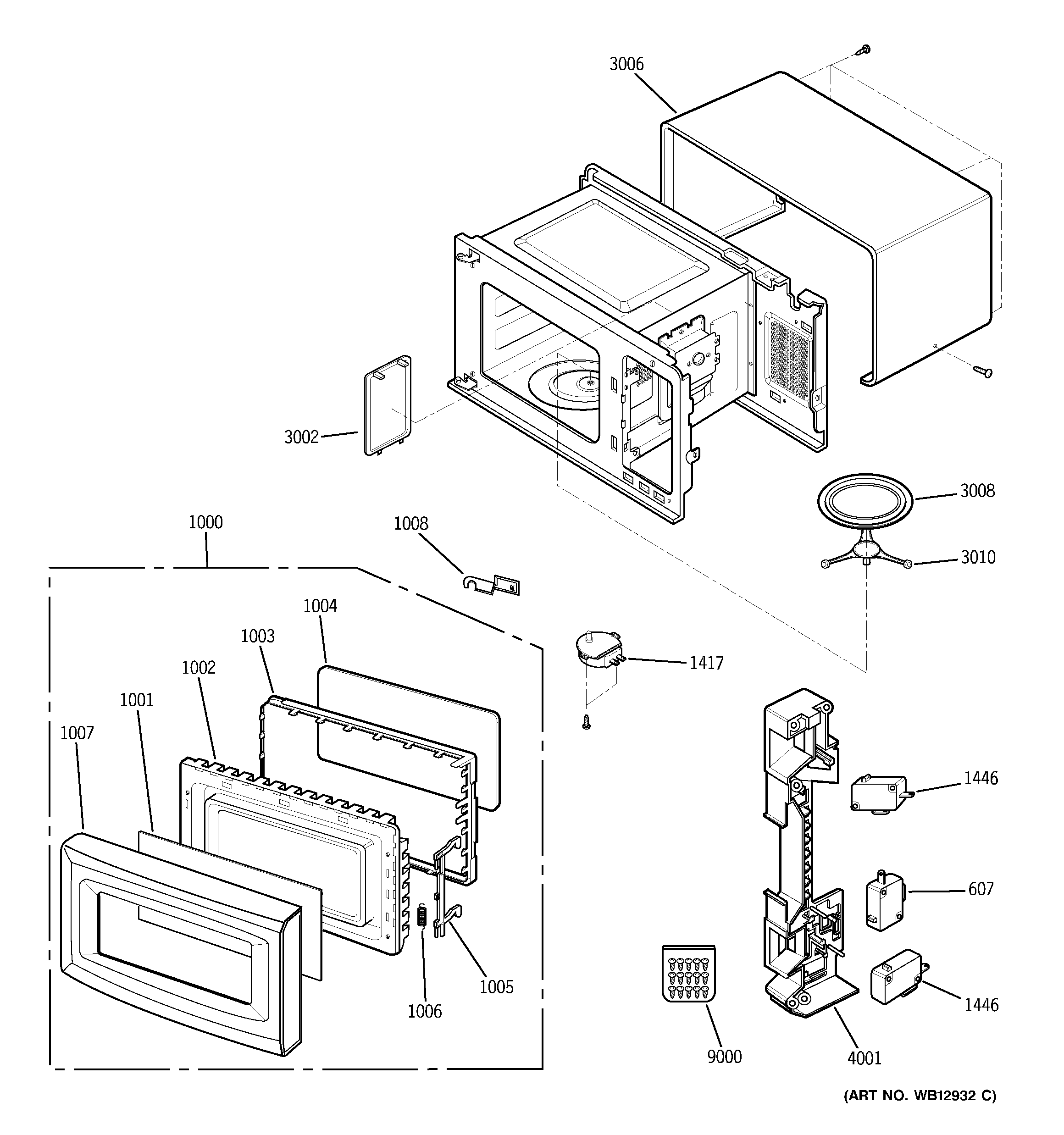

JE1440BF002 OVEN, DOOR & LATCH BOARD PARTS

JE1440BF002 OVEN, DOOR & LATCH BOARD PARTS

Written by

in

JE1440BF002 OVEN, DOOR & LATCH BOARD PARTS

Products

PositionProduct
607WB24X25397 GE Oven Interlock Monitor Switch
1000DOOR ASM BK
1001GEN WB55X10688
1002DOOR FRAME ASM BLK
1003GEN WB55X10690
1004GEN WB55X10691
1005LATCH,ALL
1006WB09X10015 GE Oven Spring
1007GEN WB55X10366
1008CAP,MWO
1417WB26X10143 GE Oven Turntable Drive Motor
1446PRIMARY INTERLOCK SWITCH
3002WB06X10764 GE Oven Cover Assembly (Resin)
3006OUTER CASE BK
3008WB49X10139 GE Oven Glass Tray
3010WB06X10549 GE Oven Rotating Ring Assembly
4001WB02X21662 GE Oven Latch Board
9000GEN WB01X10252
