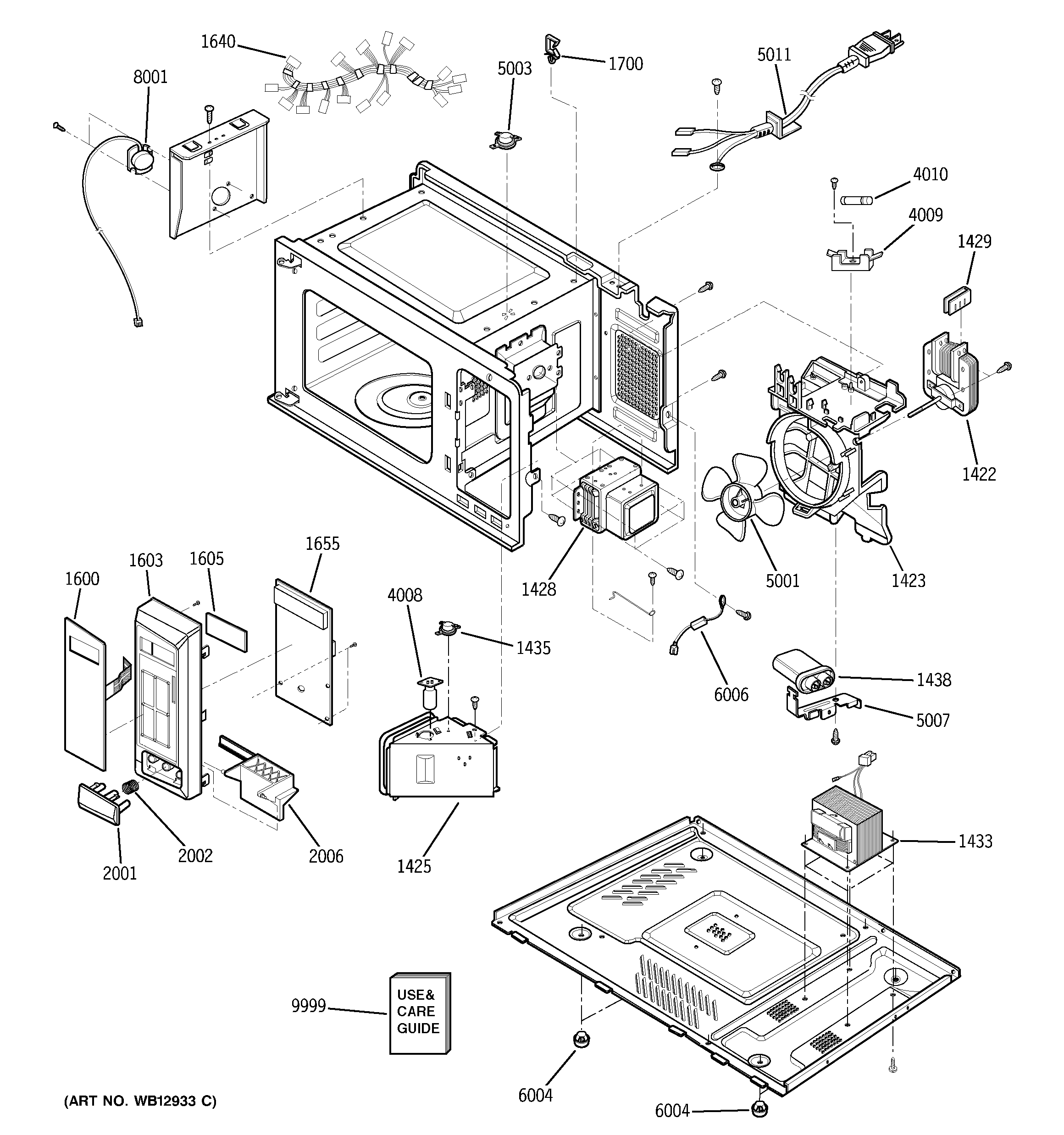

JE1440WF002 CONTROL PANEL, BODY, BASE PLATE & SENSOR PARTS

JE1440WF002 CONTROL PANEL, BODY, BASE PLATE & SENSOR PARTS

Written by

in

JE1440WF002 CONTROL PANEL, BODY, BASE PLATE & SENSOR PARTS

Products

PositionProduct
1422WB26X10144 GE Microwave Fan Motor
1423WB38X10146 GE Oven Suction Guide
1425GEN WB06X10543
1428MAGNETRON
1429WB06X10544 GE Oven Insulator
1433GEN WB27X10758
1435GEN WB24X10124
1438WB27X11033 GE Oven High Voltage Capacitor
1600KEY PANEL WH
1603CONTROL PANEL WHT
1605DIGITRON COVER
1640GEN WB18X10240
1655GEN WB27X10759
1700WB02X10532 GE Oven Wire Holder
2001GEN WB03X10100
2002WB09X10006 GE Oven Button Spring
2006LEVER,RELEASE
4008WB36X10063 GE Microwave Lamp
4009GEN WB06X10205
4010WB27X10928 GE Oven Line Fuse
5001WB38X10078 GE Oven Fan
5003GEN WB27X10461
5007WB06X10306 GE Bracket HVC Microwave
5011GEN WB18X10239
6004GEN WB06X10307
6006DIODE ASSY,DIODE+CAB
9999GEN 49-40230-2
9999GEN 31-40300
