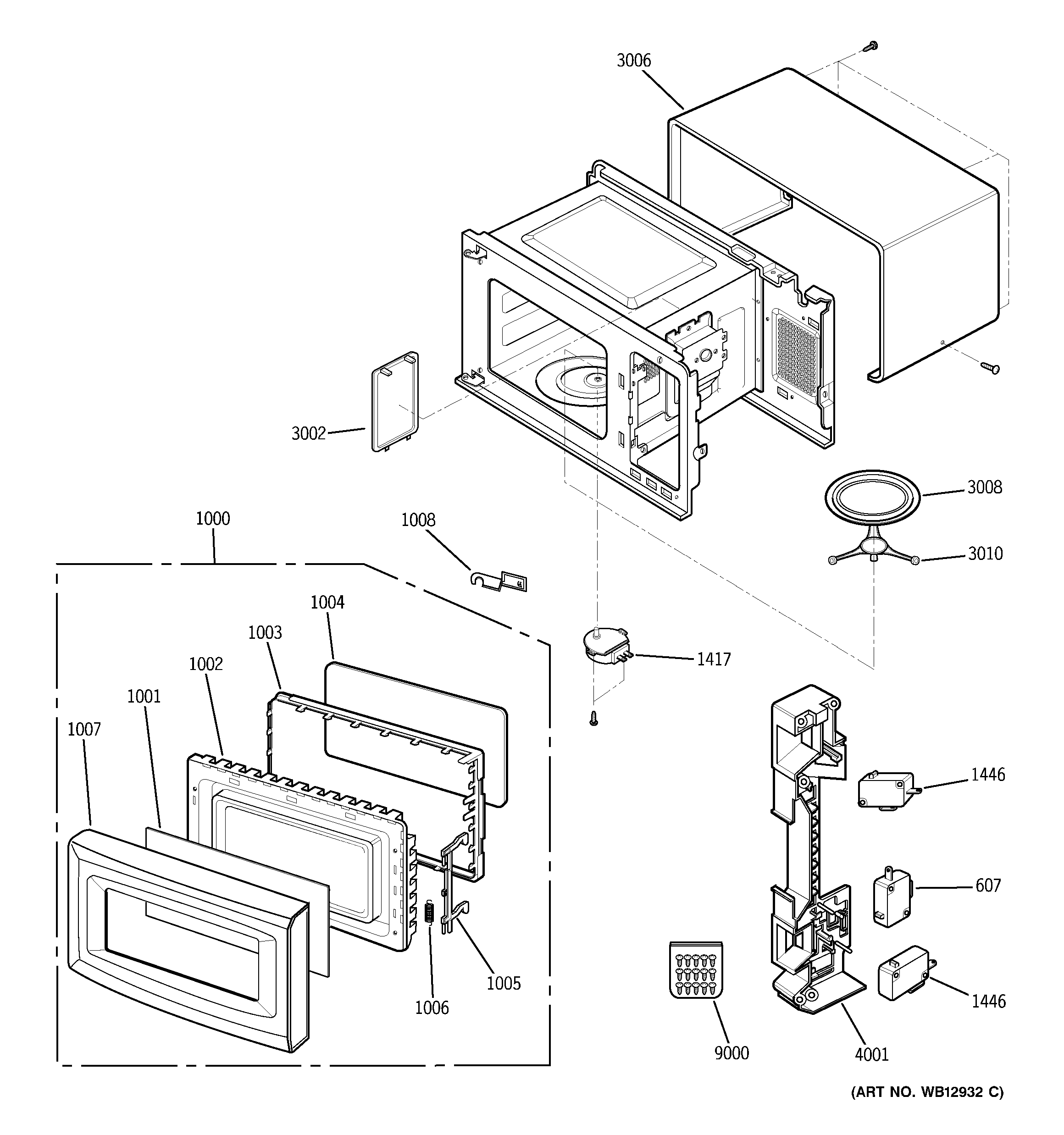

JE1440WF03 OVEN, DOOR & LATCH BOARD PARTS

JE1440WF03 OVEN, DOOR & LATCH BOARD PARTS

Written by

in

JE1440WF03 OVEN, DOOR & LATCH BOARD PARTS

Products

PositionProduct
607WB24X25397 GE Oven Interlock Monitor Switch
1000DOOR ASM WH
1001GEN WB55X10688
1002WB55X10692 GE Door Frame Assembly White
1003GEN WB55X10690
1004GEN WB55X10691
1005LATCH,ALL
1006WB09X10015 GE Oven Spring
1007GEN WB55X10804
1008CAP,MWO
1417WB26X10143 GE Oven Turntable Drive Motor
1446PRIMARY INTERLOCK SWITCH
3002WB06X10764 GE Oven Cover Assembly (Resin)
3006GEN WB56X10476
3008WB49X10139 GE Oven Glass Tray
3010WB06X10549 GE Oven Rotating Ring Assembly
4001WB02X21662 GE Oven Latch Board
9000WB01X10296 GE Hardware Assembly Bag
