JE1590CC01 MICROWAVE

JE1590CC01 MICROWAVE

Written by

in

JE1590CC01 MICROWAVE

Products

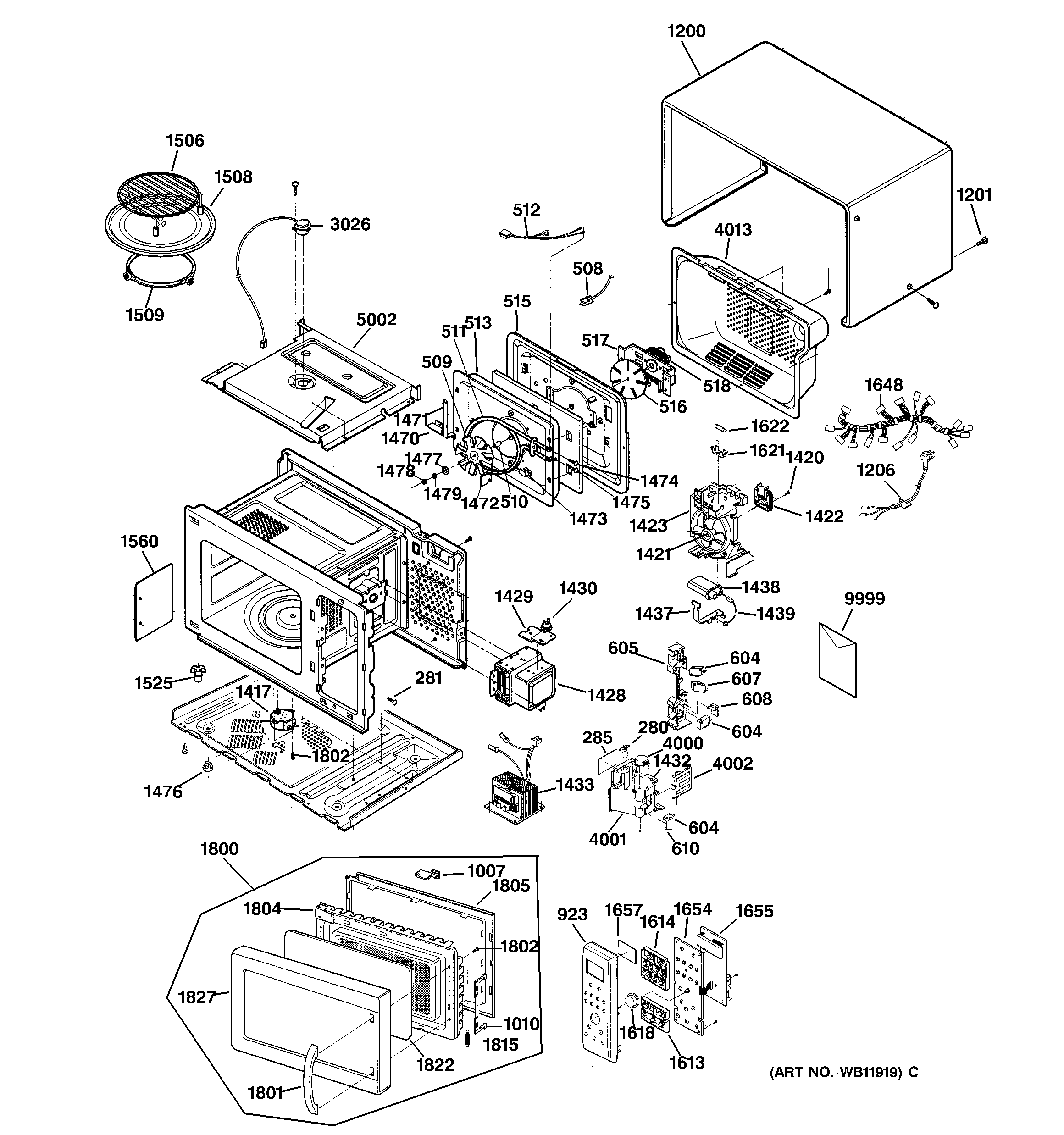

PositionProduct
280WB36X10131 GE Microwave Oven Cavity Lamp 30W 125V
281GEN WB01X1517
285COVER – LAMP
508WB18X10126 GE Oven Thermistor
509WB26X32609 GE Oven Fan Motor
510WB1X1518 GE Ringshaft
511GEN WB06X10265
512LEAD WIRE ASM
513GEN WB06X10262
515GEN WB06X10263
516WB6X475 GE Oven Blade Motor CL
517WB02X10542 GE Range Motor Bracket
518WB26X10084 GE Microwave Cooling Fan Motor
604PRIMARY INTERLOCK SWITCH
605GEN WB06X10256
607WB24X25397 GE Oven Interlock Monitor Switch
608GEN WB06X10259
610GEN WB01X1509
923GEN WB07X10402
1007GEN WB02X10718
1010WB02X11096 GE Oven Latch
1200OUTER CASE BQ
1201WB02X10727 GE Screw
1206GEN WB18X10124
1417GEN WB26X10082
1420GEN WB02X10720
1421WB38X10005 GE Oven Fan Blade
1422WB26X10085 GE Oven Fan Motor
1423GEN WB06X10261
1428MAGNETRON
1429WB06X10570 GE Microwave Bracket
1430TCO, MAG
1432GEN WB20X10020
1433GEN WB27X10398
1437BRACKET,HVC
1438GEN WB27X10418
1439DIODE-CABLE
1470GEN WB02X10723
1471GEN WB02X10722
1472GEN WB02X10724
1473WB02X32605 GE Heater Holder
1474WB02X10726 GE Screw
1475WB1X1504 GE Truss Screw
1476CAP,MWO
1478WB1X1520 GE Oven Hexagon Nut
1506GEN WB48X10015
1508WB49X10129 GE Oven Microwave Turntable Glass Cooking Tray
1509GEN WB02X10719
1525GEN WB06X10255
1560WB06X10254 GE Microwave Waveguide Cover
1613GEN WB03X10112
1614GEN WB03X10111
1618GEN WB03X10113
1621GEN WB06X10205
1622WB27X10928 GE Oven Line Fuse
1648GEN WB18X10125
1654GEN WB07X10401
1655GEN WB27X10423
1657GEN WB27X10424
1800GEN WB55X10390
1801GEN WB55X10391
1802SCREW TAPPING,PAN HEAD
1804WB55X10384 GE Oven Door Frame Assembly
1805GEN WB55X10385
1815GEN WB09X10014
1822GEN WB55X10392
1827GEN WB55X10393
3026SENSOR ASS'Y
4000WB26X10248 GE Oven Synchronous AC Motor
4001GEN WB06X10257
4002GEN WB06X10260
4013GEN WB56X10184
5002GEN WB02X10725
9999GEN 49-40132
9999GEN 49-40131
9999GEN 49-40130
9999GEN 49-40128
9999GEN 31-20947
9999GEN JX1527CCC
9999GEN JX1530CCC
