JE1590CH01 MICROWAVE

JE1590CH01 MICROWAVE

Written by

in

JE1590CH01 MICROWAVE

Products

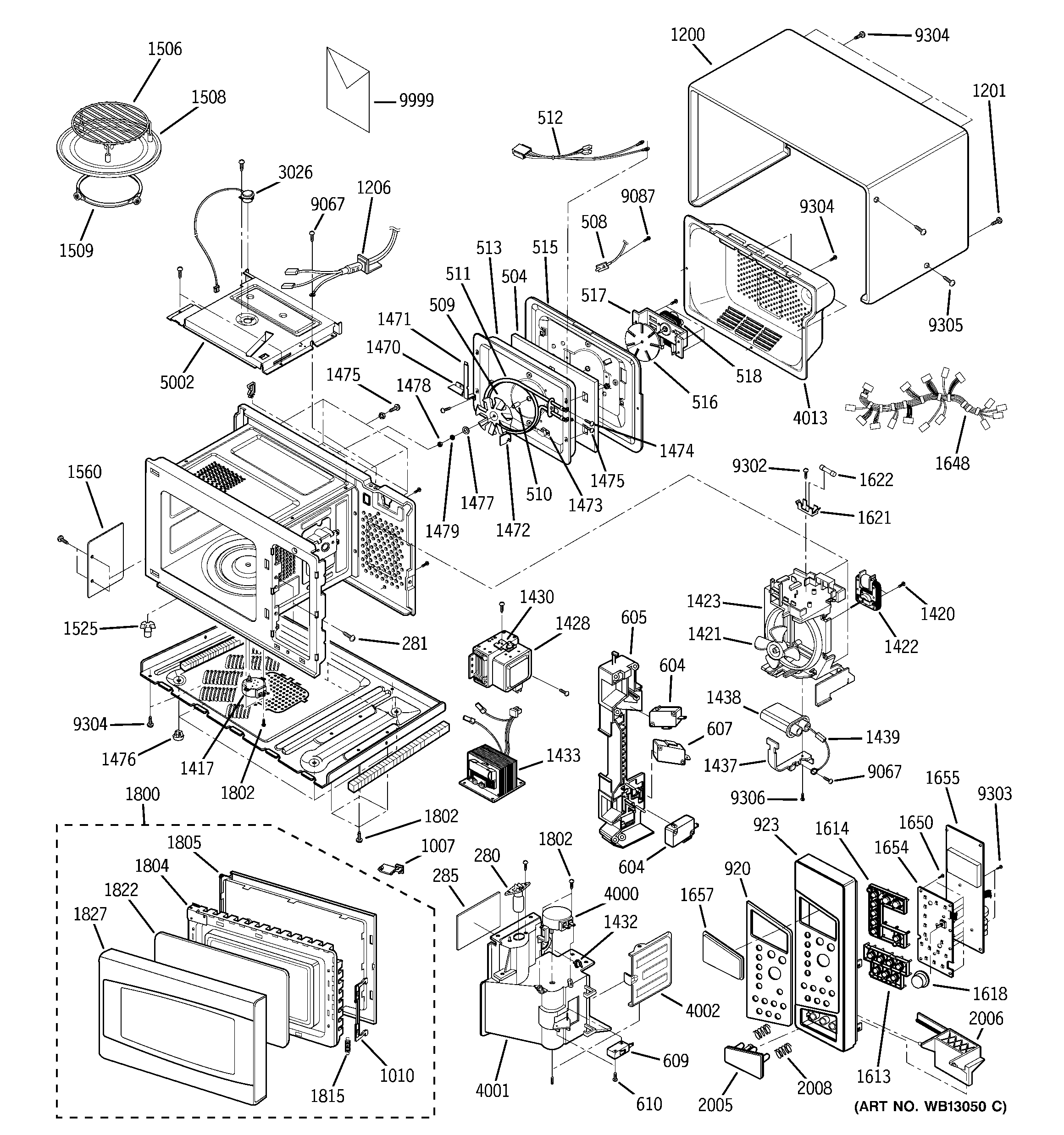

PositionProduct
280WB36X10131 GE Microwave Oven Cavity Lamp 30W 125V
281WB01X10121 GE Oven Screw
285COVER – LAMP
504GEN WB06X10575
508WB18X10126 GE Oven Thermistor
509WB26X32609 GE Oven Fan Motor
510WB1X1518 GE Ringshaft
511GEN WB06X10265
512GEN WB18X10250
513GEN WB06X10263
515GEN WB06X10262
516WB6X475 GE Oven Blade Motor CL
517WB02X10542 GE Range Motor Bracket
518WB26X10084 GE Microwave Cooling Fan Motor
604PRIMARY INTERLOCK SWITCH
605WB02X21787 GE Oven Board Latch
607WB24X25397 GE Oven Interlock Monitor Switch
610GEN WB01X1509
920GEN WB27X10797
923PANEL CONTROL BQ
1007GEN WB02X10718
1010WB06X10030 GE Oven Door Key
1200OUTER CASE BQ
1201WB02X10727 GE Screw
1206POWER CORD ASM
1417GEN WB26X10082
1420GEN WB02X10720
1421WB38X10005 GE Oven Fan Blade
1422WB26X10085 GE Oven Fan Motor
1423GEN WB06X10261
1428MAGNETRON
1430MGT THERMO ASSY
1432WB20X10048 GE Oven Thermostat
1433GEN WB27X10795
1437BRACKET,HVC
1438GEN WB27X10418
1439DIODE-CABLE
1470GEN WB02X10723
1471GEN WB02X10722
1472GEN WB02X10724
1473WB02X32605 GE Heater Holder
1474WB02X10726 GE Screw
1475WB1X1504 GE Truss Screw
1476CAP,MWO
1478WB1X1520 GE Oven Hexagon Nut
1506GEN WB48X10015
1508WB49X10129 GE Oven Microwave Turntable Glass Cooking Tray
1509GEN WB02X10719
1525GEN WB06X10255
1560WB06X10254 GE Microwave Waveguide Cover
1613GEN WB03X10228
1614GEN WB03X10229
1618GEN WB03X10231
1621GEN WB06X10205
1622WB27X10928 GE Oven Line Fuse
1648GEN WB18X10251
1650WB02X10730 GE Pan Head Tapping Screw
1654GEN WB27X10792
1655GEN WB27X10791
1657WB27X10793 GE Oven Digitron Window
1800DOOR ASM BQ
1802SCREW TAPPING,PAN HEAD
1804WB55X10384 GE Oven Door Frame Assembly
1805GEN WB55X10385
1815WB09X10015 GE Oven Spring
1822GEN WB55X10730
1827GEN WB55X10732
2005GEN WB03X10230
2006GEN WB06X10573
2008SPRING
3026SENSOR ASS'Y
4000WB26X10248 GE Oven Synchronous AC Motor
4001GEN WB06X10574
4002GEN WB06X10260
4013GEN WB56X10184
5002GEN WB02X10725
9067WB02X10745 GE Binding Head Screw
9087SCREW TAPPING,TRUSS HEAD
9302WB01X10130 GE Fuse Screw
9303WB02X10729 GE Oven Main PCB Assembly Screw
9304WB1X1511 GE Screw
9305WB1X1514 GE Oven Screw
9306WB1X1515 GE Oven Screw
9999GEN 31-40310
9999GEN 49-40132
9999OWNERS MANUAL
