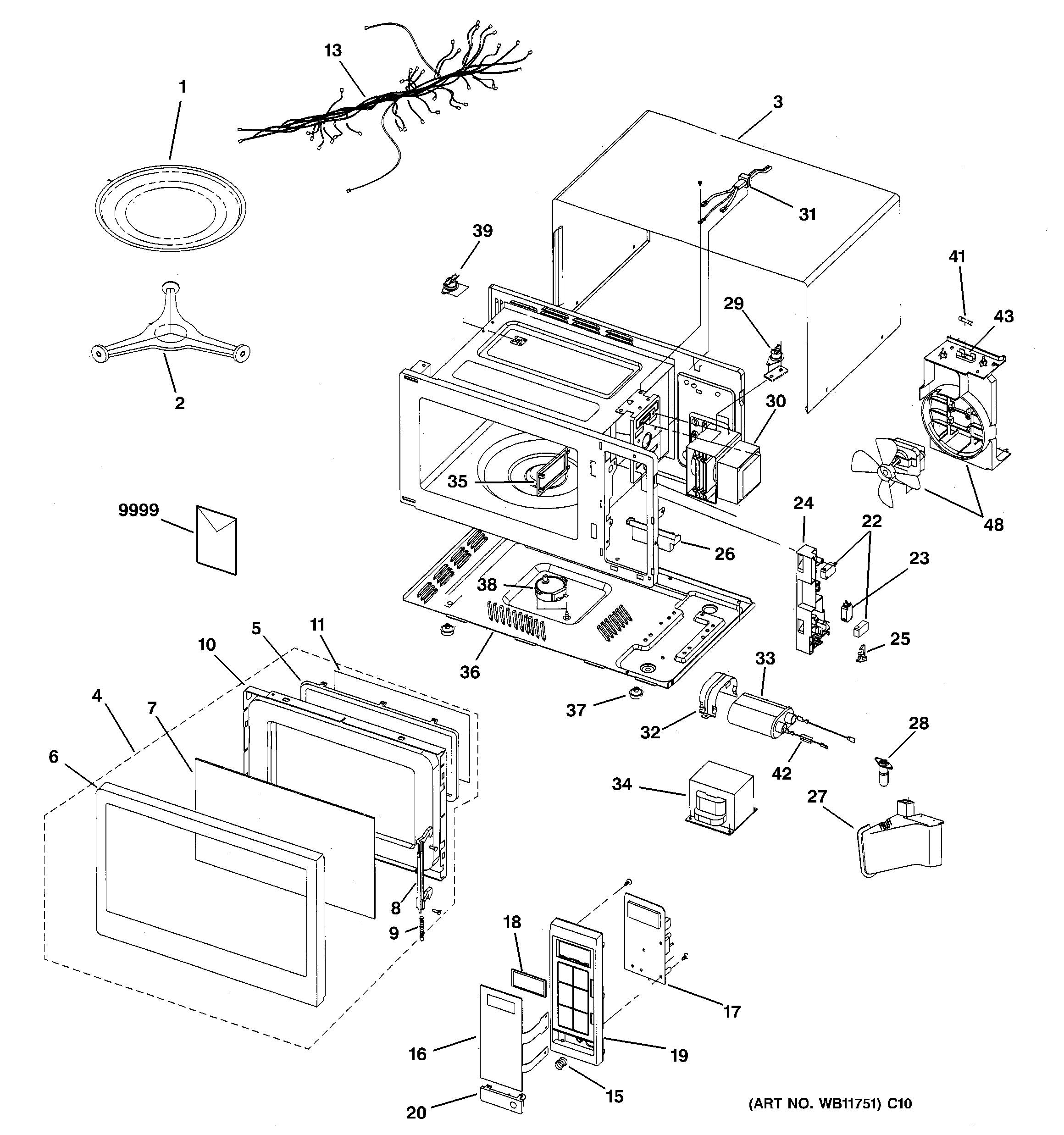

JE1640GB003 MICROWAVE

Products

Position	Product
1	WB49X690 GE Oven Glass Tray
2	ROLLER GUIDE ASSY
3	OUTER CASE
4	GEN WB55X10242
5	DOOR CHOKE
6	GEN WB55X10244
7	GEN WB55X10331
8	LATCH
9	LATCH SPRING
10	DOOR-E ASS'Y
11	GEN WB06X10183
13	ASSY WIRE HARNESS-A
15	GEN WB09X0308
16	GEN WB27X10278
17	GEN WB27X10596
18	GEN WB36X0953
19	GEN WB07X10232
20	BUTTON PUSH
22	WB24X829 GE Oven Microwave Secondary Micro Switch
23	SWITCH
24	LATCH – BODY
25	SWITCH – LEVER
26	WB06X10186 GE Oven Door Lever
27	GEN WB06X10187
28	GEN WB36X10002
29	THERMOSTAT-MAGNETRON
30	WB27X10516 GE Oven Magnetron Assembly
31	POWER CORD ASSEMBLY
32	BRACKET H.V.C
33	CAPACITOR-H.V
34	GEN WB27X10619
35	GEN WB06X10550
36	GEN WB06X10189
37	GEN WB06X0540
38	MOTOR, T/T
39	GEN WB27X10075
41	WB27X10928 GE Oven Line Fuse
42	WB27X1160 GE Microwave High Voltage Diode
43	GEN WB06X10050
48	MOTOR, VENTILATION ASM
9999	GEN 31-20924
9999	GEN 49-40074
