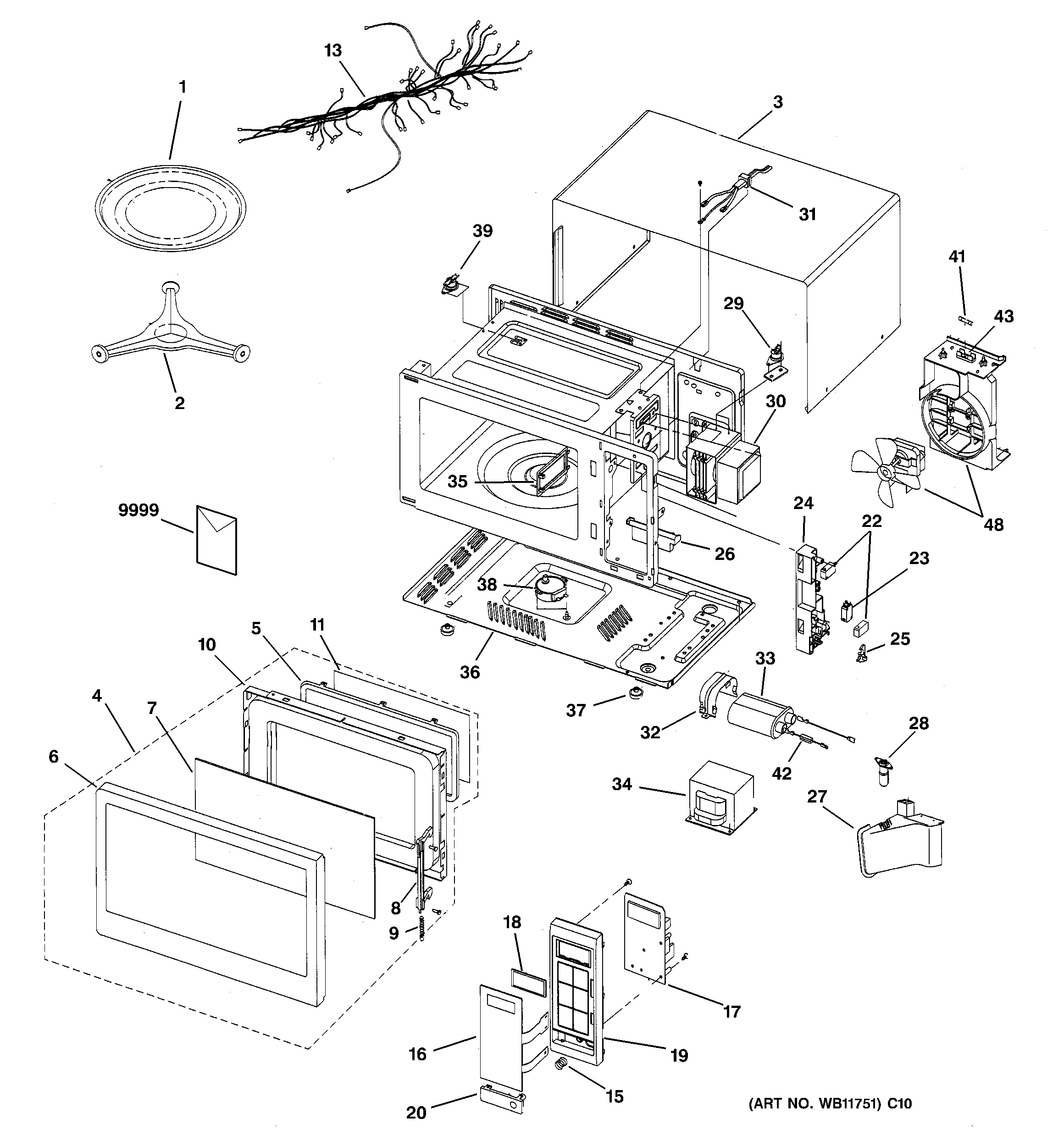

| 1 | WB49X690 GE Oven Glass Tray |
| 2 | ROLLER GUIDE ASSY |
| 3 | OUTER PANEL |
| 4 | DOOR ASSEMBLY |
| 5 | GEN WB55X10247 |
| 6 | GEN WB55X10248 |
| 7 | GEN WB06X10190 |
| 8 | LATCH - WHITE |
| 9 | LATCH SPRING |
| 10 | DOOR ASSEMBLY E |
| 11 | GEN WB06X10183 |
| 13 | ASSY WIRE HARNESS-A |
| 15 | GEN WB09X0308 |
| 16 | GEN WB27X10282 |
| 17 | GEN WB27X10596 |
| 18 | GEN WB36X0953 |
| 19 | GEN WB07X10233 |
| 20 | GEN WB03X10064 |
| 22 | WB24X829 GE Oven Microwave Secondary Micro Switch |
| 23 | SWITCH |
| 24 | LATCH - BODY |
| 25 | SWITCH - LEVER |
| 26 | WB06X10186 GE Oven Door Lever |
| 27 | GEN WB06X10187 |
| 28 | GEN WB36X10002 |
| 29 | THERMOSTAT-MAGNETRON |
| 30 | WB27X10516 GE Oven Magnetron Assembly |
| 31 | POWER CORD ASSEMBLY |
| 32 | BRACKET H.V.C |
| 33 | CAPACITOR-H.V |
| 34 | GEN WB27X10619 |
| 35 | GEN WB06X10550 |
| 36 | GEN WB06X10189 |
| 37 | GEN WB06X0540 |
| 38 | MOTOR, T/T |
| 39 | GEN WB27X10075 |
| 41 | WB27X10928 GE Oven Line Fuse |
| 42 | WB27X1160 GE Microwave High Voltage Diode |
| 43 | GEN WB06X10050 |
| 48 | MOTOR, VENTILATION ASM |
| 9999 | GEN 31-20924 |
| 9999 | GEN 49-40074 |
