JE1640WB01 0

Products

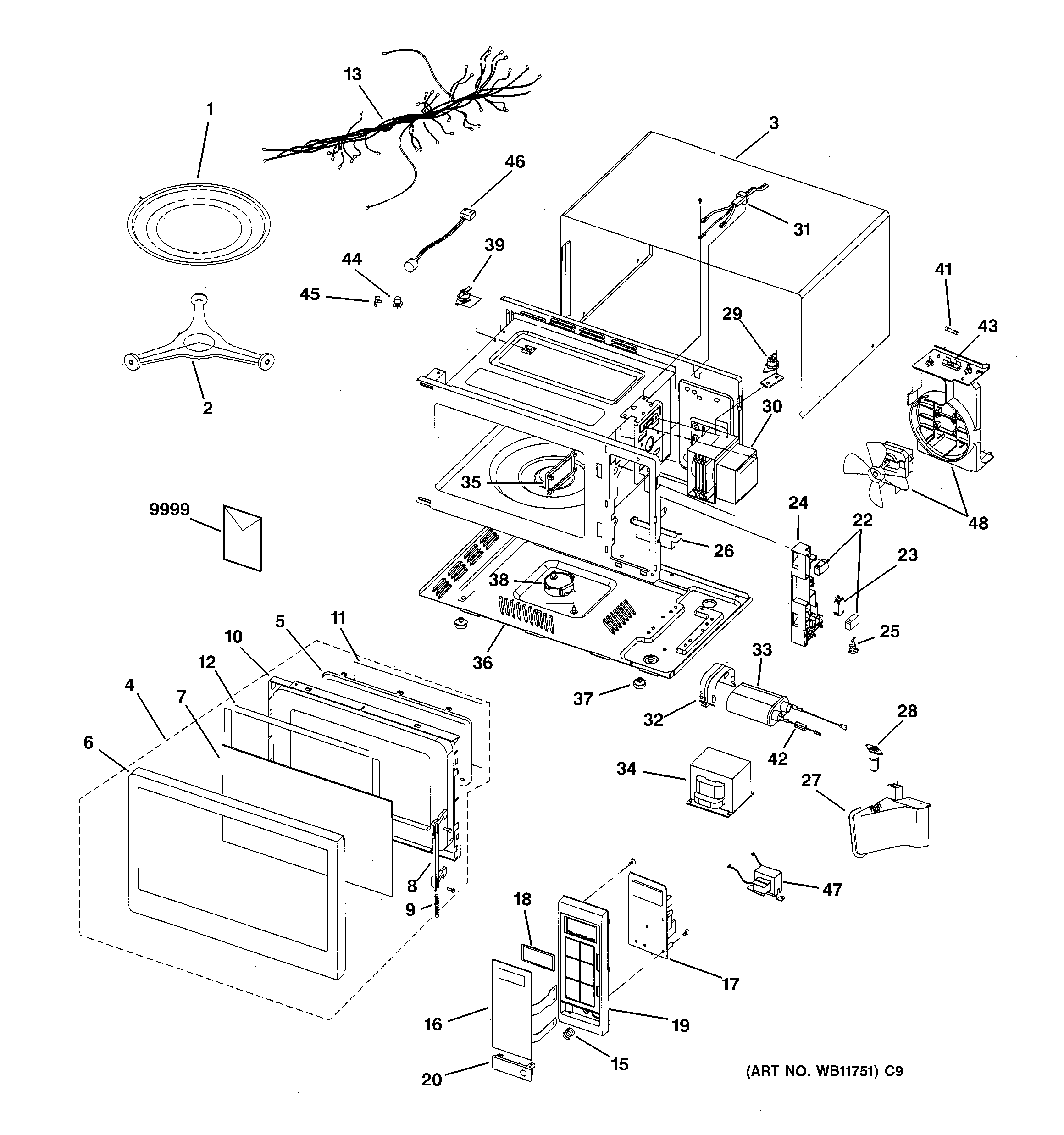

Position	Product
1	WB49X690 GE Oven Glass Tray
2	ROLLER GUIDE ASSY
3	OUTER PANEL
4	DOOR ASSEMBLY
5	GEN WB55X10247
6	GEN WB55X10248
7	GEN WB06X10190
8	LATCH – WHITE
9	LATCH SPRING
10	DOOR ASSEMBLY E
11	GEN WB06X10183
12	GEN WB06X10062
13	ASSY WIRE HARNESS-A
15	GEN WB09X0308
16	GEN WB27X10282
17	ASSY PCB-MAIN
18	GEN WB36X0953
19	GEN WB07X10233
20	GEN WB03X10064
22	WB24X829 GE Oven Microwave Secondary Micro Switch
23	SWITCH
24	LATCH – BODY
25	SWITCH – LEVER
26	WB06X10186 GE Oven Door Lever
27	GEN WB06X10187
28	GEN WB36X10002
29	THERMOSTAT-MAGNETRON
30	WB27X10516 GE Oven Magnetron Assembly
31	POWER CORD ASSEMBLY
32	BRACKET H.V.C
33	CAPACITOR-H.V
34	TRANSFORMER HIGH VOLTAGE
35	COVER MAG TUBE
36	GEN WB06X10189
37	GEN WB06X0540
38	MOTOR, T/T
39	GEN WB27X10075
41	WB27X10928 GE Oven Line Fuse
42	WB27X1160 GE Microwave High Voltage Diode
43	GEN WB06X10050
48	FAN MOTOR ASS'Y
9999	GEN 49-40074
9999	GEN 31-20924
