JE1660WB01 0

Products

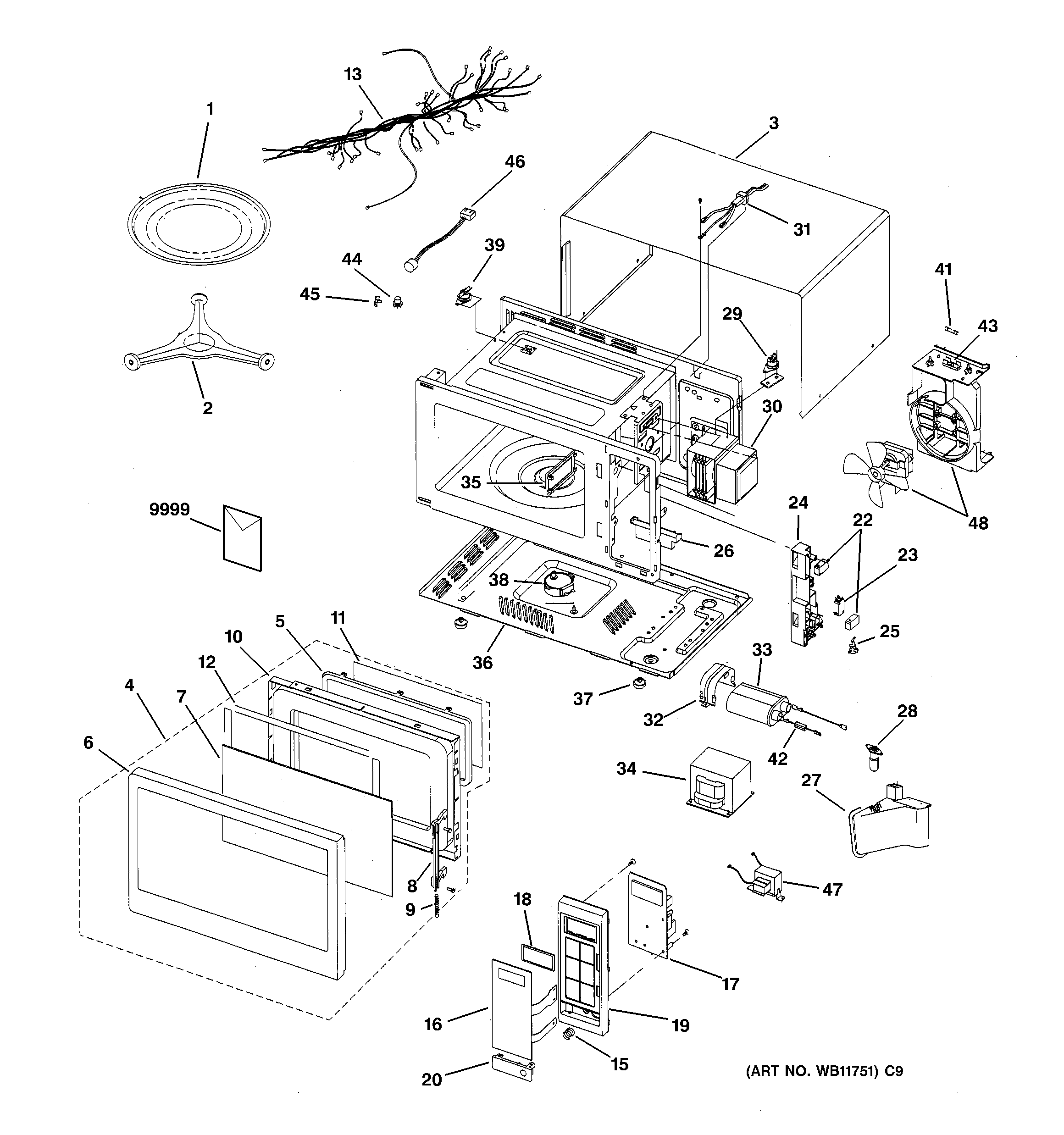

Position	Product
1	WB49X690 GE Oven Glass Tray
2	ROLLER GUIDE ASSY
3	OUTER PANEL
4	GEN WB55X10256
5	GEN WB55X10247
6	GEN WB55X10257
7	GEN WB06X10190
8	LATCH – WHITE
9	LATCH SPRING
10	DOOR ASSEMBLY E
11	GEN WB06X10183
12	GEN WB06X10062
13	ASSY WIRE HARNESS-A
15	GEN WB09X0308
16	GEN WB55X10258
17	SMARTBOARD
18	GEN WB36X0953
19	GEN WB07X10233
20	GEN WB03X10064
22	WB24X829 GE Oven Microwave Secondary Micro Switch
23	SWITCH
24	LATCH – BODY
25	SWITCH – LEVER
26	WB06X10186 GE Oven Door Lever
27	GEN WB06X10187
28	GEN WB36X10002
29	THERMOSTAT-MAGNETRON
30	WB27X10516 GE Oven Magnetron Assembly
31	POWER CORD ASSEMBLY
32	BRACKET H.V.C
33	CAPACITOR-H.V
34	TRANSFORMER HIGH VOLTAGE
35	COVER MAG TUBE
36	GEN WB06X10189
37	GEN WB06X0540
38	MOTOR, T/T
39	GEN WB27X10075
41	WB27X10928 GE Oven Line Fuse
42	WB27X1160 GE Microwave High Voltage Diode
43	GEN WB06X10050
44	WB27X1170 GE Oven Gas Sensor
45	WB6X549 GE Oven Holder Sensor A02
46	GEN WB18X10083
47	GEN WB20X10004
48	FAN MOTOR ASS'Y
9999	GEN 31-20925
9999	GEN 49-40075
