JE3510PRW 03 – DOOR/DRAWER

JE3510PRW 03 – DOOR/DRAWER

Written by

in

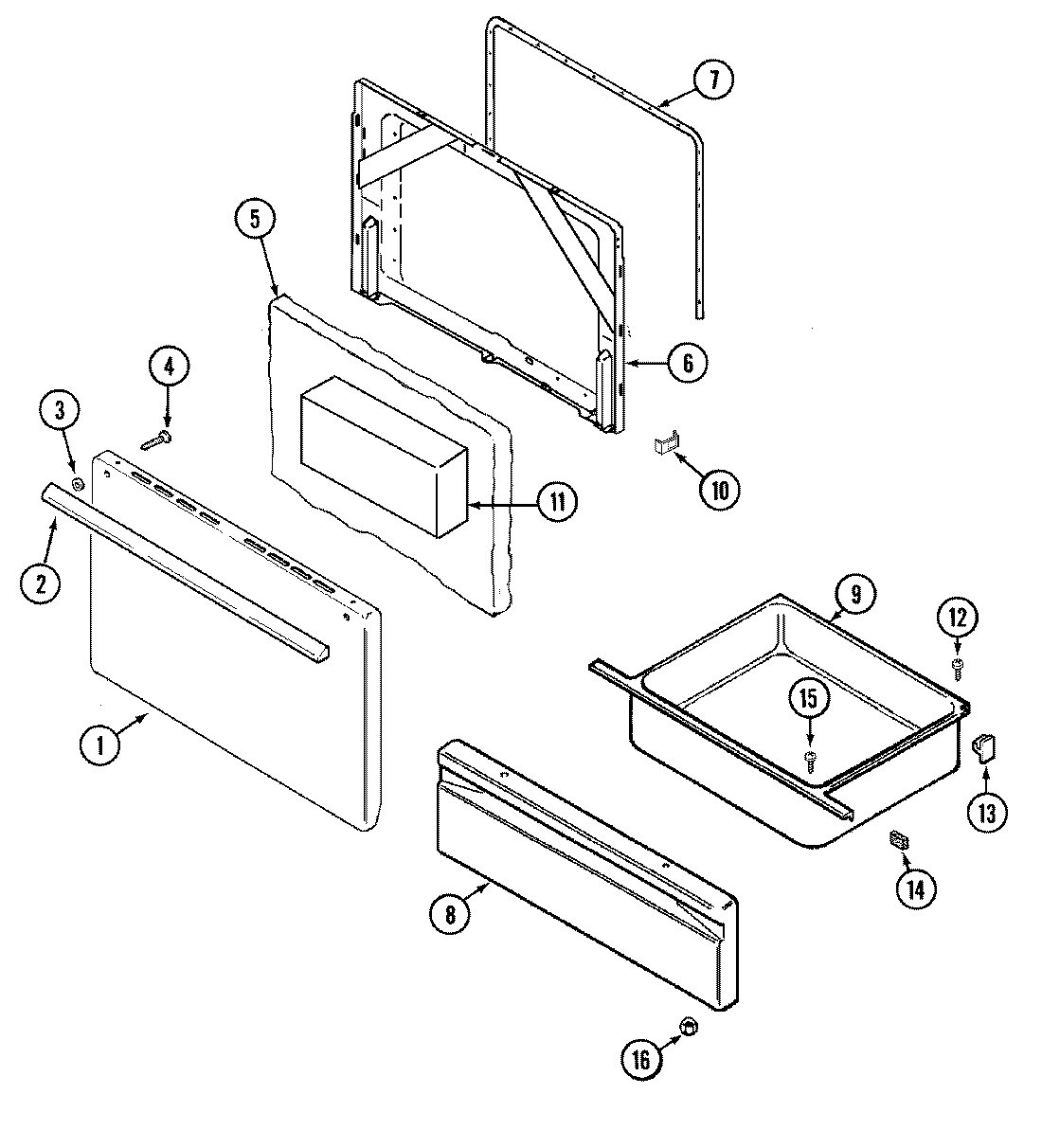

JE3510PRW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74002282
1	WP98008544 Whirlpool Screw Assembly
2	WP2411F013-70 Whirlpool Door Handle
3	MAY 8010P084-60
4	WP3387230 Whirlpool Screw
5	MAY 4804F050-60
6	MAY 74002396
7	MAY 7212P034-60
8	MAY 2416F039-62
9	MAY 3405F019-80
10	CLIP, DOOR
11	MAY 4804F028-60
13	WP8004P026-60 Whirlpool Support
14	MAY 7208P011-60
15	MAY 74001280
16	WPW10131078 Whirlpool Nut Assembly
