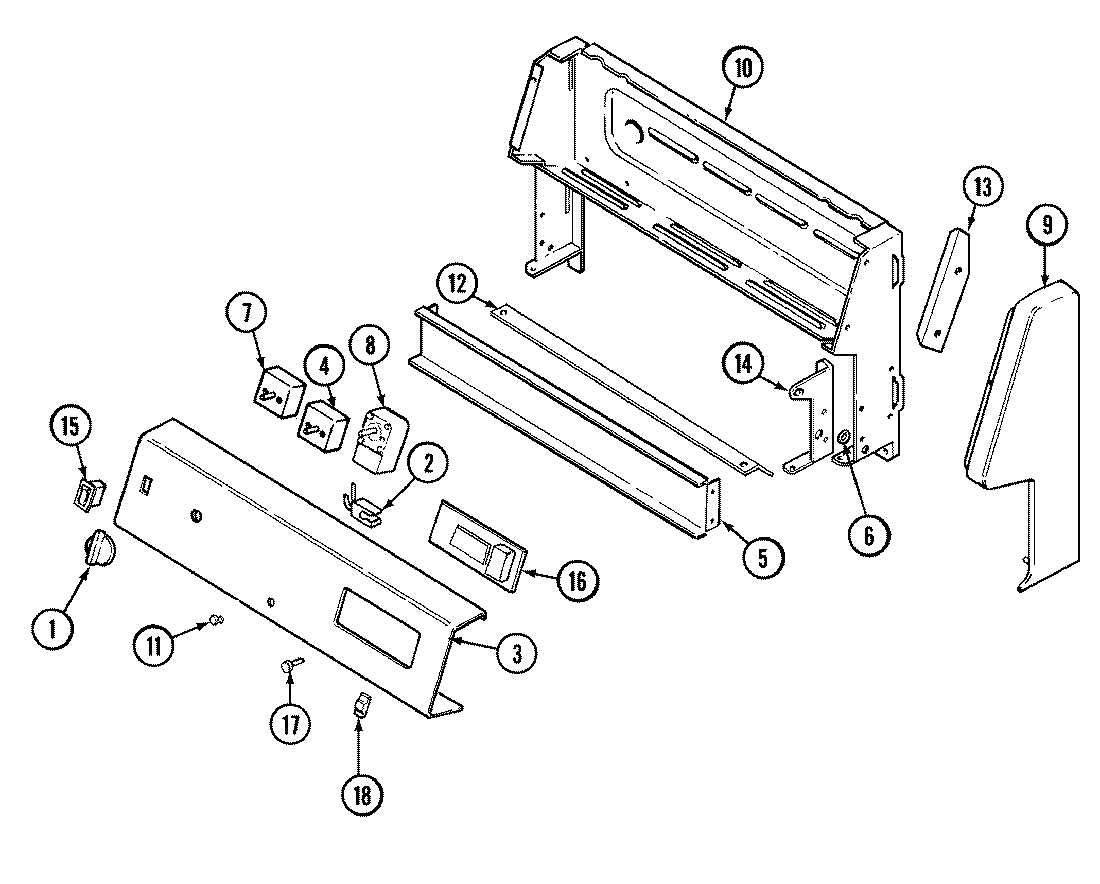

JE3521XRW 02 – CONTROL PANEL

JE3521XRW 02 – CONTROL PANEL

Written by

in

JE3521XRW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 7731P082-60
2W10852510 Whirlpool Indicator Light
3MAY 74002509
3MAY 7118P013-60
4WP7403P255-60 Whirlpool Selector Switch
5MAY 3802F088-51
6MAY 7103P129-60
7WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP7403P239-60 Whirlpool Oven Switch
7SCREW
8WP7404P105-60 Whirlpool Thermostat
9WP98008545 Whirlpool Screw
9MAY 7726P096-60
9MAY 7726P052-60
9MAY 7726P051-60
9MAY 7726P095-60
9MAY 7101P317-60
10MAY 74002162
11W11690131 Whirlpool Light Lens
12MAY 3604F201-80
13MAY 3807F450-45
13MAY 3807F449-45
14SCREW (8BX3/8-NI)
14MAY 3418D097-60
14MAY 3418D098-60
157403P067-60 Whirlpool Light Switch
16MAY 7602P104-60
16MAY 7101P293-60
17MAY 7711P468-60
18MAY 7711P469-60
19MAY 74001013
19MAY 5170D118-60
20MAY 74002469
21MAY 16000326
