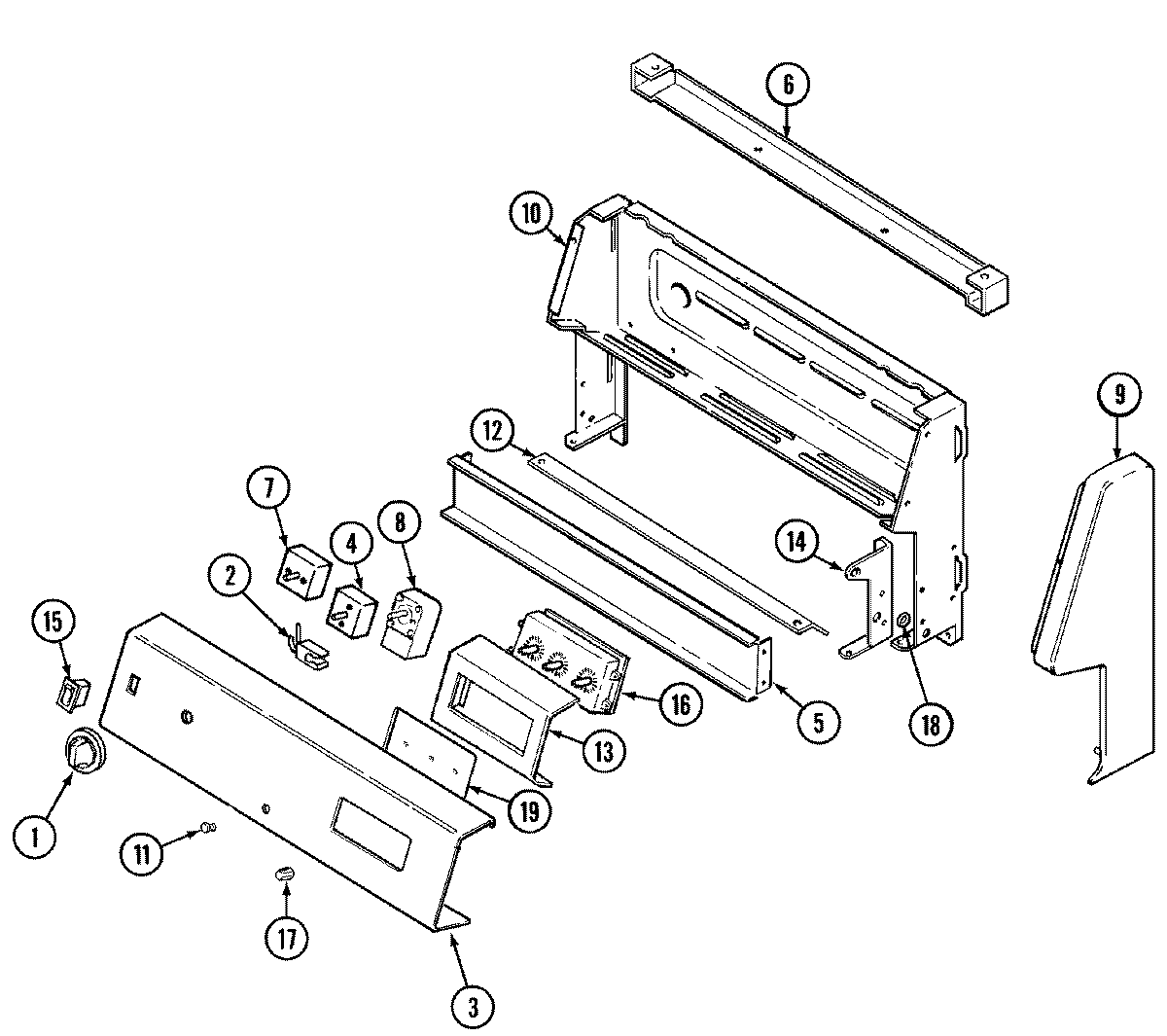

JE3842VRV 02 – CONTROL PANEL

Products

Position	Product
1	WP74003611 Whirlpool Oven White Knob
2	W10852510 Whirlpool Indicator Light
3	MAY 74003031
4	MAY 7403P342-60
5	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
5	MAY 3802F087-51
6	MAY 4001F064-51
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	SCREW
8	MAY 7404P100-60
9	MAY 74002338
9	MAY 7726P075-60
9	MAY 7726P076-60
9	MAY 74002339
10	MAY 74002162
11	W11690131 Whirlpool Light Lens
12	MAY 3604F201-80
13	MAY 3801F317-45
13	MAY 7101P348-60
14	SCREW (8BX3/8-NI)
14	MAY 3418D098-60
14	MAY 3418D097-60
15	MAY 7403P314-60
16	MAY 7601P193-60
17	MAY 7711P419-60
18	WP3195558 Whirlpool Nut
19	MAY 7902P109-60
19	MAY 7201P056-60
20	MAY 5125A321-60
20	MAY 5170D148-60
21	MAY 74002476
22	MAY 16000326
