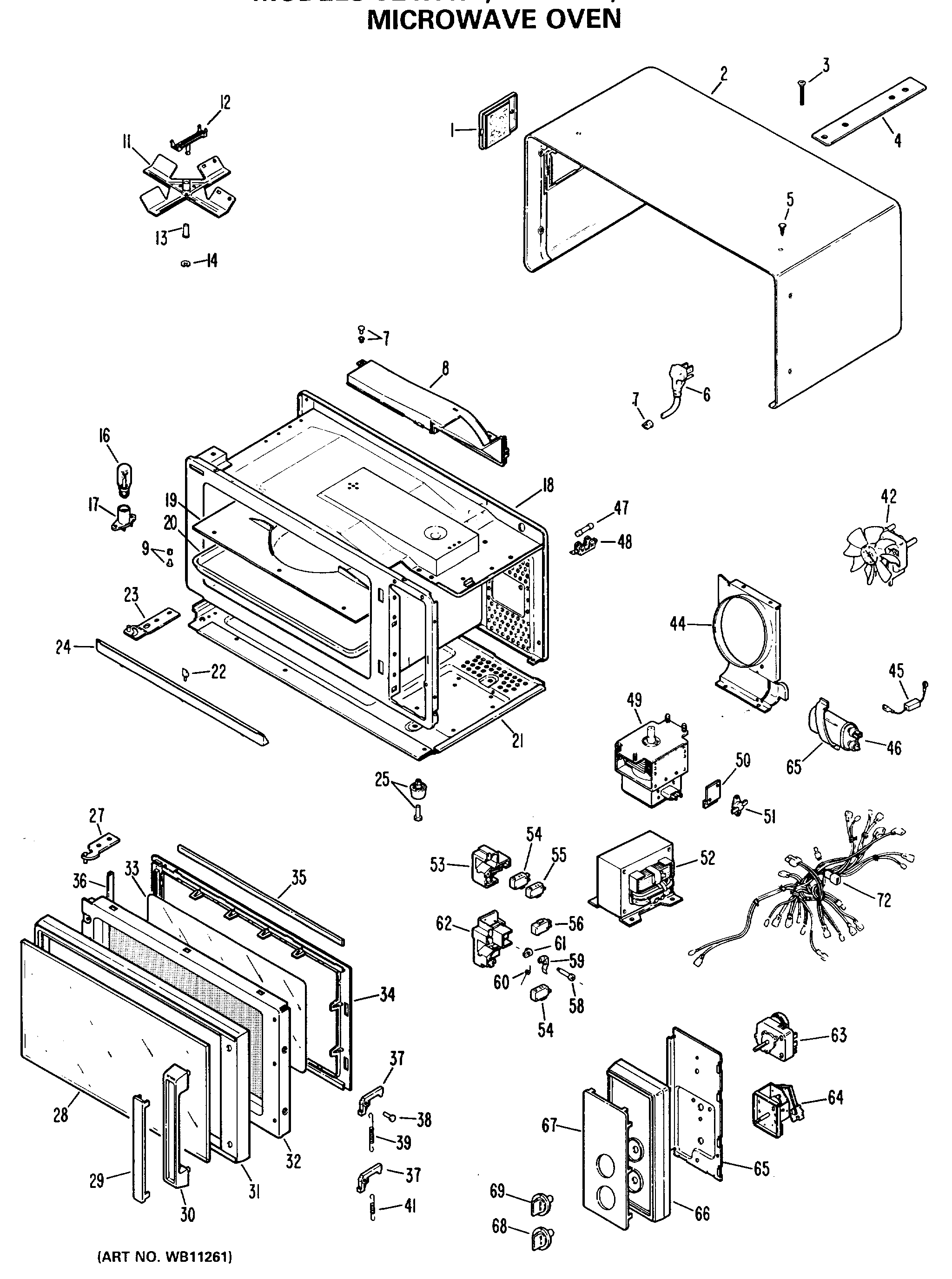

JE47A02 MICROWAVE OVEN

Products

Position	Product
1	GEN WB56X1839
2	GEN WB56X1754
4	GEN WB2X10127
5	PLUG BUTTON
6	CORD-POWER SUPPLY
7	BUSHING-POWER CORD
8	COVER-AIR
9	GEN WB02X7566
11	STIRRER BLADE ASSEMBLY
12	SHAFT-STIRRER
13	SPACER-STIRRER
14	GEN WB01X0651
16	GEN WB02X4611
17	GEN WB2X10128
17	GEN WB08X0275
19	COVER-STIRRER
20	TRAY-COOKING
21	GEN WB56X1755
22	CLIP-STOPPER
23	HINGE-LOWER
24	STOPPER-TRAY
25	GEN WB02X9974
27	HINGE-LOWER
28	GEN WB55X0671
29	TRIM-HANDLE
30	GEN WB15X0271
31	GEN WB55X0565
32	CHOKE-DOOR
33	FILM-DOOR
34	FRAME-DOOR-INNER
35	FERRITE-TOP
35	FERRITE-BOTTOM
36	FERRITE-HINGE SIDE
36	FERRITE-HANDLE SIDE
37	GEN WB02X4622
38	PIN-HANDLE KEY
39	SPRING-KEY-UPPER
41	SPRING-KEY-LOWER
42	FAN MOTOR/BLADE ASSEMBLY
44	ORIFICE-FAN
45	WB27X1160 GE Microwave High Voltage Diode
46	GEN WB27X0331
47	GEN WB27X0027
48	FUSE HOLDER
49	GEN WB27X0335
49	BRACKET-MAGNETRON
50	BRACKET-THERMO SWITCH
51	GEN WB24X0410
52	TRANSFORMER-HV
53	GEN WB02X4629
54	WB24X829 GE Oven Microwave Secondary Micro Switch
56	SWITCH-MONITOR
59	GEN WB02X4261
60	GEN WB09X0199
61	GEN WB02X4260
61	SCREW-MOUNTING
62	GEN WB02X4259
65	BRACKET-CAPACITOR
72	GEN WB18X0282
72	GEN WB18X0285
401	CONTROL PANEL
402	GEN WB27X0423
403	GEN WB36X0740
404	GEN WB2X10125
406	GEN WB27X0395
407	GEN WB20X0096
32767	GEN 49-4978
32767	GEN 4-F0B6-01
